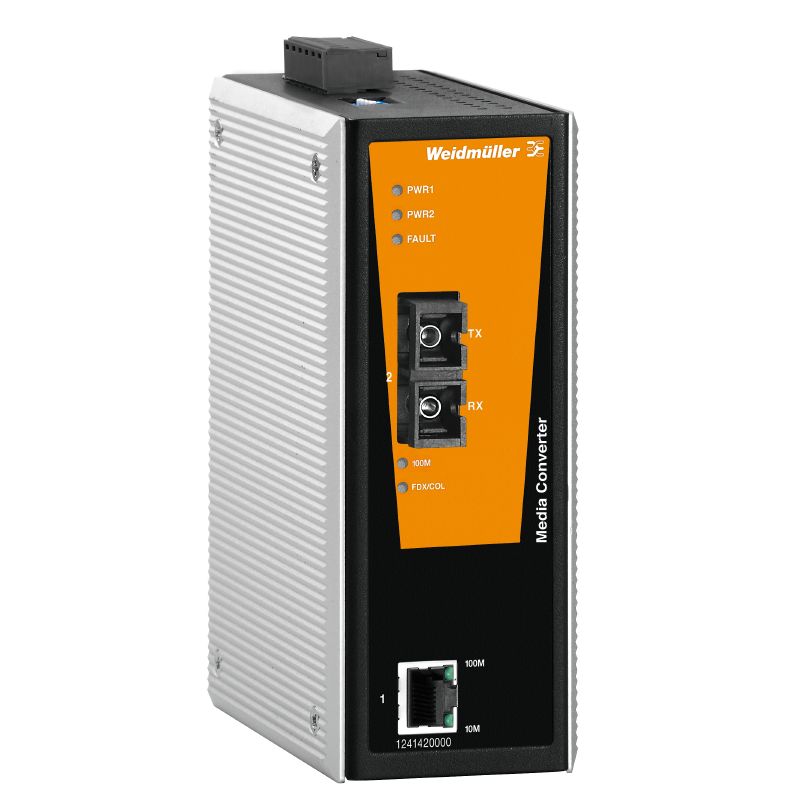

1241420000 - Fast Ethernet Media Converter, RJ45 & SC Single-mode Ports
1241420000 - Fast Ethernet Media Converter, RJ45 & SC Single-mode Ports
SKU: SKU: 1241420000 Download PDF
- 1241420000 - Fast Ethernet Media Converter, RJ45 & SC Single-mode Ports
- 1241420000 - Fast Ethernet Media Converter, RJ45 & SC Single-mode Ports
Couldn't load pickup availability
*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color
Description:
Elevate your networking capabilities with this efficient media converter designed for Fast Ethernet applications It features one RJ45 port alongside a single SC single-mode port, ensuring seamless connectivity This device operates optimally in temperatures ranging from 0 °C to 60 °C, making it suitable for various environments With dimensions of 105 mm in depth, 135 mm in height, and 536 mm in width, it is compact yet powerful.
Weighing in at 765 g, this converter securely fits into your setup while providing reliable performance.
Features and Benefits:
•Supports 100 Mbps transmission rate.
•Includes 1 relay output with a current capacity of 1 A at 24 V DC.
•SC-Duplex connector type.
•Redundant power supply inputs.
•Four LED indicators for monitoring.
•Fast Ethernet speed.
•DIN rail mounting type.
•Metal housing providing IP30 protection.
Specifications:
| Operating temperature (max) | 60 °C |
| Operating temperature (min) | 0 °C |
| Storage temperature (max) | 85 °C |
| Storage temperature (min) | -40 °C |
| Current consumption (12 V) | 0.32 A |
| Current consumption (24 V) | 0.16 A |
| Overload current protection | 1.1 A |
| Reverse polarity protection | Available |
| Voltage supply range (min) | 12 V |
| Voltage supply range (max) | 45 V |
| Transmission distance (typical) | 40 km |
| Link-budget | 29 dB |
| MTBF (hours) | 401,000 h |
| EMC standards | ['EN 55032', 'EN 55024', 'IEC 61000-4-11', 'CISPR 32', 'FCC Part 15 Subpart B Class A', 'IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV'] |
| Fibre optic transceiver characteristics | {'Wavelength TX (min)': '1,280 nm', 'Wavelength TX (max)': '1,340 nm', 'Wavelength RX (min)': '1,100 nm', 'Wavelength RX (max)': '1,600 nm', 'Receive power (min)': '-34 dBm', 'Receive power (max)': '-3 dBm', 'Transmission power (min)': '-5 dBm', 'Transmission power (max)': '0 dBm'} |
