Description:

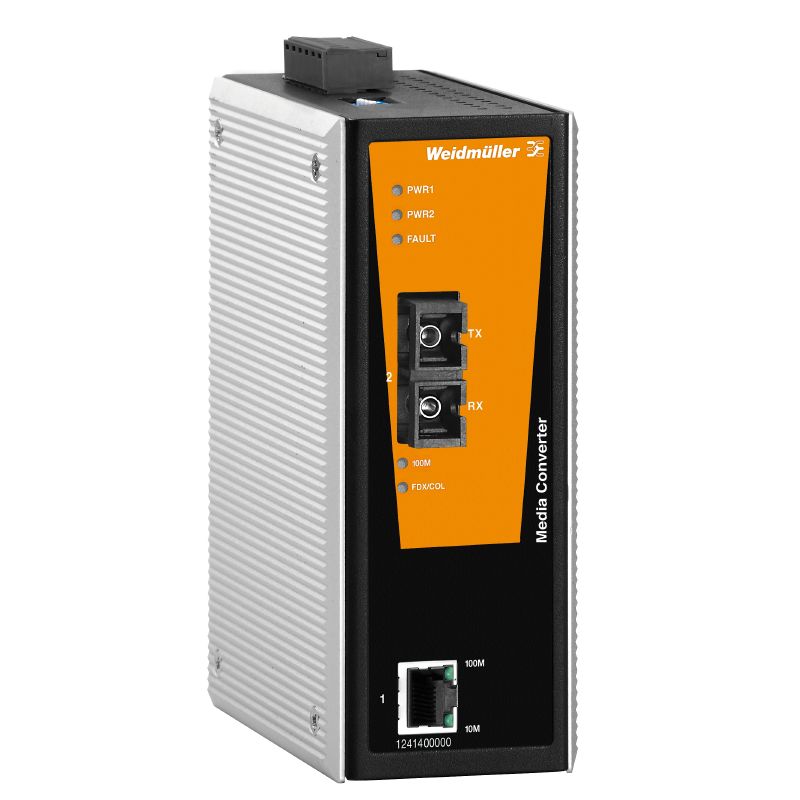

Optimize your network connectivity with this efficient media converter, specially engineered for Fast Ethernet applications It features an RJ45 port alongside an SC multimode port, making it versatile for various setups Built to function in temperature conditions ranging from 0 °C to 60 °C, this device is IP30 rated for added protection Its robust metal casing is designed for DIN rail mounting, providing a space-saving solution.
Furthermore, this converter adheres to RoHS standards and boasts multiple safety and EMC certifications, ensuring reliability in your network operations.
Features and Benefits:
•Compliant with RoHS.
•Operates in a temperature range from 0 °C to 60 °C.
•Includes one RJ45 and one SC multimode port.
•Supports Fast Ethernet speeds.
•DIN rail mountable.
•Metal housing for durability.
Specifications:
| Order No. | 1241400000 |
| Dimensions | {'Depth': '105 mm', 'Height': '135 mm', 'Width': '53.6 mm'} |
| Storage temperature | -40 °C to 85 °C |
| Operating temperature | 0 °C to 60 °C |
| Humidity | 5 to 95% (non-condensing) |
| Transmission rate | 100 Mbps |
| Transceiver type | Multimode |
| Connector type | SC-Duplex |
| Transmission distance | 5 km |
| Wavelength TX min | 1260 nm |
| Wavelength TX max | 1360 nm |
| Wavelength RX min | 1100 nm |
| Wavelength RX max | 1600 nm |
| Receive power min | -32 dBm |
| Receive power max | -3 dBm |
| Transmission power min | -20 dBm |
| Transmission power max | -10 dBm |
| Link-budget | 12 dB |
| MTBF | 401,000 h |
| Power supply | {'Voltage': '24 V DC', 'Current': '0.32 A'} |
| Housing main material | metal |
| Protection degree | IP30 |
