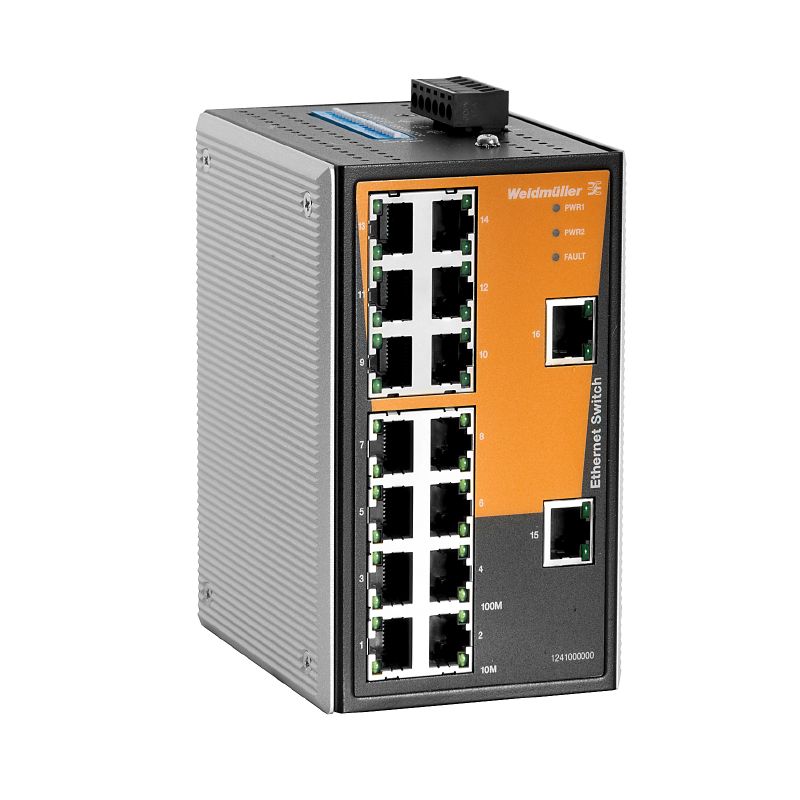

1241000000 - 16-Port Unmanaged Network Switch, Metal Housing, DIN Rail Mounted
1241000000 - 16-Port Unmanaged Network Switch, Metal Housing, DIN Rail Mounted
SKU: SKU: 1241000000 Download PDF
- 1241000000 - 16-Port Unmanaged Network Switch, Metal Housing, DIN Rail Mounted
- 1241000000 - 16-Port Unmanaged Network Switch, Metal Housing, DIN Rail Mounted
Couldn't load pickup availability
Description:
Introducing the IE-SW-VL16-16TX unmanaged network switch, featuring 16 RJ45 ports optimized for Fast Ethernet connections This robust device operates efficiently in temperatures ranging from 0 °C to 60 °C It adheres to ROHS guidelines and is certified by UL (E230683, E223527) for safety and reliability With an impressive Minimum Time Between Failures (MTBF) of 257,000 hours, it promises long-lasting performance.
Housed in a durable metal casing and designed for DIN rail mounting, this switch is also equipped with IP30 protection Plus, it meets various EMC standards for excellent environmental compliance, making it a reliable choice for your networking needs.
Features and Benefits:
•Compliant with ROHS and UL standards.
•MTBF of 257,000 hours.
•IP30 protection degree.
•Unmanaged switch with Fast Ethernet capability.
•DIP switch function for port surveillance.
•Broadcast storm protection.
•LED indicators for power and fault monitoring.
Specifications:
| Number of ports | 16x RJ45 |
| Depth | 105 mm |
| Height | 135 mm |
| Width | 80.5 mm |
| Net weight | 1,140 g |
| Operating temperature | 0 °C to 60 °C |
| Storage temperature | -40 °C to 85 °C |
| Current consumption | 0.27 A at 24 V |
| Supply voltage | 12/24/48 V DC |
| Overload current protection | 1.6 A |
| Protection degree | IP30 |
| Bandwidth backplane | 3.2 Gbit/s |
| Packet buffer size | 1.25 Mbit |
| Housing main material | metal |
| Technology | Data switching |
| Flow control | IEEE 802.3x flow control |
