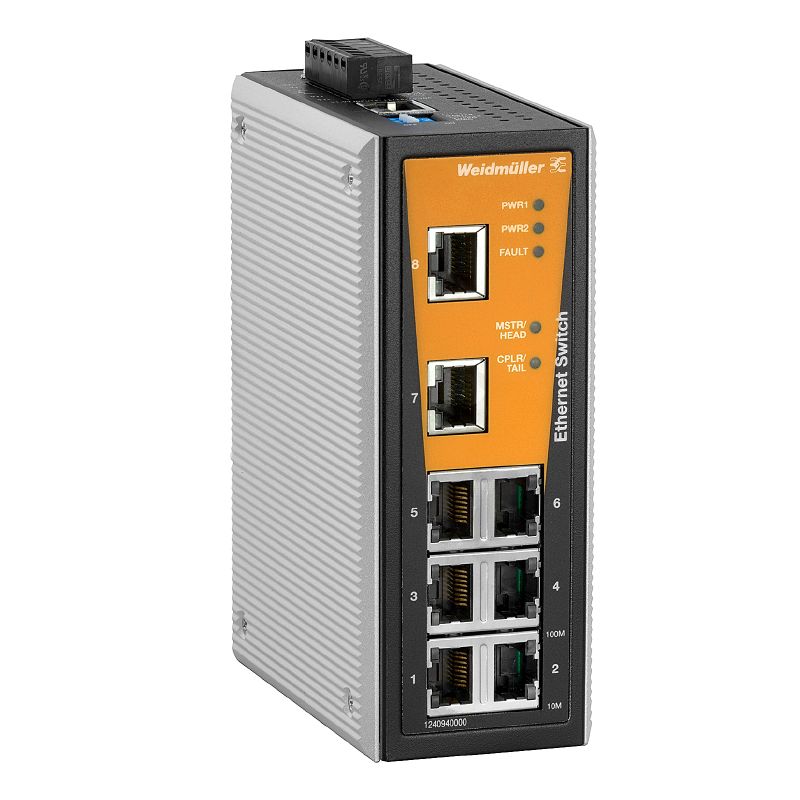

1240940000 - Managed 8-Port Fast Ethernet Switch for Extreme Conditions
1240940000 - Managed 8-Port Fast Ethernet Switch for Extreme Conditions
SKU: SKU: 1240940000 Download PDF
- 1240940000 - Managed 8-Port Fast Ethernet Switch for Extreme Conditions
- 1240940000 - Managed 8-Port Fast Ethernet Switch for Extreme Conditions
Couldn't load pickup availability
Description:
Discover reliable connectivity with this managed network switch, designed for efficiency with its 8 RJ45 ports that support Fast Ethernet This product complies with ROHS standards, ensuring environmentally-friendly performance It operates effectively across a wide temperature range from -40 °C to 75 °C, adaptable to various conditions Additionally, with certifications such as cULus, it demonstrates exceptional environmental compliance.
Enhanced with features for redundancy and management, it also offers VLAN support and SNMP functionality for optimal network administration.
Features and Benefits:
•8x RJ45 ports with auto negotiation for 10/100BaseT(X).
•Turbo-Ring network redundancy with recovery time under 20 ms.
•Supports various environmental conditions, operating temperatures, and humidity levels.
•Configurable via web browser and offers multiple management capabilities like SNMP.
•Alarm contact and relay output for current detection.
•Industrial protocol support including PROFINET and EtherNet/IP.
Specifications:
| Depth | 105 mm |
| Height | 135 mm |
| Width | 53.6 mm |
| Net weight | 890 g |
| Operating temperature | -40 °C to 75 °C |
| Storage temperature | -40 °C to 85 °C |
| Supply voltage | 12/24/48 V DC |
| Current consumption | 0.26 A at 24 V |
| EMC standards | EN 55032, EN 55024, CISPR 32 |
| Protection degree | IP30 |
| Data switching | Store and Forward |
| VLAN-ID max | 4094 |
| VLAN-ID min | 1 |
| Switch type | managed |
