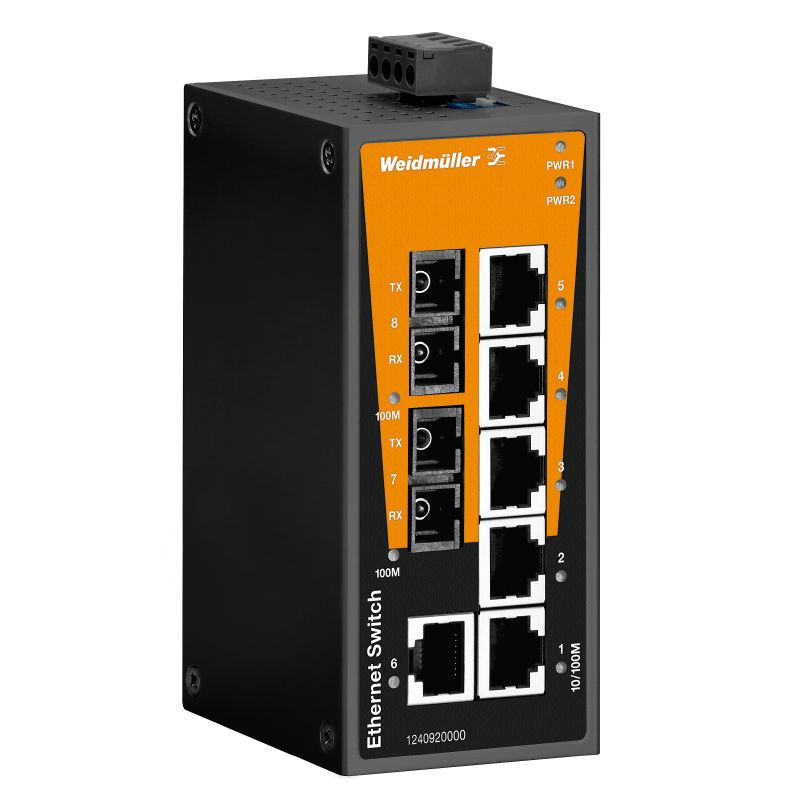

1240920000 - 6-Port Unmanaged Network Switch with Fast Ethernet & Fiber Connections
1240920000 - 6-Port Unmanaged Network Switch with Fast Ethernet & Fiber Connections
SKU: SKU: 1240920000 Download PDF
- 1240920000 - 6-Port Unmanaged Network Switch with Fast Ethernet & Fiber Connections
- 1240920000 - 6-Port Unmanaged Network Switch with Fast Ethernet & Fiber Connections
Couldn't load pickup availability
*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color
Description:
This unmanaged network switch is equipped with fast Ethernet functionality, featuring six RJ45 ports along with two SC multi-mode fiber connections With an IP30 rating, it provides reliable performance in various environments, capable of withstanding extreme temperatures ranging from -40 °C to 75 °C Perfect for enhancing your network infrastructure with robust connectivity options.
Features and Benefits:
•Compliant with RoHS regulations.
•Supports a transmission rate of 100 Mbps.
•Operating temperature range of -40 °C to 75 °C.
•Includes a DIP switch for enabling/disabling broadcast storm protection.
•LED indicators for power and connectivity status.
Specifications:
| Depth | 70 mm |
| Height | 115 mm |
| Width | 50 mm |
| Net weight | 275 g |
| Operating temperature, max. | 75 °C |
| Operating temperature, min. | -40 °C |
| Storage temperature, max. | 85 °C |
| Storage temperature, min. | -40 °C |
| Fibre-optic ports | 100BaseFX ports (SC connector) |
| Power supply | 12/24/48 V DC |
| Current consumption | 0.22 A at 24 V |
| Protection degree | IP30 |
| Data switching | Store and Forward |
| MTBF | According to Telcordia (Bellcore), 2,428,212 h |
