1240890000 - 4-Port Unmanaged Network Switch for Fast Ethernet and Fiber
1240890000 - 4-Port Unmanaged Network Switch for Fast Ethernet and Fiber
SKU: SKU: 1240890000 Download PDF
- 1240890000 - 4-Port Unmanaged Network Switch for Fast Ethernet and Fiber
- 1240890000 - 4-Port Unmanaged Network Switch for Fast Ethernet and Fiber
Couldn't load pickup availability
*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color
Description:

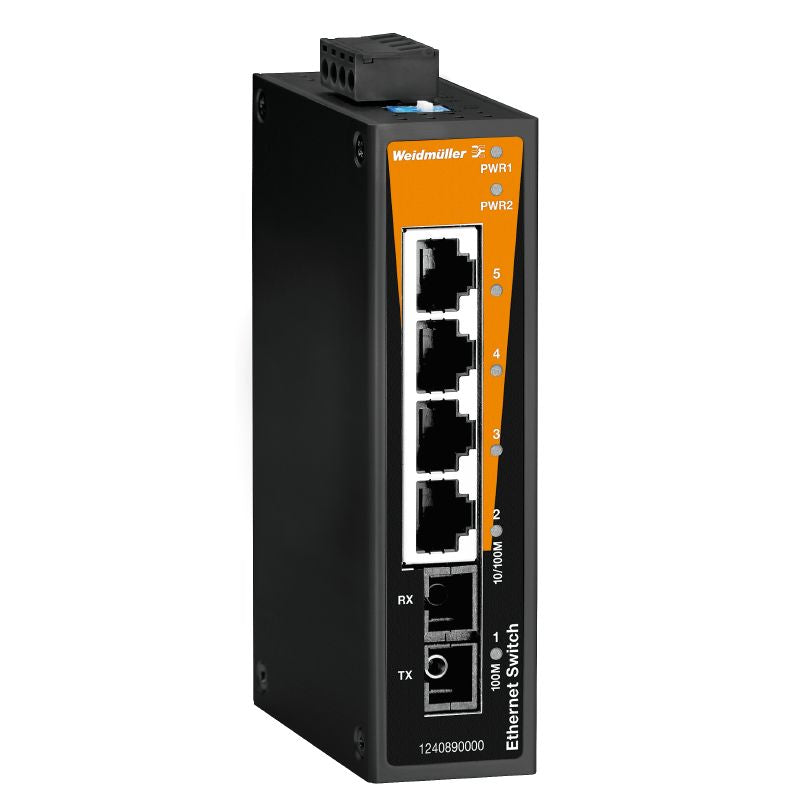

Introducing a reliable unmanaged network switch geared for Fast Ethernet connectivity, equipped with 4 RJ45 ports and an additional SC Multi-mode fiber port This device operates seamlessly within a temperature range of -10 °C to 60 °C, making it versatile for various environments It adheres to RoHS compliance and boasts cULus approvals, satisfying essential EMC standards—ideal for industrial applications.
Features and Benefits:
•Compact design with dimensions of 70 mm depth, 115 mm height, and 30 mm width.
•Capable of operating in a wide temperature range from -40 °C to 85 °C for storage and -10 °C to 60 °C for operation.
•Equipped with broadcast storm protection and quality of service (QoS) capabilities.
•Manufactured with an aluminum housing and rated at IP30 for environmental protection.
Specifications:
| Depth | 70 mm |
| Height | 115 mm |
| Width | 30 mm |
| Net weight | 175 g |
| Operating temperature | -10 °C...60 °C |
| Storage temperature | -40 °C...85 °C |
| Transmission rate | 100 Mbps |
| Transceiver type | Multimode |
| Number of ports | 4 x RJ45, 1 * SC Multi-mode |
| Supply voltage | 12/24/48 V DC |
| MAC table size | 2 K |
| Packet buffer size | 768 kBit |
| Protection degree | IP30 |
| Bandwidth backplane | 1 Gbit/s |
