1221010000 - IP67 Multimode Flange Connector, 37mm Deep, -40°C to 70°C

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

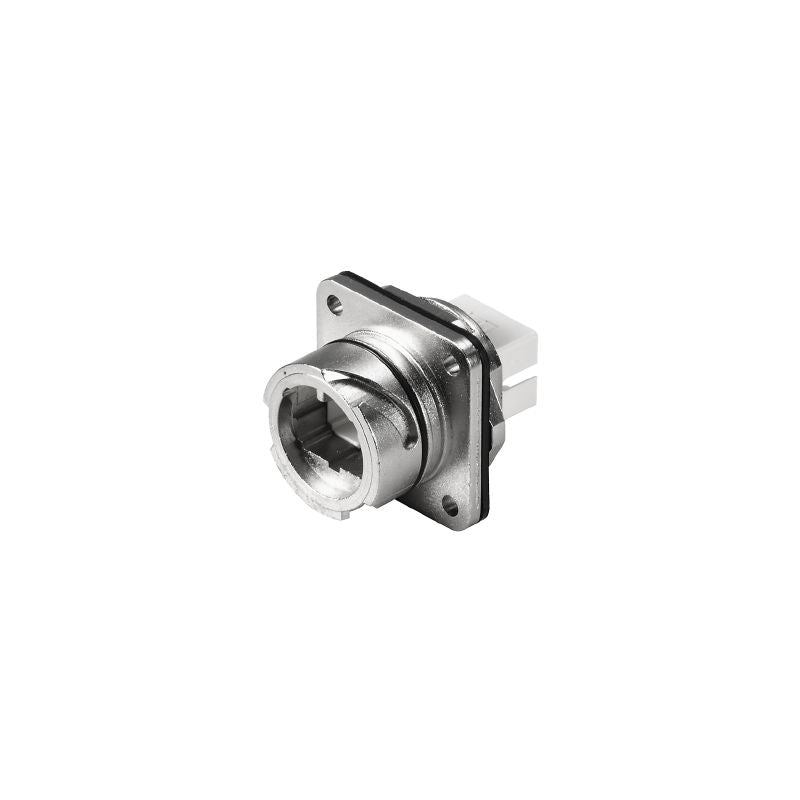

Introducing the IE-BS-V01M-SCRJ-MM, a versatile multimode POF connector designed for robust performance in challenging environments Rated at IP67, this flange FO connector is built to withstand extreme temperatures, functioning efficiently between -40 °C and 70 °C Compact in size, it measures 37 mm in depth, 32 mm in height, and 32 mm in width, while weighing only 565 g Perfect for applications that require durability and reliability.

Features and Benefits:

•Compliant with RoHS exemption 6c.

•Insertion loss of ≤ 0.4 dB.

•Return loss (attenuation) of ≥ 30 dB.

•IP67 protection degree.

•Made from zinc diecast housing.

•500 plugging cycles.

Specifications:
