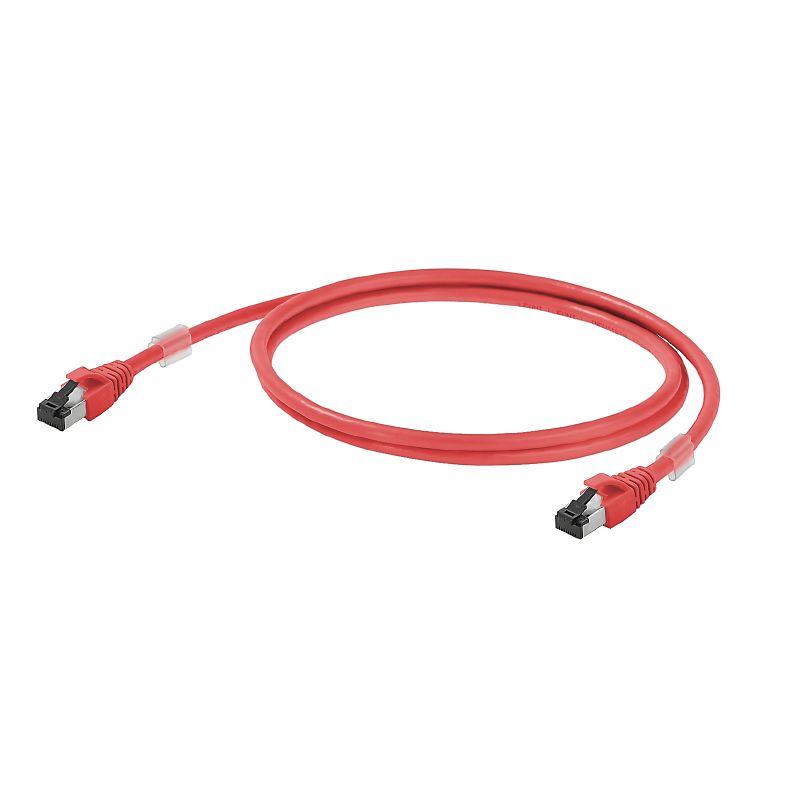

1166030020 - 2m Cat.6A RJ45 Patch Cable, LSZH Material

1166030020 - 2m Cat.6A RJ45 Patch Cable, LSZH Material

SKU: 1166030020   Download PDF

Select a Variant:
  • 1166030020 - 2m Cat.6A RJ45 Patch Cable, LSZH Material
Qty:
Now $8.87   Web pricing policy
BEFORE   $0.00 Now $8.87 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information Resources Reviews
Product Information

Description:

Introducing a 2-meter patch cable built to meet the RJ45 specifications for IP 20 This cable supports Cat6A performance over distances of up to 20 meters and conforms to Class EA standards as outlined in ISO/IEC 11801:2010 Crafted from LSZH materials, it combines safety with efficiency, making it an ideal choice for reliable networking solutions.

Features and Benefits:

    •Twisted pair arrangement for improved data integrity.

    •Shielding braid constructed from copper wiring.

    •Halogen-free design complies with IEC 60754-2.

    •Compatible with PoE and PoE+ according to IEEE 802.3at.

    •Low bending radius at four times cable diameter for flexibility.

    •Plug contains RJ45 male contacts which are shielded.

Specifications:

 Length 2 m
 Current-carrying capacity 1 A at 50 °C
 Operating voltage 50 V DC
 Operating voltage (UL rating) 30 V AC / 42.4 V DC
 Characteristic impedance 100 ± 15 Ω at 1–100 MHz
 Transmission rate 10 Gbit/s
 Resistance differential 5%
 Sheath diameter, max. 5.9 mm
 Sheath diameter, min. 5.5 mm
 Number of wires 8
 Capacity at 1 kHz 46 nF/km
 Coupling attenuation up to 1000 MHz 80 dB
 Delay skew 2.5 ns/100m
 Test voltage 2.5 kV / DC for 2 sec
