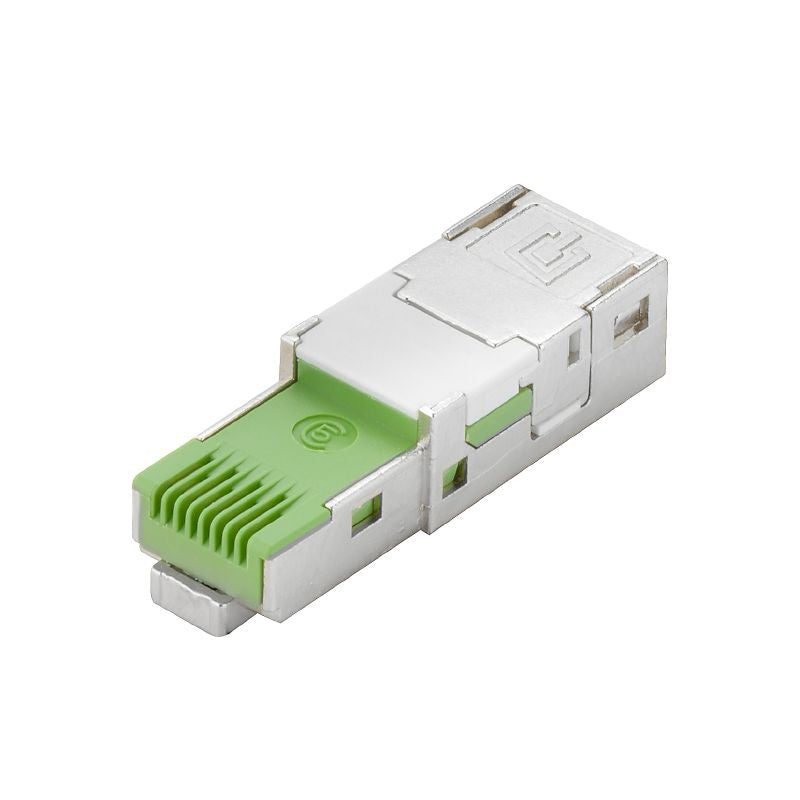

1132030000 - Tool-Free RJ45 Plug for PROFINET, RoHS & UL Certified (Pack of 10)

SKU: SKU: 1132030000 Download PDF

Variant:

1132030000 - Tool-Free RJ45 Plug for PROFINET, RoHS & UL Certified (Pack of 10)

Now $190.60

~~BEFORE $0.00~~ Now $190.60

Sold out

Web pricing policy Shipping calculated at checkout.

IN STOCK

Shipping Available

Free shipping on orders above $1000.* Only on standard purchases of cables and wires.

View full details

Product Information Resources Reviews

Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Experience hassle-free connectivity with our RJ45 plug insert, crafted for tool-free installation and optimized for PROFINET applications This insert meets essential safety and environmental standards, boasting RoHS compliance and UL certifications It operates efficiently across a wide temperature spectrum of -40 °C to 70 °C Weighing just 314 grams, it's engineered for both solid and flexible wiring connections, ensuring compatibility with various wiring standards.

Perfect for your networking needs, it combines practicality and reliability.

Features and Benefits:

•RoHS compliant.

•Can withstand 750 plugging cycles.

•IP67 protection degree with housing.

•360° all-round shielding.

•Used in PROFINET wiring systems.

•Compatible with RJ45 plug-in connectors.

Specifications:

Operating temperature	-40 °C...70 °C
Connection 1	RJ45
Connection 2	IDC
Insulation cross-section, min.	0.85 mm
Insulation cross-section, max.	1.6 mm
Category	Cat.5 (ISO/IEC 11801)
Contact surface	Gold over Nickel, Au ≥ 0.8 µm
Electrical properties	{'Contact resistance': '≤ 20 mΩ', 'Current-carrying capacity at 50 °C': '1 A', 'Dielectric strength, contact / contact': '≥ 1000 V AC/DC', 'Dielectric strength, contact / shield': '≥ 1500 V AC/DC', 'Insulation resistance': '500 MΩ', 'PoE / PoE+': 'conforming to IEEE 802.3at'}
Fire load	49 kJ
Plugging cycles	750
Ability to reconnect	≥ 10 cycles (for the same or larger cross-section)
Housing main material	Zinc diecast
Connection diameter, solid	0.4...0.64 mm
Conductor connection cross-section, solid (AWG)	AWG 24...AWG 22
Connection diameter, flexible	0.48...0.76 mm
Conductor connection cross-section, flexible (AWG)	AWG 26...AWG 22
