1062590000 - Durable IP67 Cable Gland with SCRJ Duplex for POF Applications (Pack of 10)

SKU: SKU: 1062590000 Download PDF

Select a Variant:

1062590000 - Durable IP67 Cable Gland with SCRJ Duplex for POF Applications (Pack of 10)

SET THE QTY:

Now $382.20 Web pricing policy

~~BEFORE $0.00~~ Now $382.20 Web pricing policy

Sold out

Shipping calculated at checkout.

IN STOCK
Shipping Available

Free shipping on orders above $1000. *Wires and cables only.

View full details

Product Information Resources Reviews

Product Information

Description:

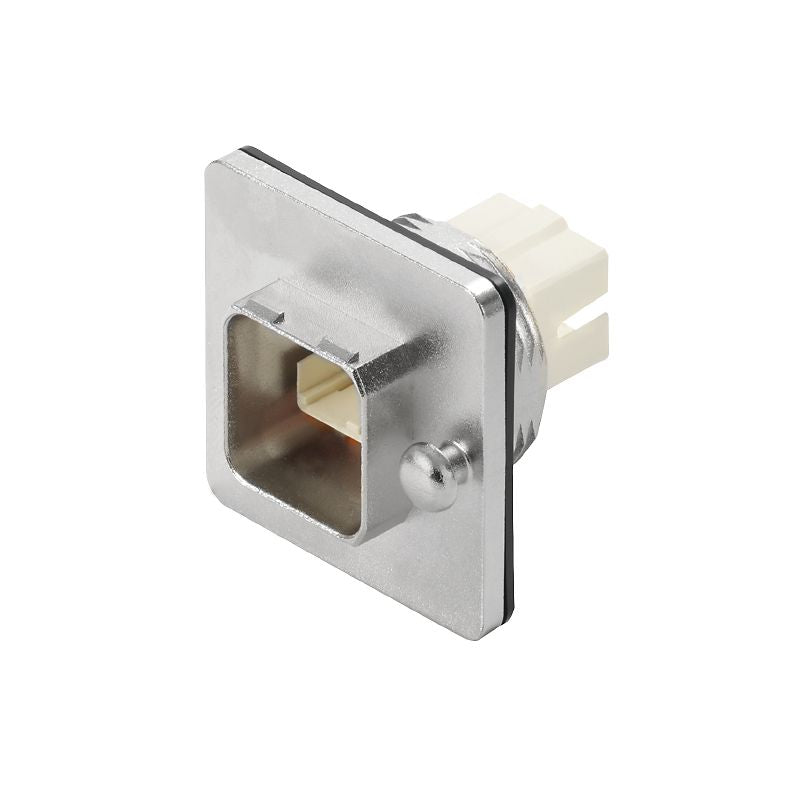

Introducing the Variant 14 central cable gland, specifically designed for multimode applications utilizing plastic optical fiber (POF) This model incorporates an SCRJ Duplex coupling for optimal multi-fiber connectivity on both ends, enhancing performance and reliability Crafted from robust zinc diecast material, it promises durability across a range of environments Additionally, with an IP67 protection rating, this cable gland is well-suited for use in challenging conditions, all while adhering to RoHS standards and exemption 6c for environmental compliance.

Perfect for applications requiring dependable and efficient optical connections.

Features and Benefits:

•Compliant with RoHS with specific exemption.

•Designed for multimode fiber connections.

•Durable zinc diecast housing.

•Protection degree IP67.

•Supports up to 500 plugging cycles.

•Insertion loss ≤ 0.4 dB.

•Return loss ≥ 30 dB.

Specifications:

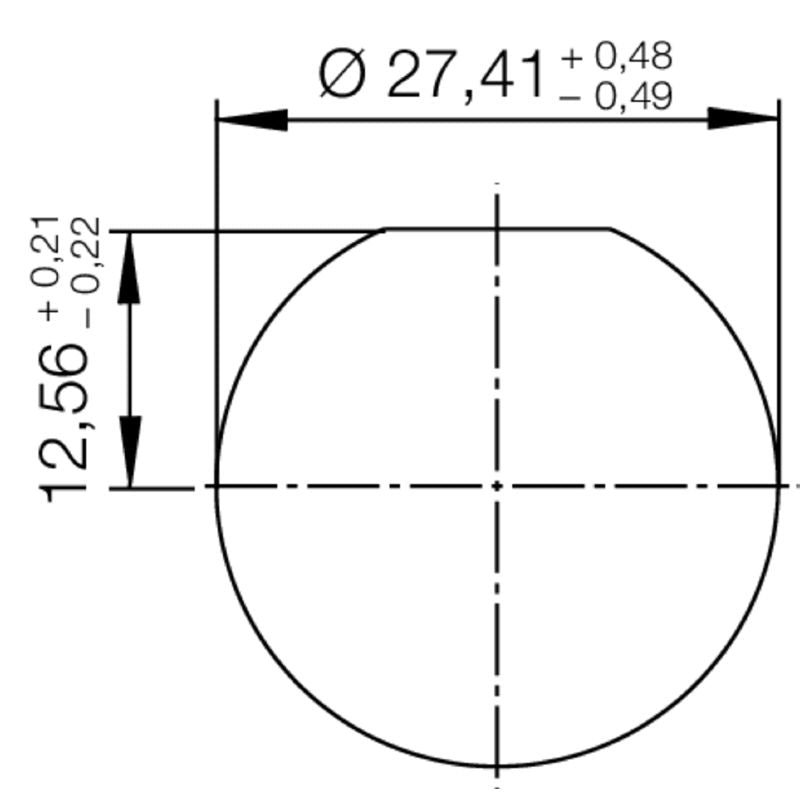

Dimensions	36.15 mm depth, 39.6 mm height, 39.6 mm width
Operating temperature	-40 °C to 70 °C
Connection 1	SCRJ
Connection 2	SCRJ
Fibre type	Multimode POF
cULus Certificate no.	E316369
Connector standard	IEC 61076-3-117 Var. 14, IEC 61754-24
ETIM classifications	{'ETIM 6.0': 'EC000752', 'ETIM 7.0': 'EC000752', 'ETIM 8.0': 'EC000752', 'ETIM 9.0': 'EC000752', 'ETIM 10.0': 'EC000752'}
ECLASS classifications	{'ECLASS 9.1': '19-17-01-16', 'ECLASS 10.0': '19-17-01-16', 'ECLASS 11.0': '19-17-01-16', 'ECLASS 12.0': '19-17-01-16', 'ECLASS 13.0': '19-17-01-16', 'ECLASS 14.0': '19-17-01-16', 'ECLASS 15.0': '19-17-01-16'}
