1059340030 - 3m M12 D-Coded System Cable, IP67 Rated, Cat.5

1059340030 - 3m M12 D-Coded System Cable, IP67 Rated, Cat.5

SKU: 1059340030   Download PDF

Select a Variant:
  • 1059340030 - 3m M12 D-Coded System Cable, IP67 Rated, Cat.5
Qty:
Now $79.60   Web pricing policy
BEFORE   $0.00 Now $79.60 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information Resources Reviews
Product Information

Description:

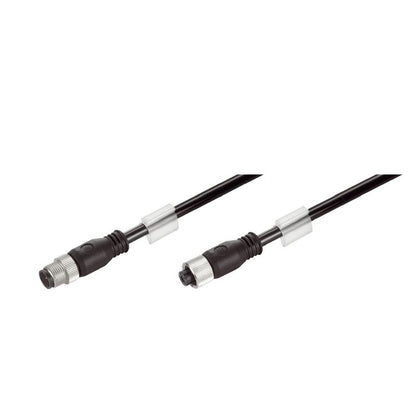

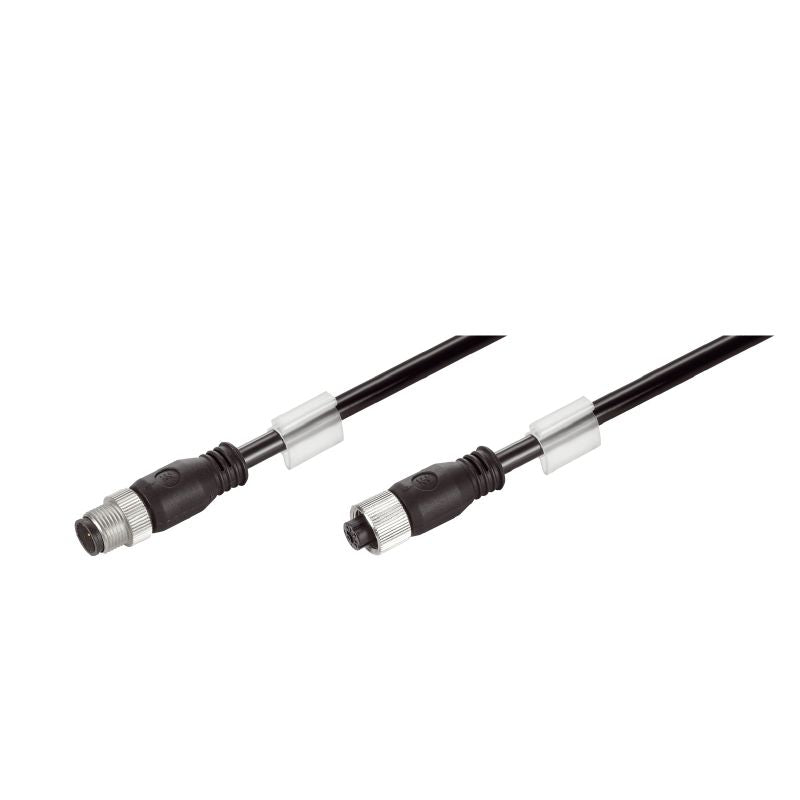

Optimize your connectivity with this 3-meter system cable, featuring a straight M12 D-coded socket and pin Built to IP 67 specifications, it is well-suited for a range of applications, while meeting the standards of both Cat5 (ISO/IEC 11801) and Cat5e (TIA T568-B) Its sturdy design ensures dependable operation in various environments, making it a reliable choice for your networking needs.

Features and Benefits:

    •IP 67 rated for protection against dust and water.

    •Compliant with RoHS and REACH standards.

    •Halogen-free and impervious to smoke.

Specifications:

 Length 3 m
 Connector standard IEC 61076-2-101

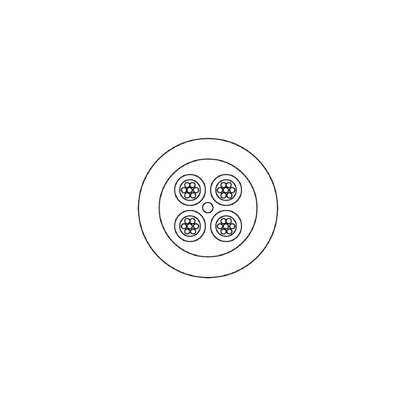

 Cross-section 2*2*AWG 22/7 - 2*2*0.36 mm²
 Insulation cross-section 1.95 mm
 Sheath diameter, max. 7.55 mm
 Sheath diameter, min. 6.95 mm
 Shielding SF/UTP
 Category Cat.5 (ISO/IEC 11801) / Cat.5e (TIA T568-B)
 Net weight 232.32 g
 Storage temperature -40 °C...90 °C
 Operating temperature -40 °C...90 °C
 Installation temperature -25 °C...90 °C
 Resistance to oils in accordance with EN 50306-3
 Resistance to spread of flame in accordance with IEC 60332-1-2
