1058270000 - Variant 14 Metal RJ45 IDC Module for Extreme Conditions (Pack of 10)

SKU: SKU: 1058270000 Download PDF

Select a Variant:

1058270000 - Variant 14 Metal RJ45 IDC Module for Extreme Conditions (Pack of 10)

SET THE QTY:

Now $344.30 Web pricing policy

~~BEFORE $0.00~~ Now $344.30 Web pricing policy

Sold out

Shipping calculated at checkout.

IN STOCK
Shipping Available

Free shipping on orders above $1000. *Wires and cables only.

View full details

Product Information Resources Reviews

Product Information

Description:

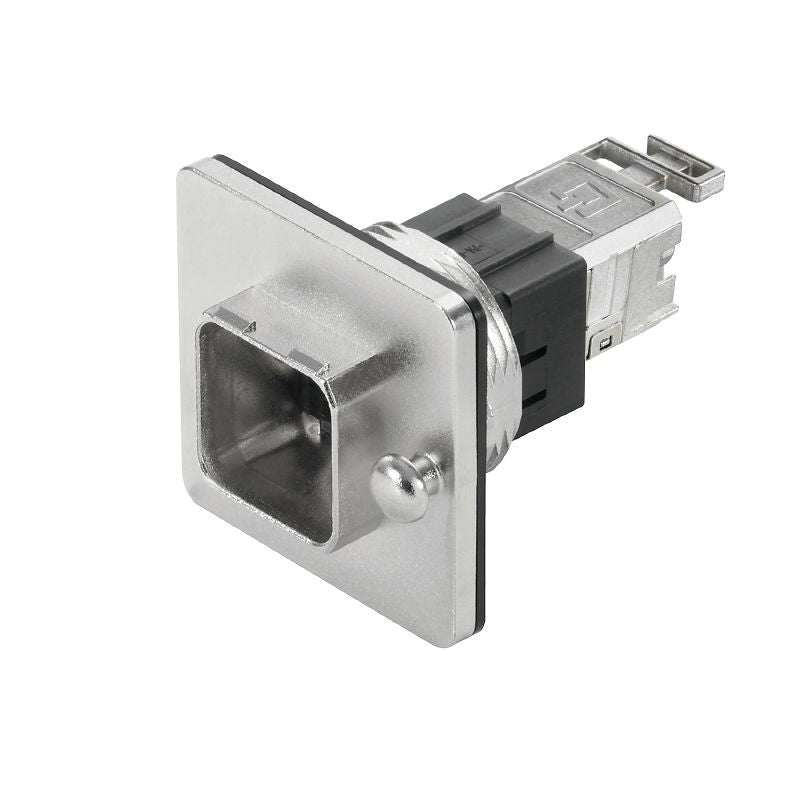

Discover this premium RJ45 IDC module, crafted with a robust Variant 14 metal design It comes equipped with a central locking flange and an RJ45 adapter, ensuring dependable performance for Cat6A / Class EA applications in line with ISO/IEC 11801:2010 specifications This module is engineered to thrive in extreme environments, boasting an operating temperature range of -40 °C to 70 °C Featuring RJ45 and IDC connections, it offers versatile application options.

The sealing material is made from NBR, while its sturdy housing is formed from zinc diecast, ensuring excellent functionality and adherence to international standards.

Features and Benefits:

•Compliant with RoHS exemptions.

•Protection degree of IP67.

•Capable of 750 plugging cycles.

•Compatible with PoE / PoE+ as per IEEE 802.3bt.

•Dielectric strength rated at ≥ 1000 V AC/DC for contact/contact and ≥ 1500 V AC/DC for contact/shield.

Specifications:

Connection 1	RJ45
Connection 2	IDC
Wiring	TIA-568A
Seal material	NBR
Housing main material	Zinc diecast
Insulation cross-section, max	1.6 mm
Category	Cat.6A / Class EA (ISO/IEC 11801 2010)
Contact surface	Gold over nickel
Connection diameter, solid	0.4...0.64 mm
Conductor connection cross-section, solid (AWG)	AWG 24...AWG 22
Connection diameter, flexible	0.48...0.76 mm
Conductor connection cross-section, flexible (AWG)	AWG 26...AWG 22
Sheath diameter, min	5 mm
Sheath diameter, max	10 mm
Type of mounting	Central cable gland
Shielding	360° all-round enclosure
Electrical properties	{'Dielectric strength, contact / contact': '≥ 1000 V AC/DC', 'Dielectric strength, contact / shield': '≥ 1500 V AC/DC'}
cULus Certificate number	E316369
Connector standard	IEC 61076-3-117 Var. 14
Classifications	{'ETIM': 'EC001121', 'ECLASS': '27-44-03-90'}
