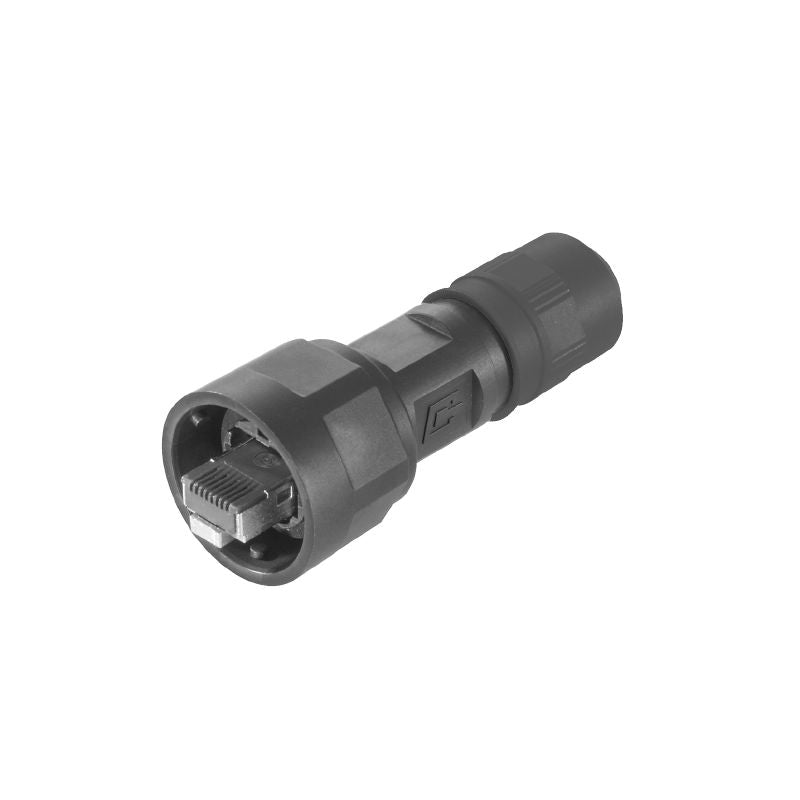

1012490000 - Tool-Free RJ45 Plug, Variant 1, Cat.6A Compliance (Pack of 10)

1012490000 - Tool-Free RJ45 Plug, Variant 1, Cat.6A Compliance (Pack of 10)

SKU: 1012490000   Download PDF

Select a Variant:
  • 1012490000 - Tool-Free RJ45 Plug, Variant 1, Cat.6A Compliance (Pack of 10)
Qty:
Now $384.40   Web pricing policy
BEFORE   $0.00 Now $384.40 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information Resources Reviews
Product Information

Description:

Introducing a hassle-free installation solution with this tool-free RJ45 plug Crafted from durable plastic, this variant is compliant with Cat6A / Class EA standards, ensuring high-performance networking as specified by ISO/IEC 11801 2010 Perfect for easy connectivity without the need for additional tools.

Features and Benefits:

    •Compliant with RoHS without exemptions.

    •Supports various connection types including RJ45 and IDC.

    •Has a black color for housing.

    •Made from PA UL 94 V0 material.

    •Features a 360° all-around enclosure for shielding.

    •IP67 protection degree for water and dust resistance.

    •Can withstand a maximum of 750 plugging cycles.

    •Ready for greater than 10 reconnections for equal or larger cross-sections.

    •Connection specifications accommodate varying conductor sizes.

    •Suitable for PROFINET installation as per application-specific communication cable facilities.

Specifications:

 Operating temperature -40 °C...70 °C
 Insulation cross-section, min. 0.85 mm
 Insulation cross-section, max. 1.6 mm
 Connection diameter, solid 0.4...0.64 mm
 Conductor connection cross-section, solid (AWG) AWG 24...AWG 22
 Connection diameter, flexible 0.48...0.76 mm
 Conductor connection cross-section, flexible (AWG) AWG 26...AWG 22
 Sheath diameter, min. 5 mm
 Sheath diameter, max. 10 mm
 Dielectric strength, contact / contact ≥ 1000 V AC/DC
 Dielectric strength, contact / shield ≥ 1500 V AC/DC
 MICE classification M M3
 MICE classification I I3
 MICE classification C C1
 MICE classification E E3
 Certificate no. (cULus) E316369
 Connector standard IEC 61076-3-106 Var. 1, IEC 60603-7-51
 ETIM classification EC001121
 ECLASS classification 27-44-03-90
