1010850250 - 25m M12 D-Code System Cable, IP67 Rated for Secure Connections

1010850250 - 25m M12 D-Code System Cable, IP67 Rated for Secure Connections

SKU: 1010850250   Download PDF

Select a Variant:
  • 1010850250 - 25m M12 D-Code System Cable, IP67 Rated for Secure Connections
Qty:
Now $331.56   Web pricing policy
BEFORE   $0.00 Now $331.56 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information Resources Reviews
Product Information

Description:

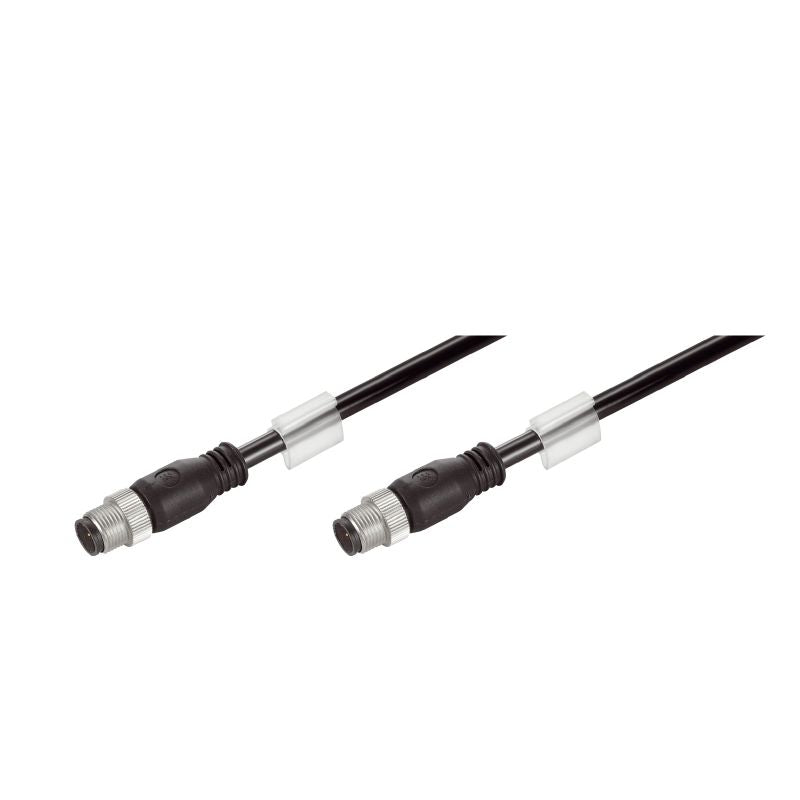

This M12 D-code system cable is crafted to meet IP 67 standards for superior protection With a generous length of 25 meters, it works seamlessly with Cat5 (ISO/IEC 11801) and Cat5e (TIA T568-B) specifications Constructed from Radox GKW S material, this cable can handle a wide range of operating temperatures, making it a versatile choice for your connectivity needs.

Features and Benefits:

    •Compliant with RoHS directive.

    •Halogen-free as per IEC standards.

    •Very good abrasion resistance.

    •Impervious to smoke according to specified standards.

Specifications:

 Length 25 m
 Sheath diameter, max. 7.55 mm
 Sheath diameter, min. 6.95 mm
 Cross-section 2*2*AWG 22/7 - 2*2*0.36 mm²
 Category Cat.5 (ISO/IEC 11801) / Cat.5e (TIA T568-B)
 M12 D-coded Plug, left male contact, straight, plastic, shielded
 M12 D-coded Plug, right male contact, straight, plastic, shielded
 Storage temperature -40 °C...90 °C
 Installation temperature -25 °C...90 °C
