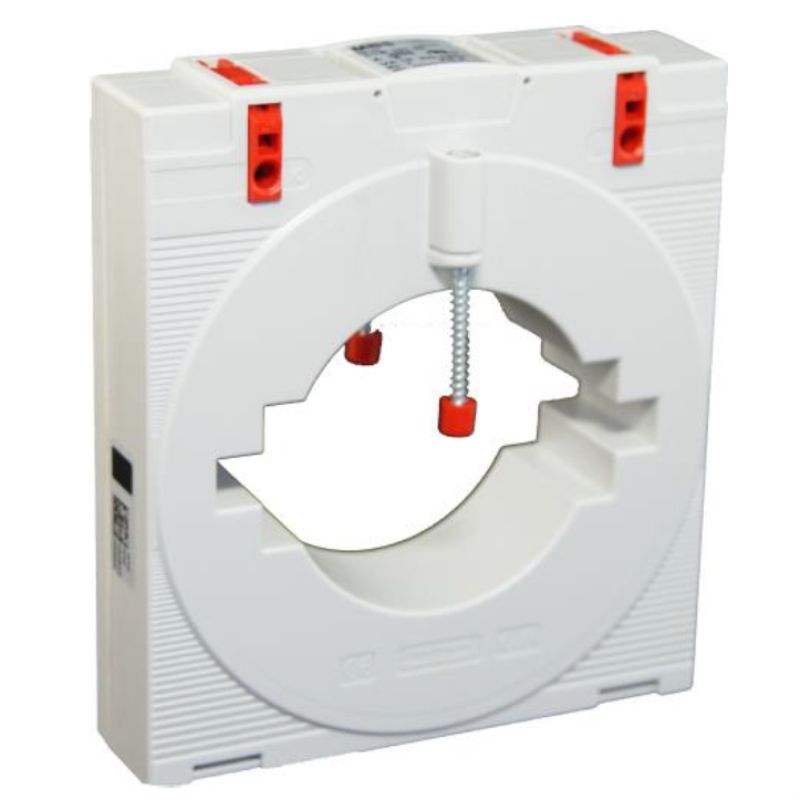

CMA-81-2000-5A-10VA-1 - 2000A Closed Current Transformer, 134mm x 120mm x 52mm

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

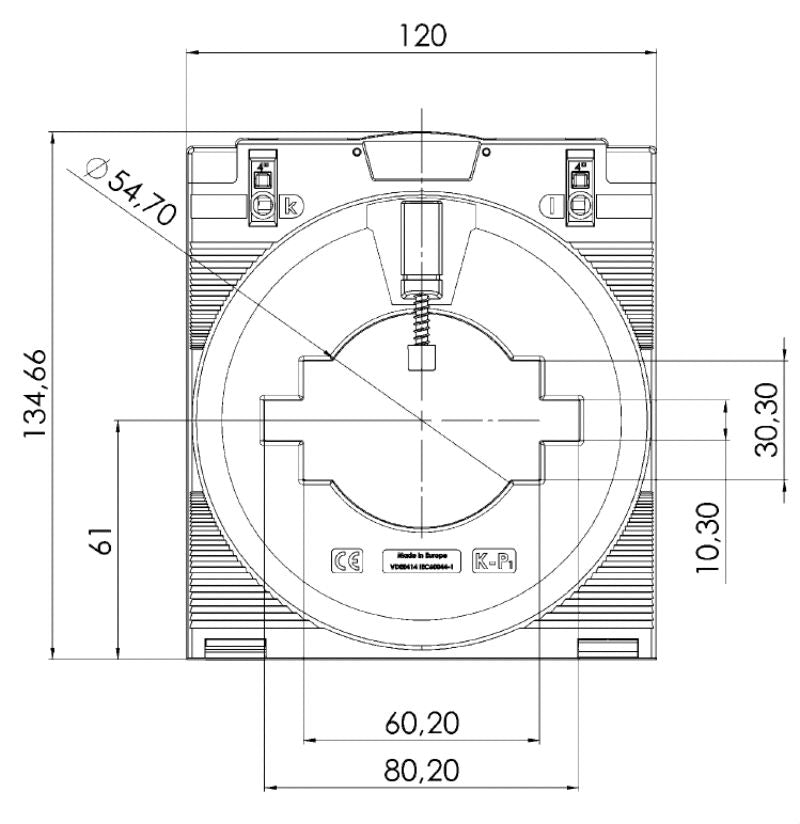

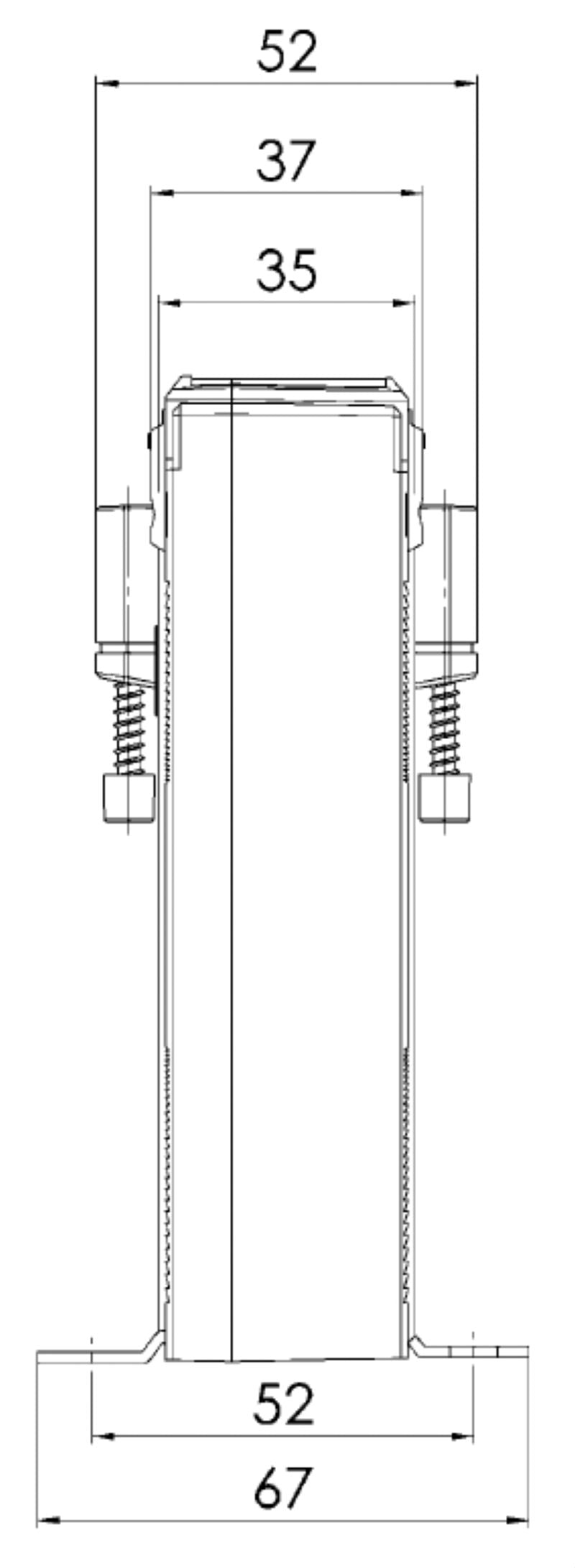

Introducing the CMA-81-2000-5A-10VA-1, a reliable closed current transformer designed for robust performance With a primary current capacity of 2000 A and a maximum secondary current of 5 A, this unit effectively manages a load of 10 VA while adhering to tolerance class 1 standards It meets RoHS compliance, ensuring it aligns with environmental regulations This transformer measures 134 mm in length, 120 mm in width, and 52 mm in depth, making it compact for various installations.

Designed for indoor applications, it boasts an insulation class of E and operates at a nominal frequency of 50 Hz Additionally, the transformer has an IP20 protection degree, providing suitable defense against solid objects Elevate your electrical projects with this dependable transformer.

Features and Benefits:

•Closed current transformer design.

•Compliant with RoHS standards.

•Designed for indoor usage.

•Diverse range of electrical attributes.

Specifications:
