Description:
Monitor high electrical currents effortlessly with the KCMA-28-300-1A-15VA-1 split-core current transformer Capable of measuring primary currents up to 300 A, this device offers a secondary output of 1 A along with a load capacity of 15 VA Featuring a tolerance class of 1, it is intended for indoor applications only The current transformer is fully compliant with RoHS regulations and contains no SVHC above 0.
1 wt% With an operating temperature range of -5 °C to 50 °C, it’s engineered for reliable performance in various environments.
Features and Benefits:
•Compliant with RoHS standards.
•Indoor installation only.
•Free from SVHC above 0.1 wt%.
Specifications:
| Primary current | 300 A |
| Secondary current | 0...1 A |
| Load | 1.5 VA |
| Tolerance class | 1 |

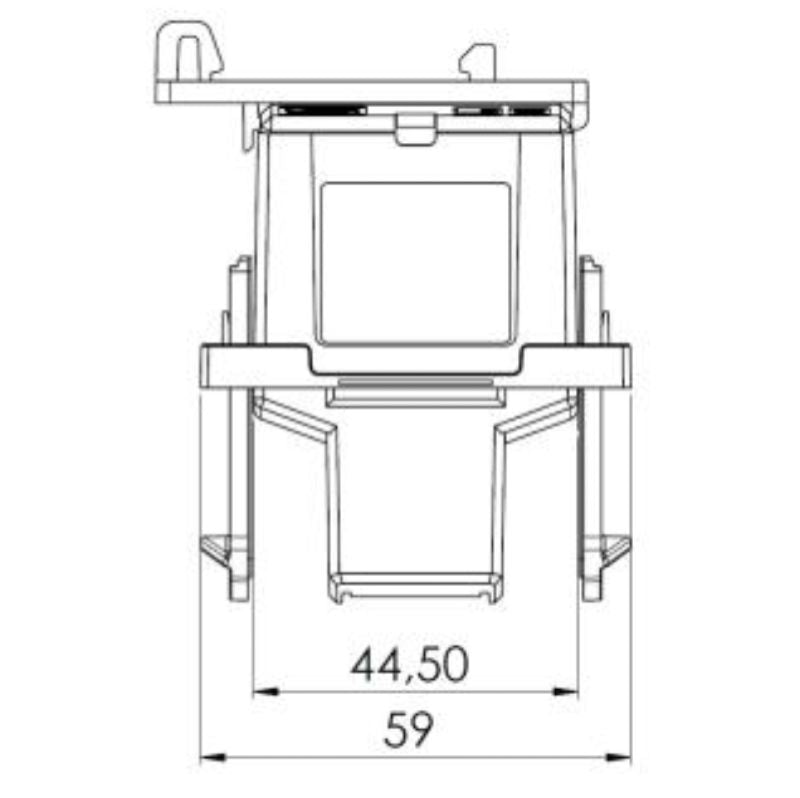

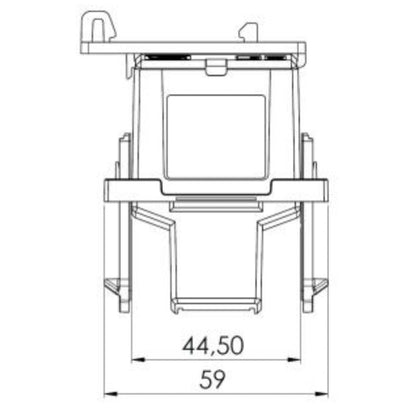

| Depth | 59 mm |

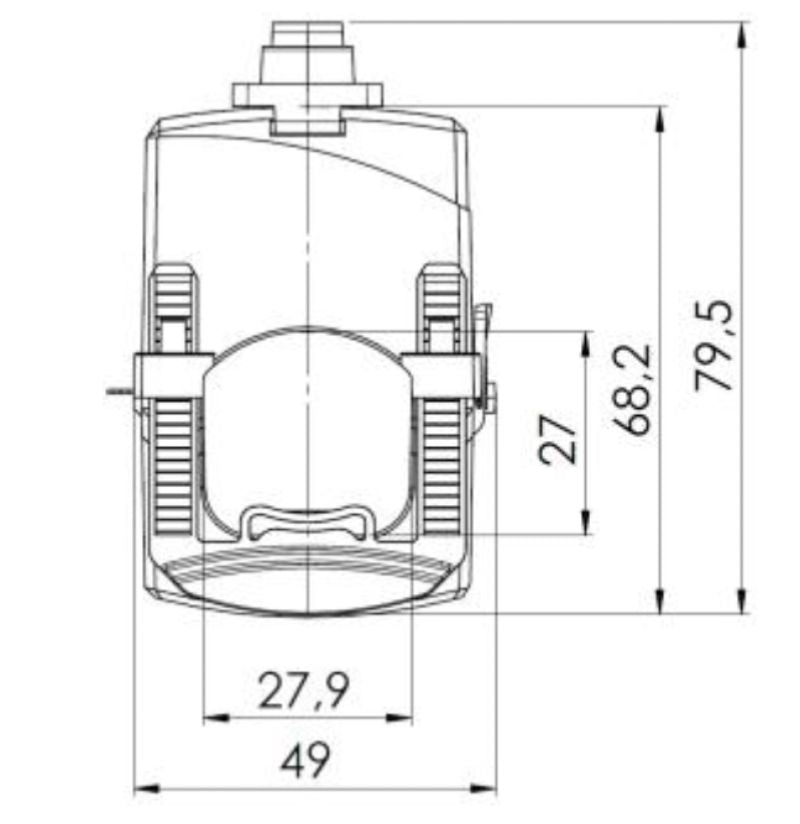

| Height | 79.5 mm |
| Width | 49 mm |
| Cable length | 2.5 m |
| Nominal frequency | 50 Hz |
| Protection degree | IP20 |
| Operating temperature | -5 °C...50 °C |
| Manufacturer | MBS AG |
