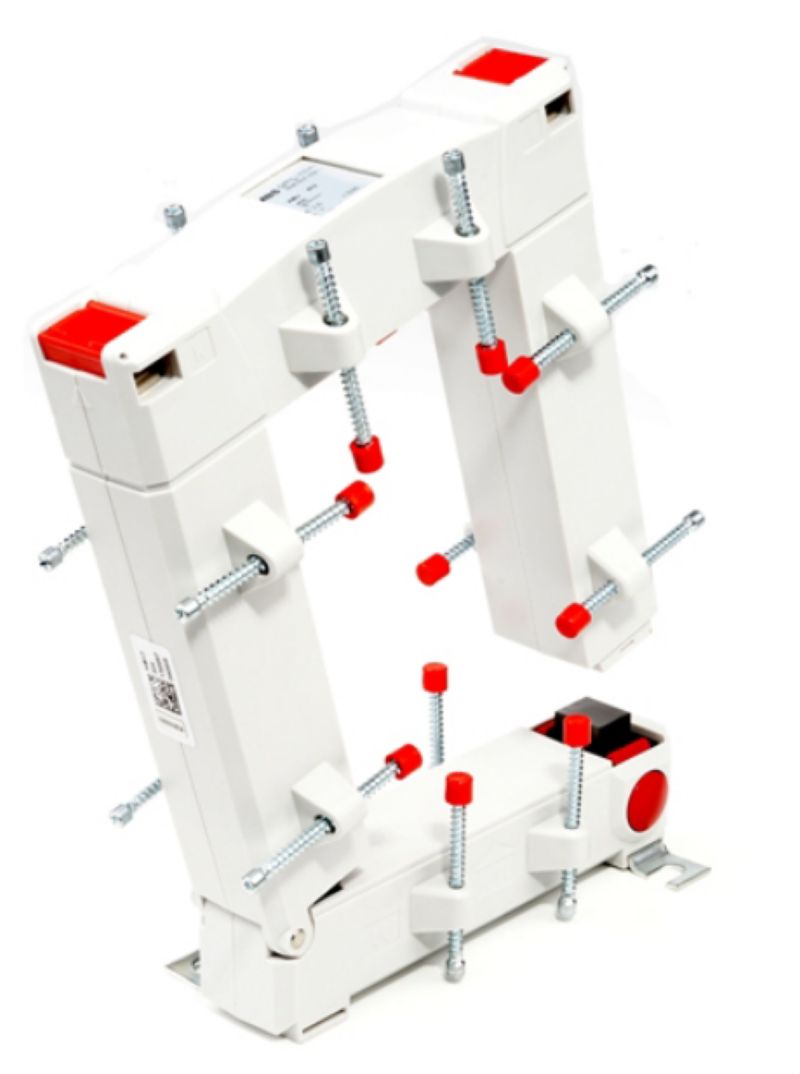

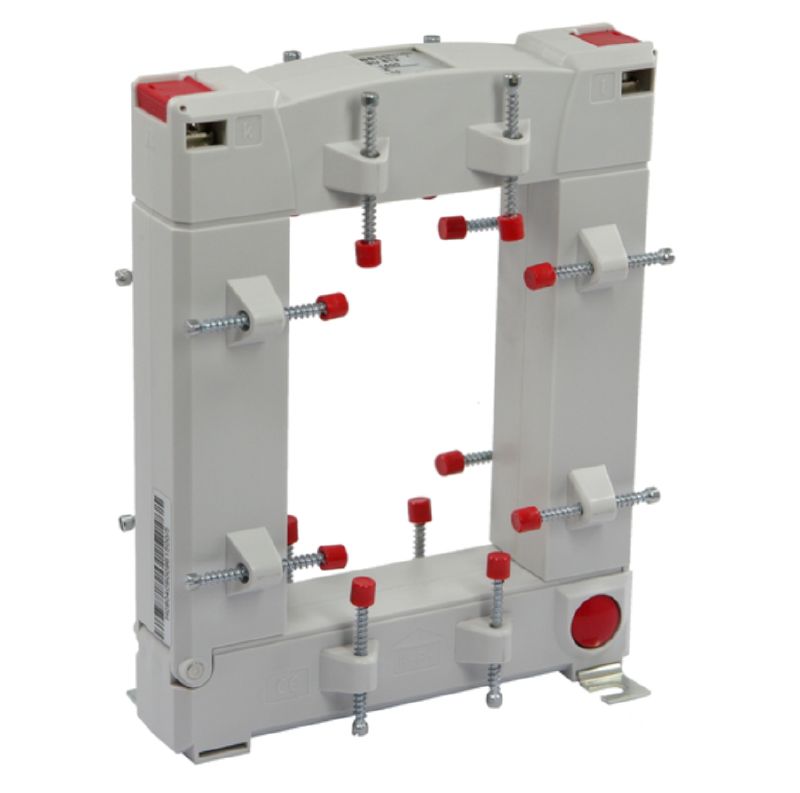

2753450000 - 1200A Split-Core Current Transformer, Tolerance Class 0.5

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing the KCMA-8-1200-5A-5VA-05, a split-core current transformer perfect for accurate current measurements Capable of handling a maximum primary current of 1200 A, this transformer offers a secondary current range of 0 to 5 A and features a load capacity of 5 VA It meets RoHS compliance standards and is intended for indoor applications With a tolerance class of 05, it operates efficiently in temperatures between -5 °C and 40 °C.

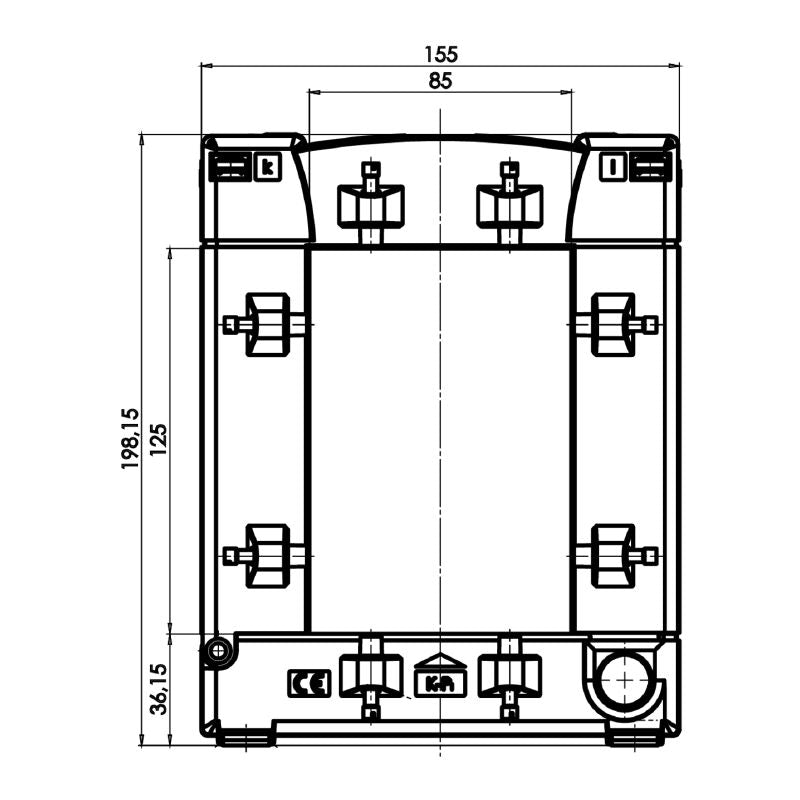

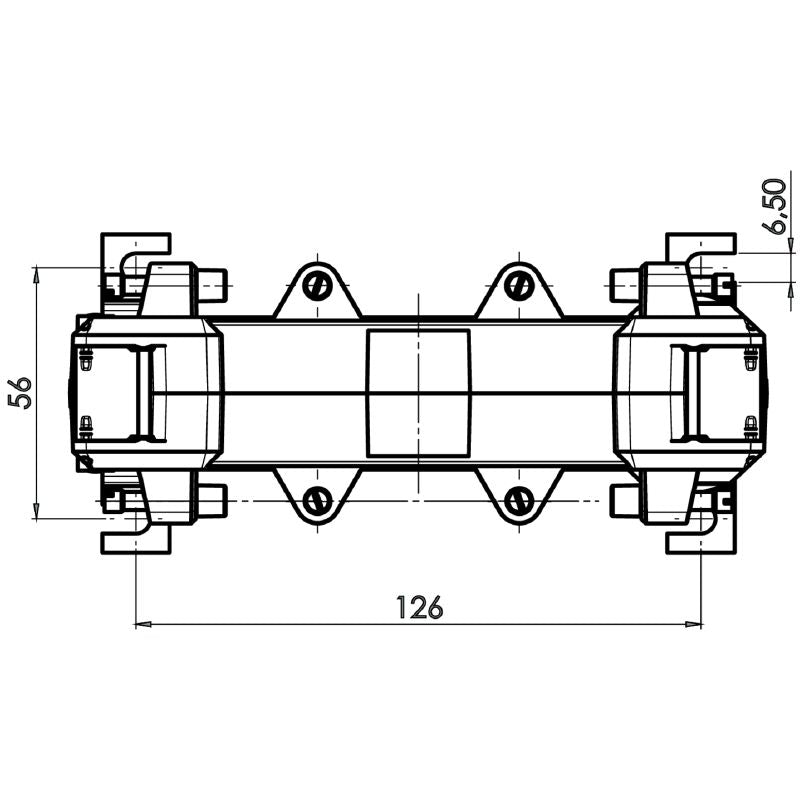

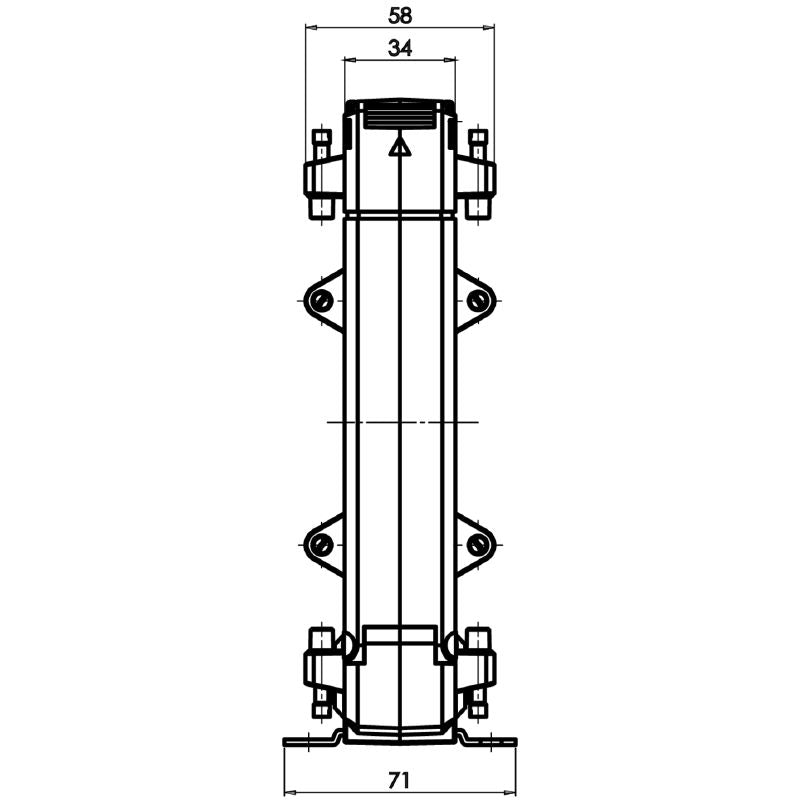

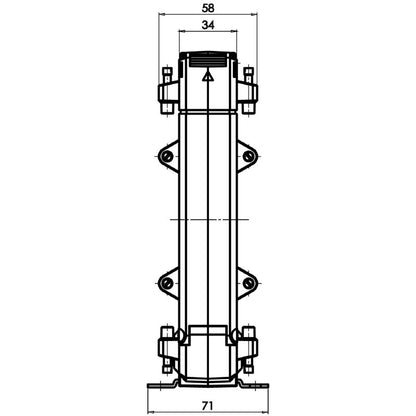

The transformer has dimensions of 198 mm in height, 155 mm in width, and 58 mm in depth, weighing in at 1,362 g, making it both robust and compact for your measurement needs.

Features and Benefits:

•RoHS compliant without exemption.

•Suitable for indoor use.

•Operating temperature range of -5 °C to 40 °C.

•Tolerance class of 0.5.

Specifications:
