2753260000 - 600A Split-Core Current Transformer for Indoor Use
2753260000 - 600A Split-Core Current Transformer for Indoor Use
SKU: SKU: 2753260000 Download PDF
- 2753260000 - 600A Split-Core Current Transformer for Indoor Use
- 2753260000 - 600A Split-Core Current Transformer for Indoor Use
Couldn't load pickup availability
*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color
Description:
Introducing the KCMA-42-600-5A-25VA-05 split-core current transformer, expertly crafted for accurate electrical current measurements With a primary current rating of 600 A and a maximum secondary output of 5 A, this transformer offers a robust load capacity of 25 VA It meets stringent RoHS standards, ensuring it is environmentally friendly without any exemptions Designed specifically for indoor applications, it comes equipped with insulated conductors for enhanced safety and reliability.
Features and Benefits:
•Compliant with RoHS regulations.
•Designed for indoor installation.
Specifications:
| Primary current | 600 A |
| Secondary current max. | 5 A |
| Load | 2.5 VA |
| Tolerance class | 0,5 |
| Cable length | 0.5 m |
| Protection degree | IP20 |
| Operating temperature | -5 °C to 50 °C |

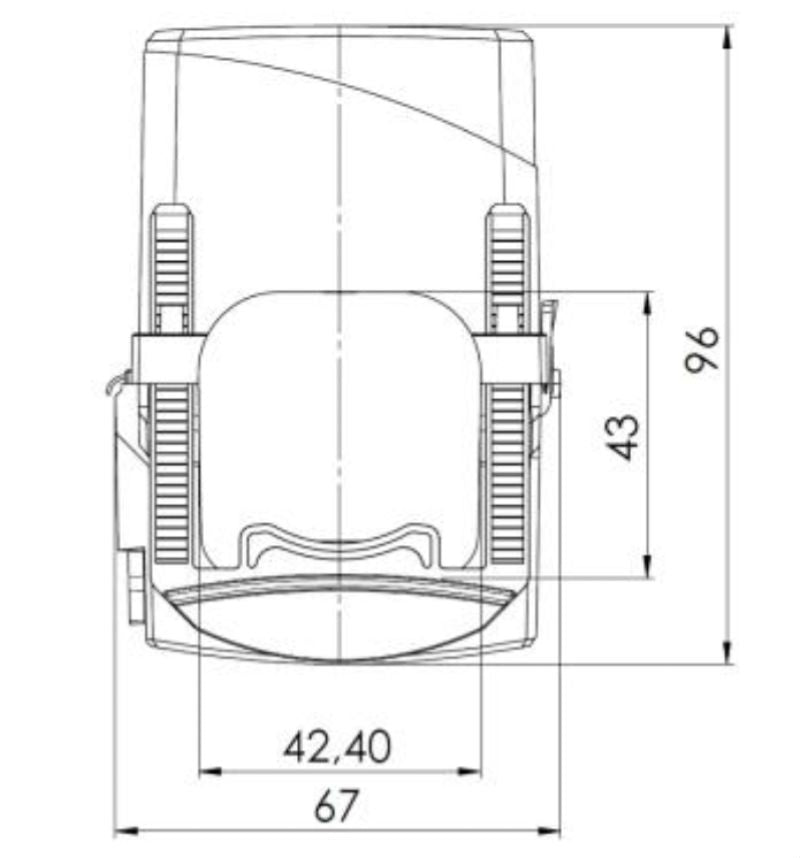

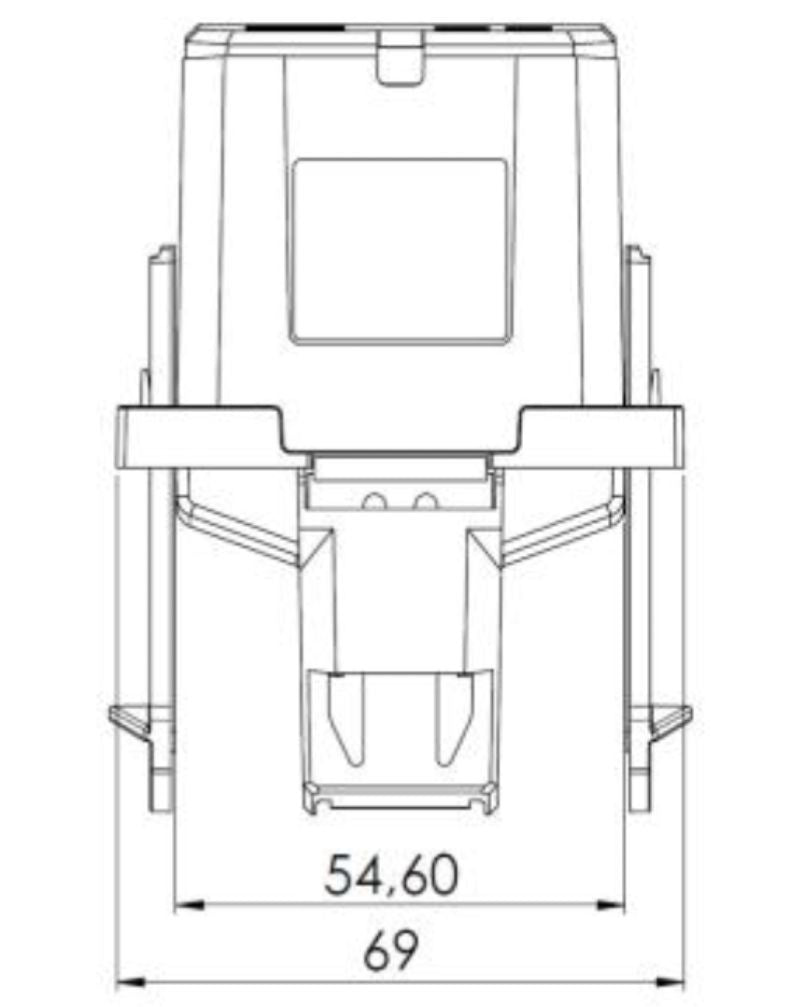

| Depth | 69 mm |
| Height | 96 mm |
| Width | 67 mm |
