Description:

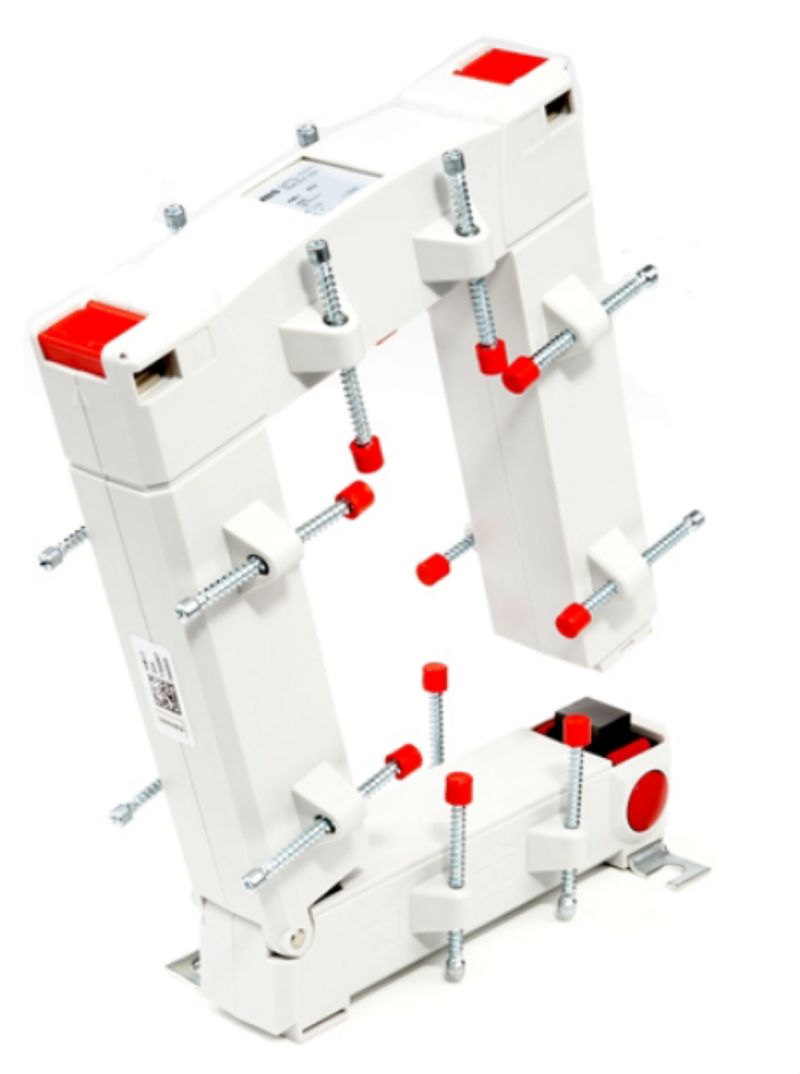

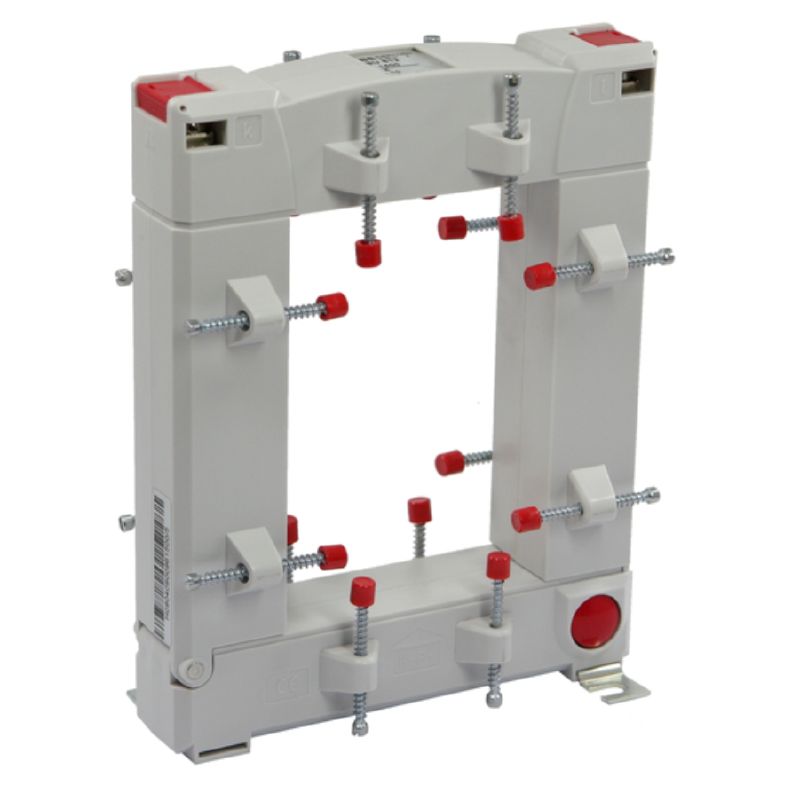

Introducing the KCMA-8-250-5A-15VA1 split-core current transformer, engineered for optimal performance with a primary current capacity of 250 A and a maximum secondary output of 5 A This transformer has a load rating of 15 VA and adheres to RoHS standards without the need for any exemptions Additionally, it features a tolerance class of 1, ensuring high precision in your electrical applications.
Features and Benefits:
•Compliant with RoHS regulations.
•Split-core design allows for easy installation without breaking the circuit.
•Available for use with insulated round conductors only.
Specifications:
| Primary current: | 250 A |
| Secondary current: | 0...5 A |
| Load: | 1.5 VA |
| Tolerance class: | 1 |
| Nominal frequency: | 50 Hz |
| Protection degree: | IP20 |
| Type of conductor: | Insulated conductor only |

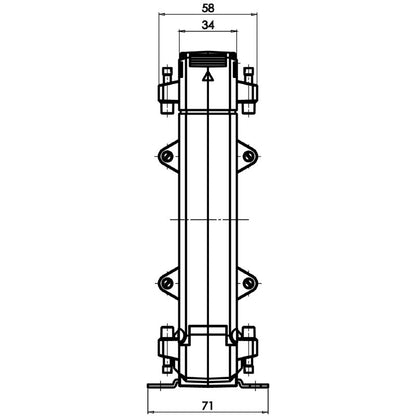

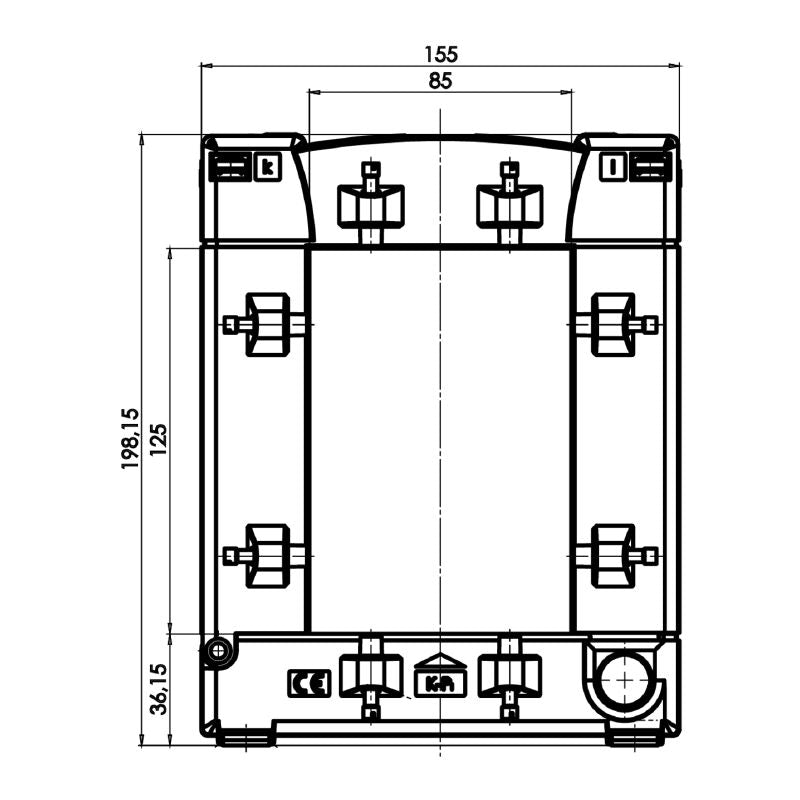

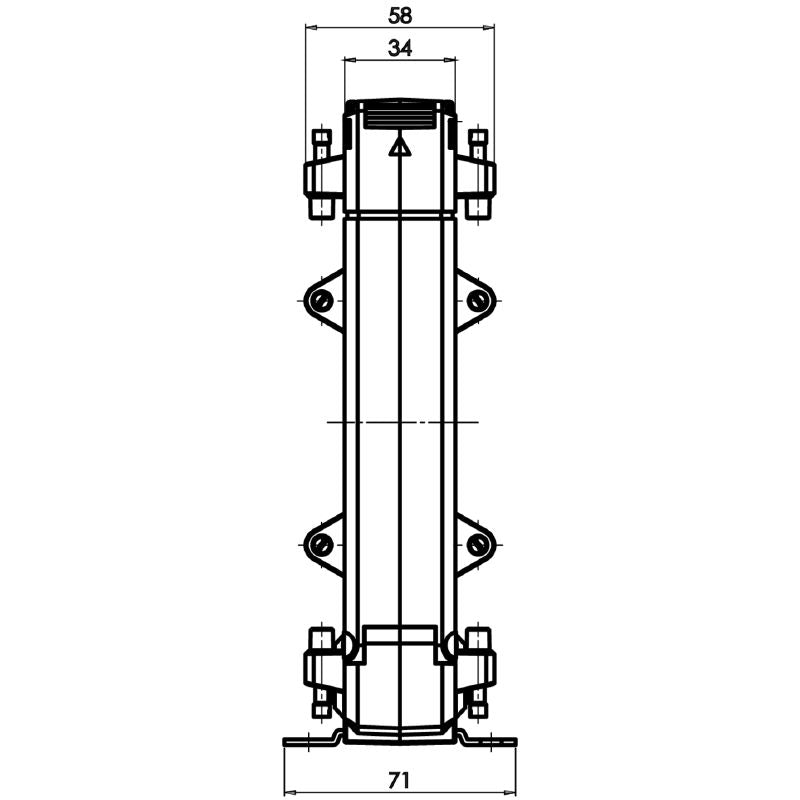

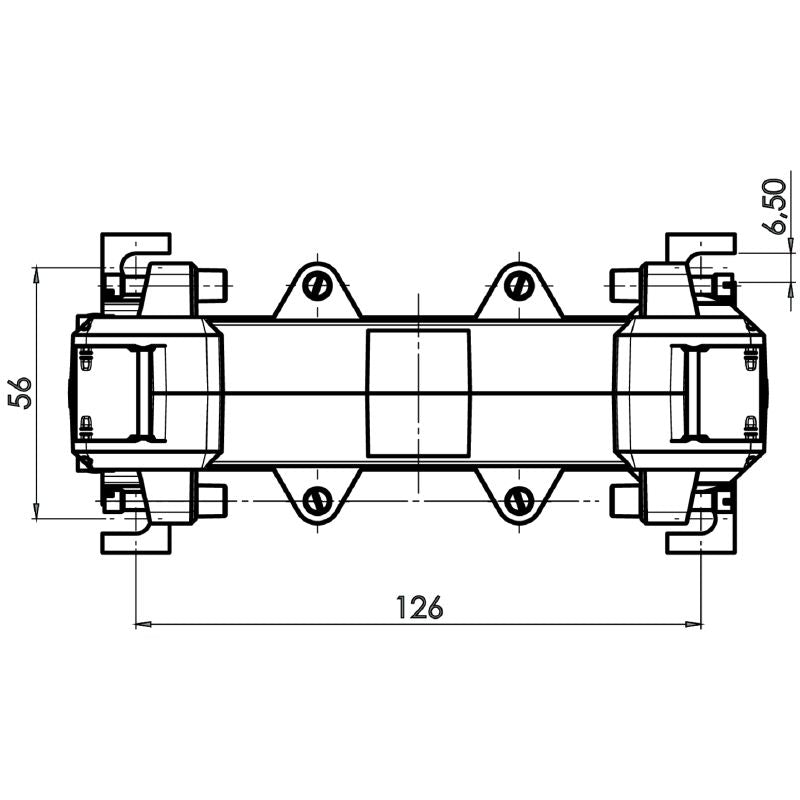

| Dimensions of live conductors: | Round conductor 80 mm, Rail 80 x 120 mm |
