Description:

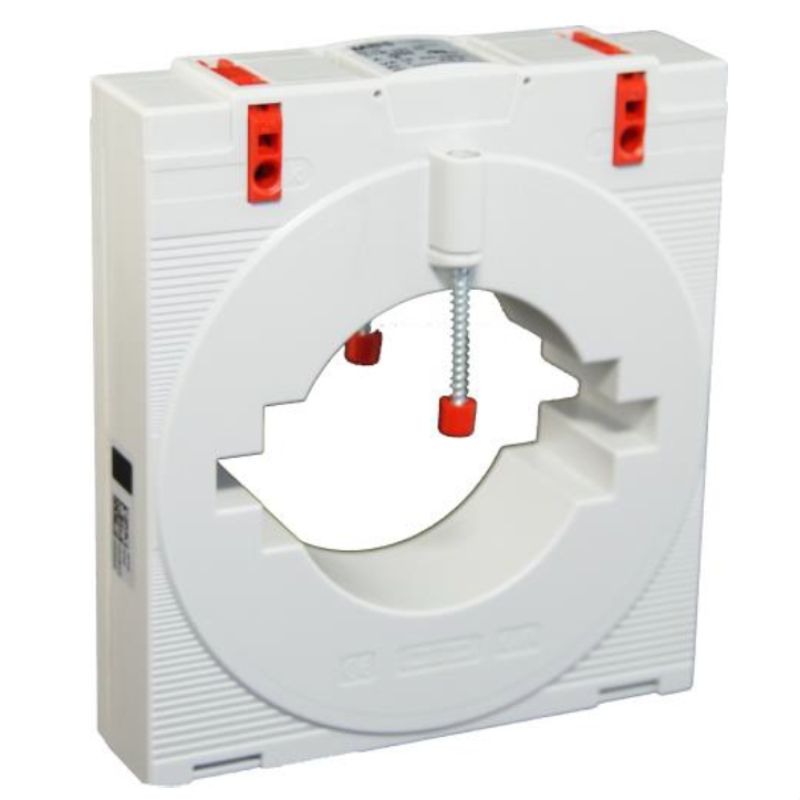

Introducing the CMA-101-2500-5A-10VA-1, a reliable closed current transformer engineered for optimal performance With a primary current capacity of 2500 A and a secondary current limit of 5 A, this device offers a load capacity of 10 VA It falls under tolerance class 1, ensuring precision in its operations Designed for indoor use, this transformer is also RoHS compliant, making it a safe choice for various applications.
Features and Benefits:
•RoHS compliant.
•Closed current transformer.
•Designed for indoor use.
Specifications:
| Primary current: | 2500 A |
| Secondary current: | 0...5 A |
| Load: | 10 VA |
| Tolerance class: | 1 |
| Nominal frequency: | 50 Hz |
| Protection degree: | IP20 |

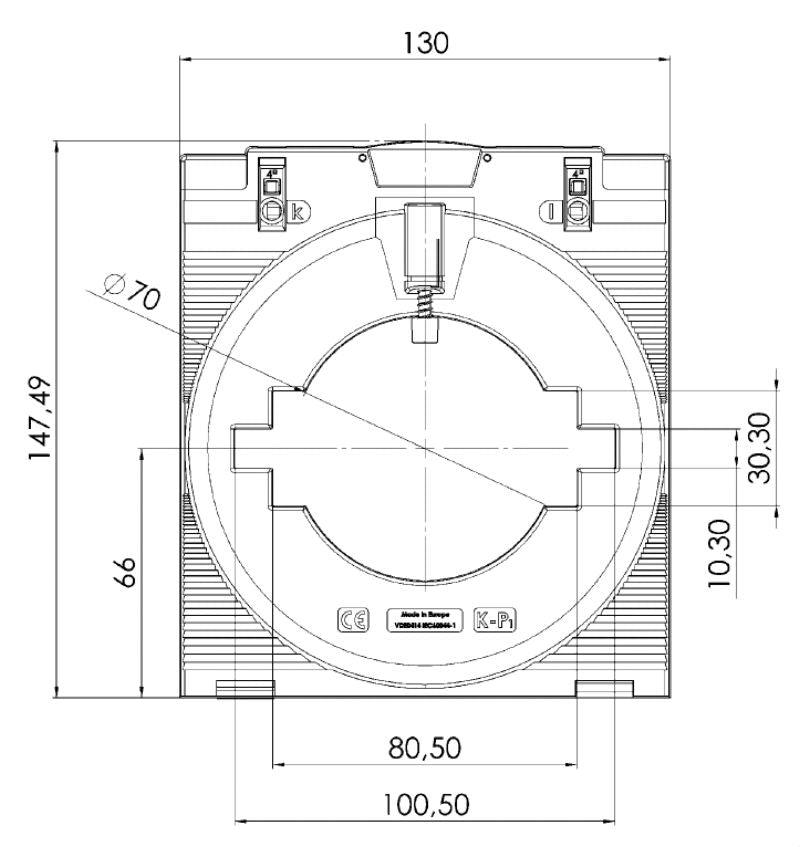

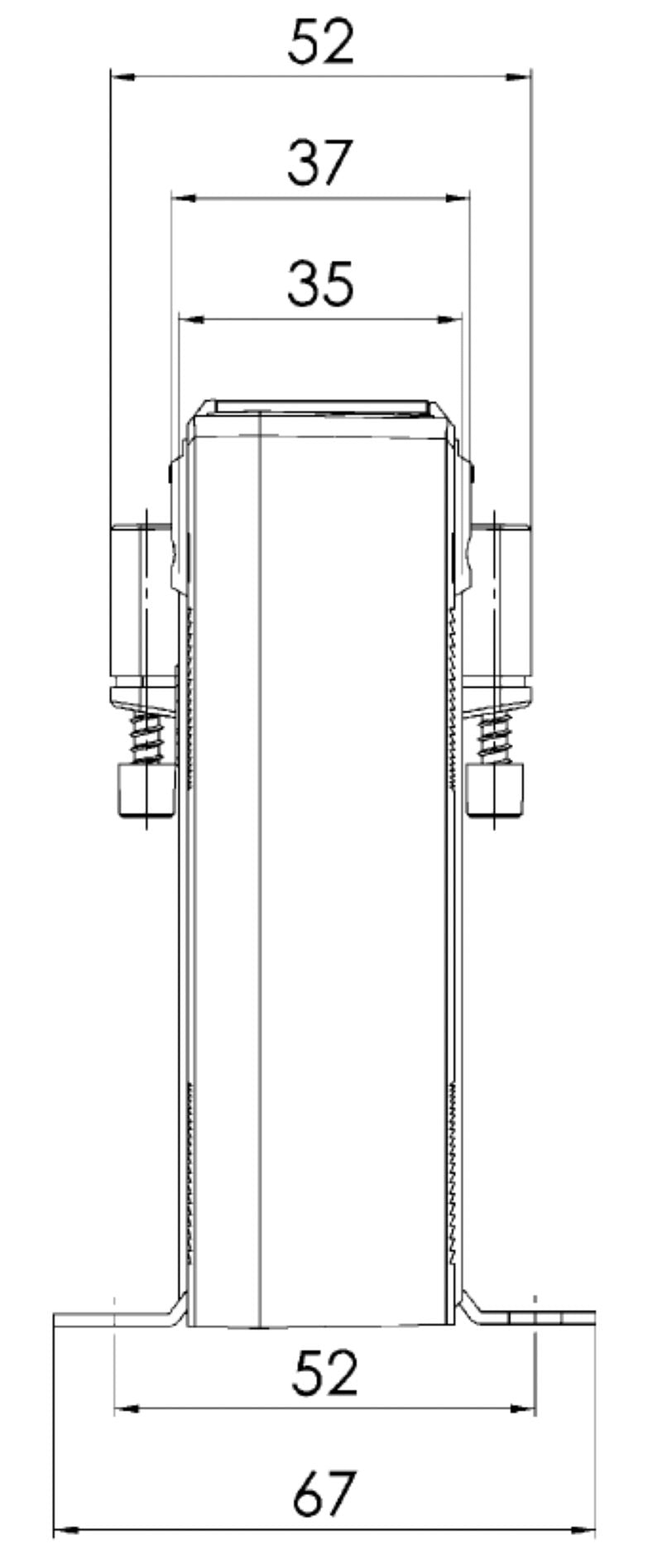

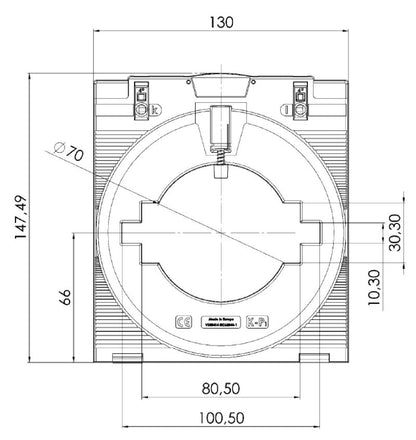

| Length: | 147 mm |
| Length (inches): | 5.787 inch |
| Installation location: | Indoor use |
