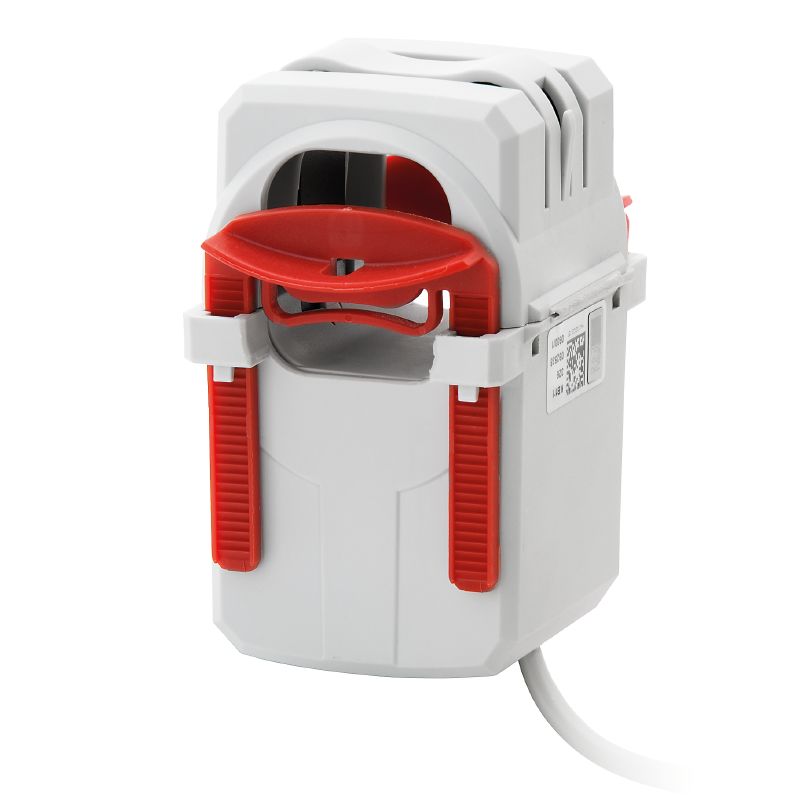

2753190000 - 600A Split-Core Current Transformer, 2.5VA Load Rating
2753190000 - 600A Split-Core Current Transformer, 2.5VA Load Rating
SKU: SKU: 2753190000 Download PDF
- 2753190000 - 600A Split-Core Current Transformer, 2.5VA Load Rating
- 2753190000 - 600A Split-Core Current Transformer, 2.5VA Load Rating
Couldn't load pickup availability
*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color
Description:
Introducing the KCMA-42-600-1A-25VA-05, a reliable split-core current transformer with a primary current capacity of 600 A and a maximum secondary output of 1 A It has a load rating of 25 VA, making it efficient for various applications With a tolerance class of 05, this transformer is specifically designed for indoor settings and adheres to RoHS standards without any exemptions.
Features and Benefits:
•Compliant with RoHS without exemption.
•Indoor installation use.
•Insulated conductor type only.
Specifications:
| Primary current | 600 A |
| Secondary current | 0...1 A |
| Load | 2.5 VA |
| Tolerance class | 0.5 |

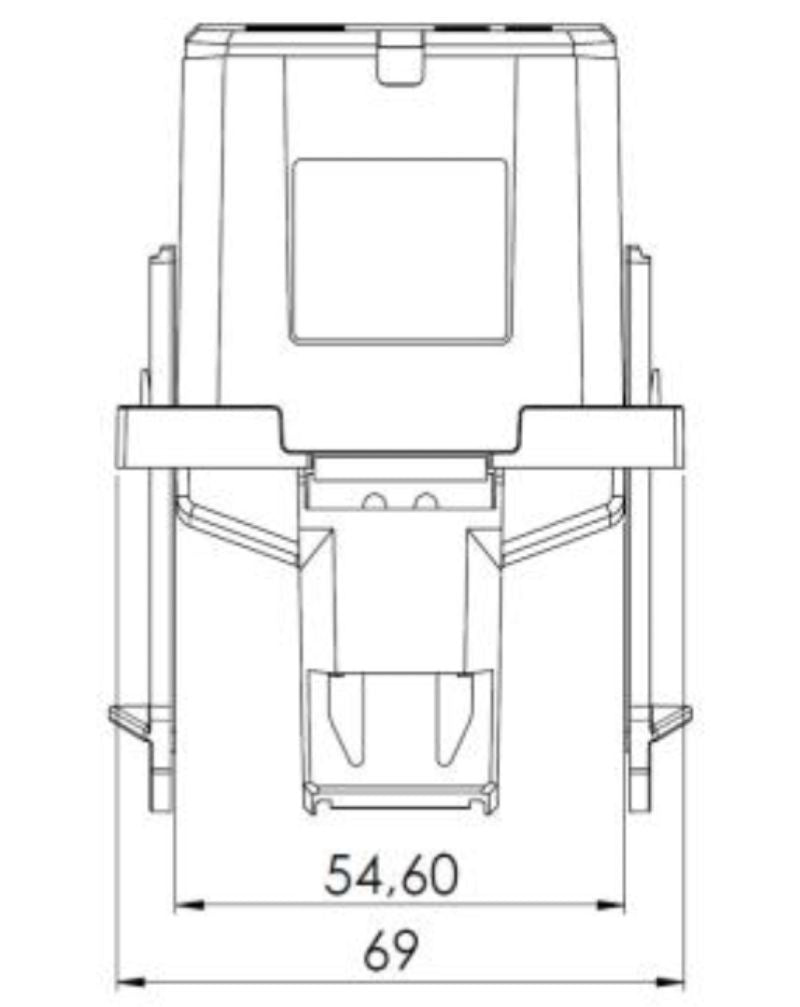

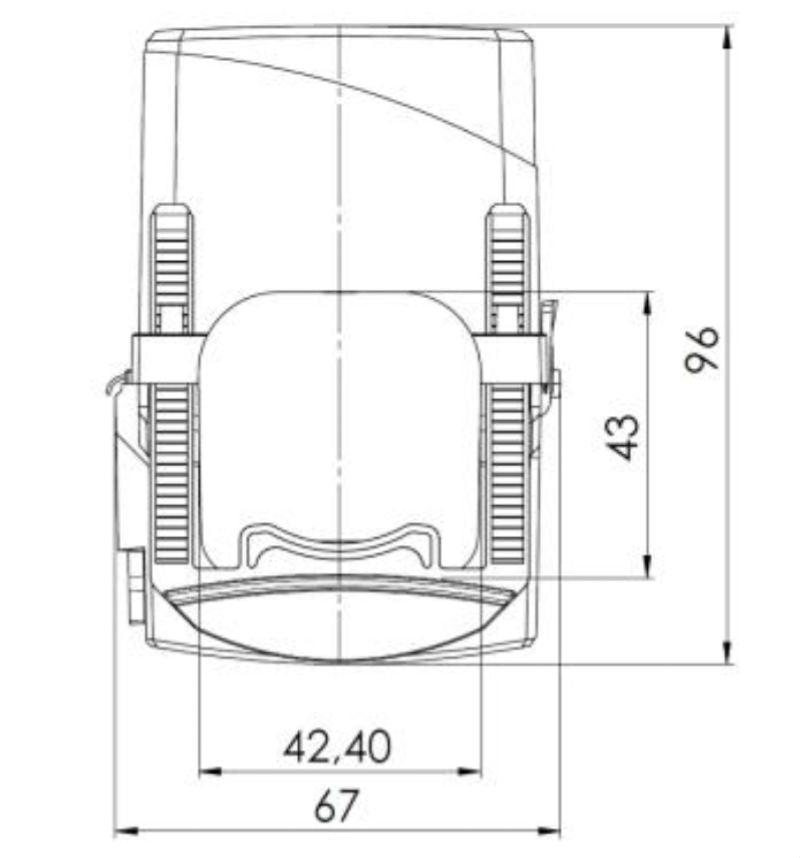

| Depth | 69 mm |
| Height | 96 mm |
| Width | 67 mm |
| Net weight | 492 g |
| Operating temperature | -5 °C to 50 °C |
| Protection degree | IP20 |
| Cable length | 0.5 m |
