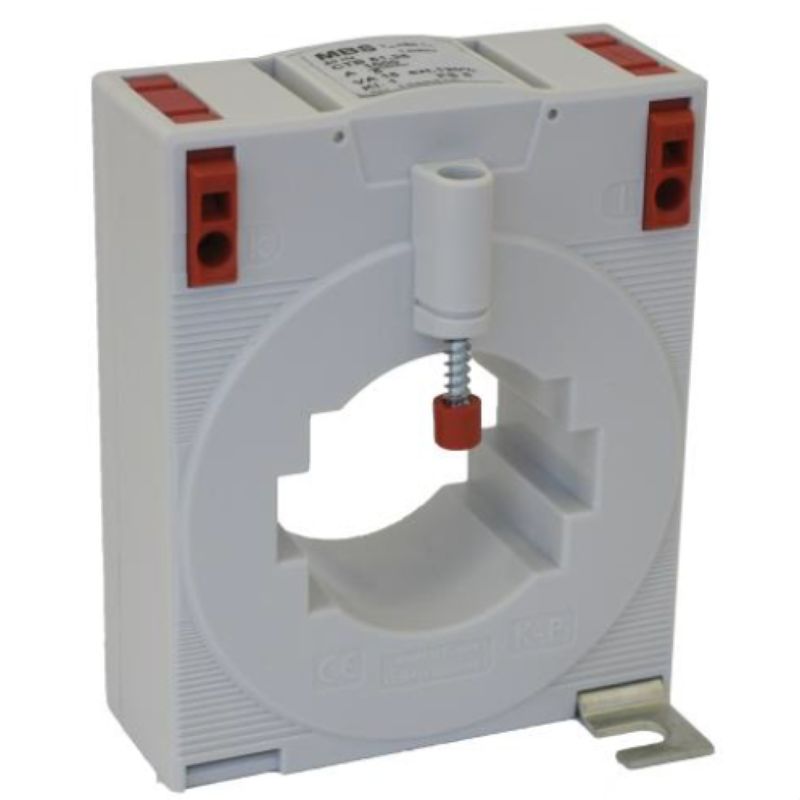

2680170000 - Indoor 1500A Closed Current Transformer, 5A 5VA Capacity
2680170000 - Indoor 1500A Closed Current Transformer, 5A 5VA Capacity
SKU: SKU: 2680170000 Download PDF
- 2680170000 - Indoor 1500A Closed Current Transformer, 5A 5VA Capacity
- 2680170000 - Indoor 1500A Closed Current Transformer, 5A 5VA Capacity
Couldn't load pickup availability
*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color
Description:

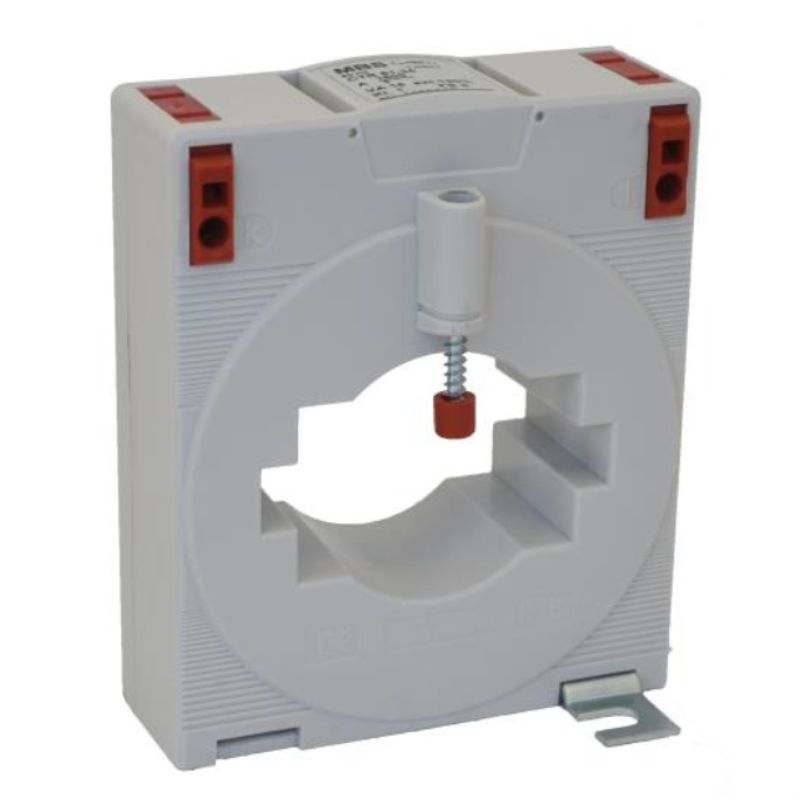

Introducing the CMA-61-1500-5A-5VA-1, an indoor closed current transformer tailored for precision performance With a primary current rating of 1500 A and a maximum secondary output of 5 A, it supports a load capacity of 5 VA This reliable device adheres to RoHS guidelines, ensuring no substances of very high concern are present above a 01 wt% threshold It satisfies stringent insulation requirements set forth in IEC 61869-1: 2007 and IEC 61869-2: 2012 standards, and boasts a tolerance class of 1 for accurate measurements, making it an excellent choice for various applications.
Features and Benefits:
•Closed current transformer design for indoor use.
•RoHS compliant with no SVHC above 0.1 wt%.
•Meets IEC insulation standards.
Specifications:
| Primary current | 1500 A |
| Secondary current max | 5 A |
| Load | 5 VA |
| Tolerance class | 1 |

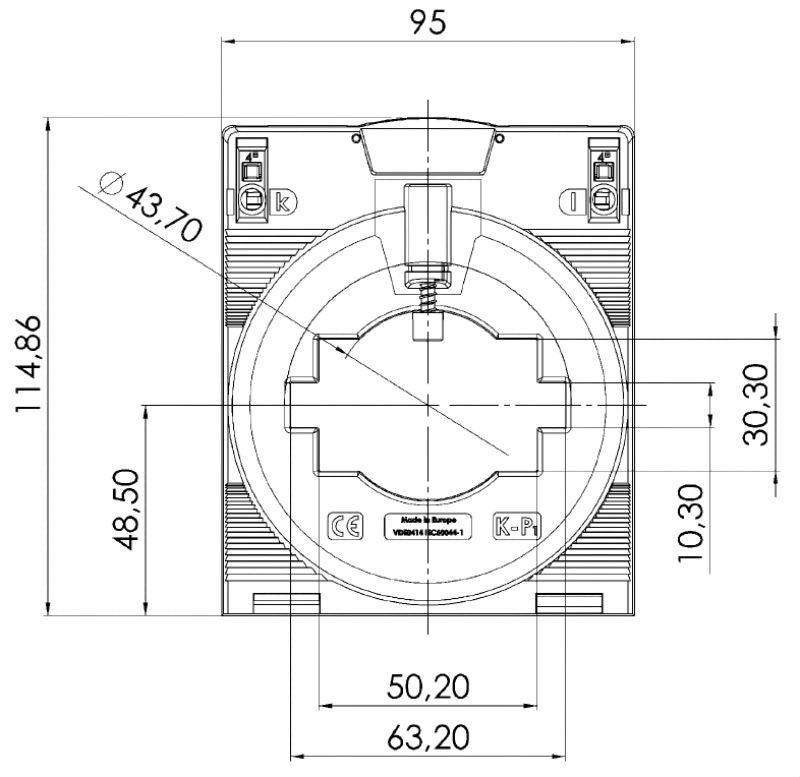

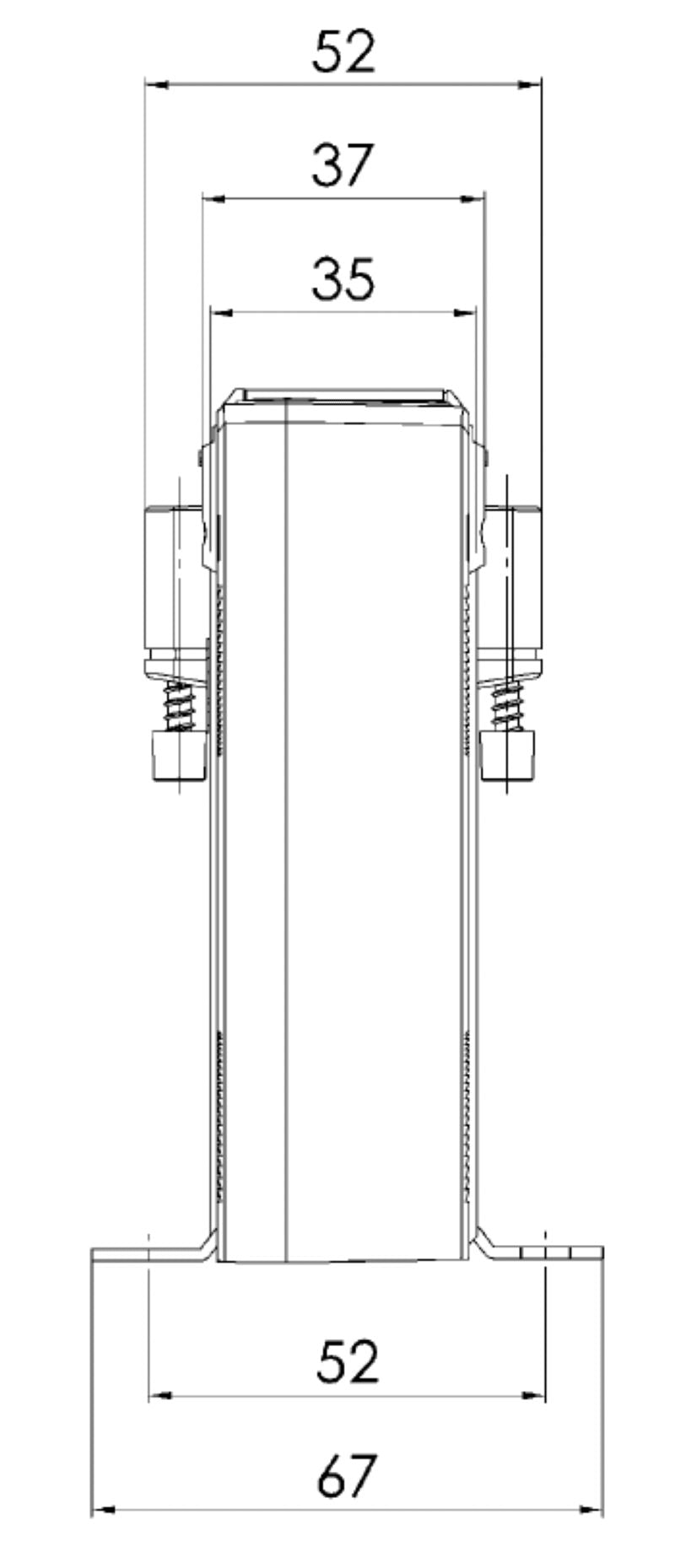

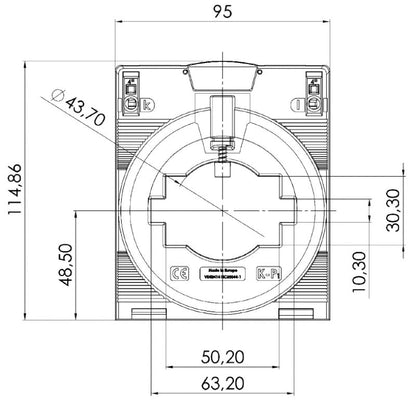

| Depth | 52 mm |
| Width | 95 mm |
| Length | 114 mm |
| Nominal frequency | 50 Hz |
| Thermal rated continuous current I thermal | 1.2 x I rated |
| Type of conductor | Insulated conductor only |
| Round conductor | 43 mm |
| Rail dimensions | 50 x 30 mm, 63 x 10 mm |
