Description:

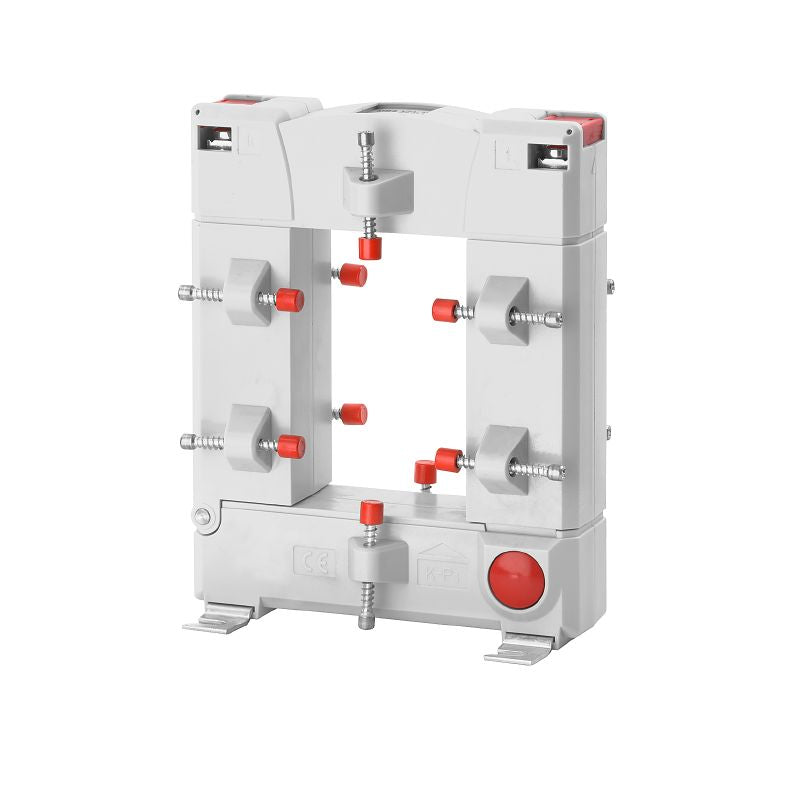

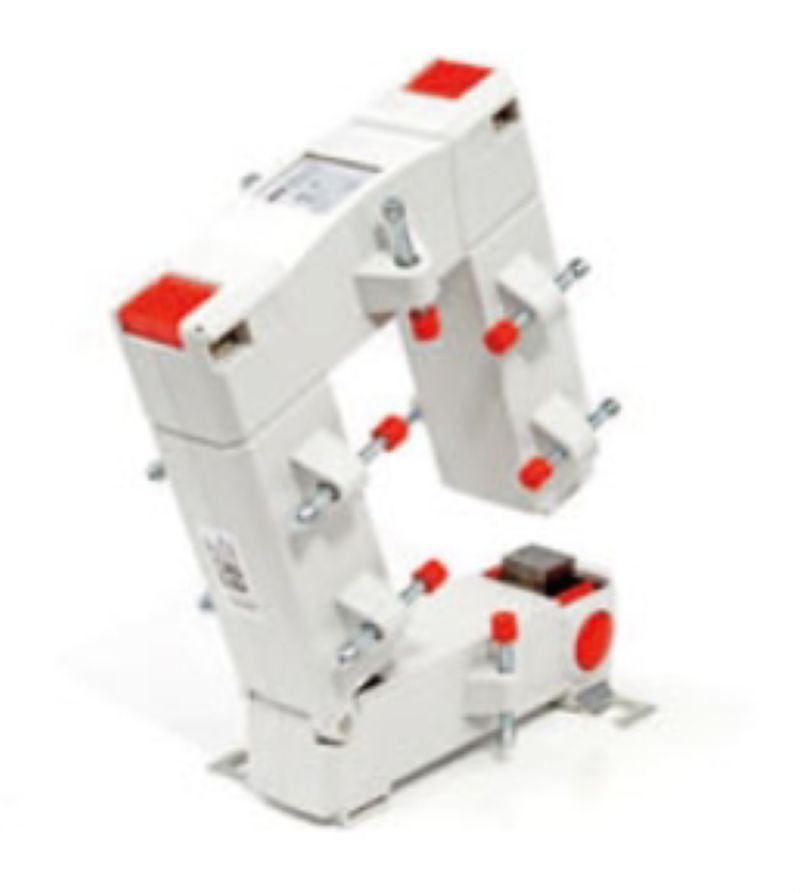

Introducing the KCMA-RCM-58D split-core residual current transformer, expertly engineered to handle a primary current of 18 A and accommodating a round conductor diameter of 5000 mm This model is RoHS compliant, ensuring it does not contain any substances of very high concern (SVHC) exceeding 01 wt% Perfectly suited for indoor applications, it effectively measures residual current within a temperature range of -5 °C to 45 °C, making it a reliable choice for various environments.
Features and Benefits:
•RoHS Compliant.
•Indoor use only.
•Measuring current input for residual current.
Specifications:

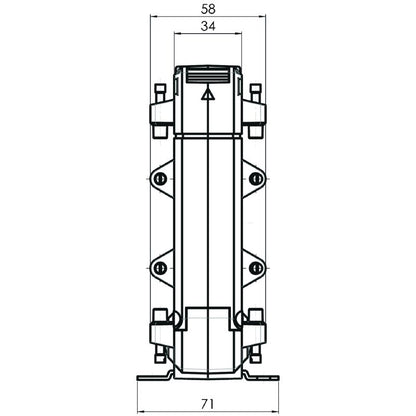

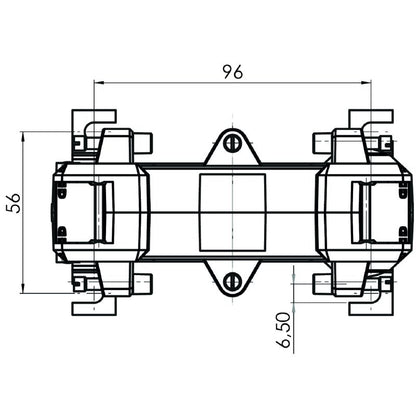

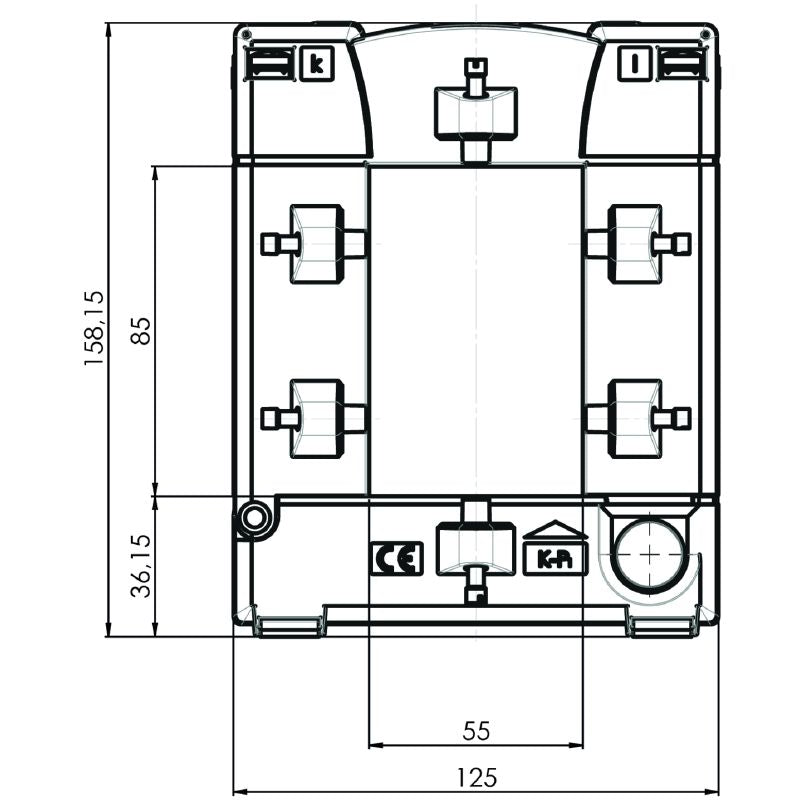

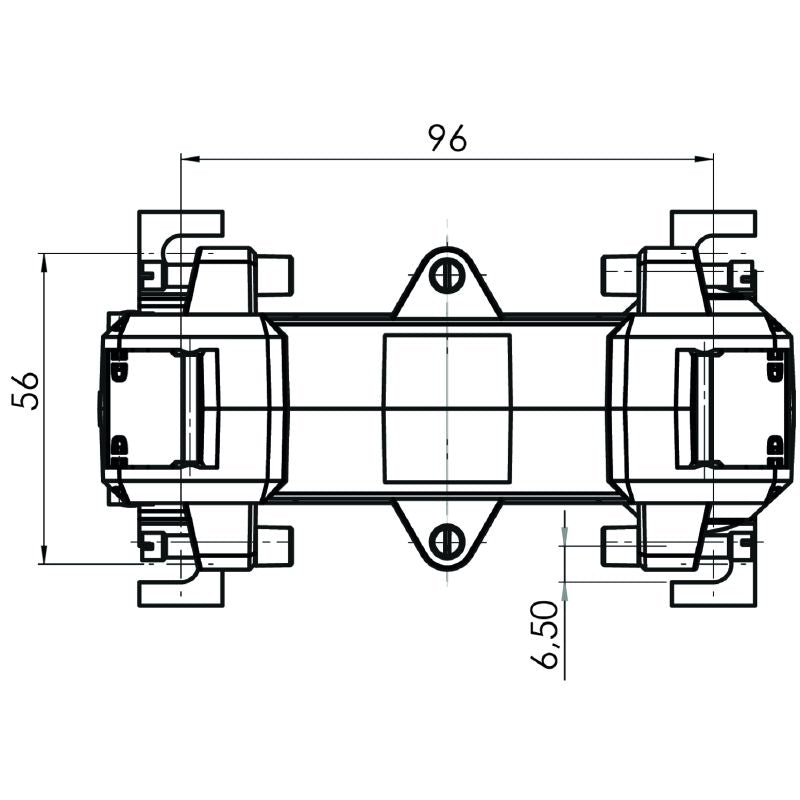

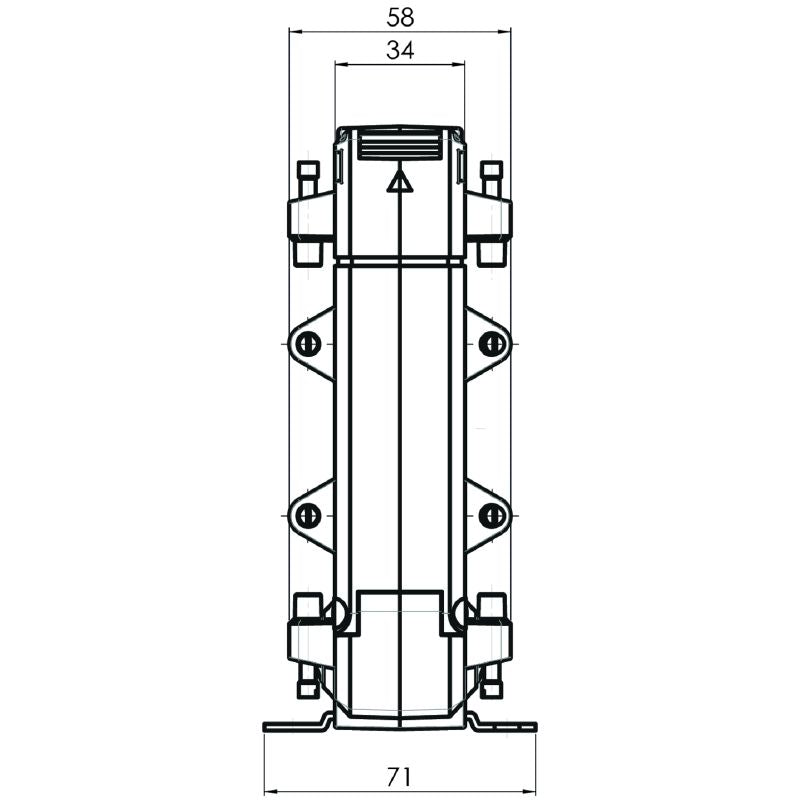

| Depth | 158 mm |
| Width | 58 mm |
| Length | 125 mm |
| Operating temperature | -5 °C...45 °C |
| Frequency band | 30…1000 Hz |
| Primary conductor temperature | 70 °C |
| Primary current | 18 A |
| Secondary current | 0...0.04 A |
| Tolerance class | 1 |
| Transmission ratio | 1:600 |
| Insulation class | E |
| Nominal frequency | 50 Hz |
| Protection degree | IP20 |
| Thermal rated continuous current I thermal | 60 x I rated for 1 second |
| Insulation coordination | Standard EN 60044⁄1 |
