Description:
Ensure precise monitoring with the split-core current transformer, ideal for specialized applications It accommodates a primary current of 125 A and allows a maximum secondary current of 1 A, equipped with a load capacity of 05 VA This model, identified as KCMA-18-125-1A-05VA-1, meets a tolerance class of 1 for reliable performance The general ordering number for this transformer is 2753000000, making it easy to reference for procurement.
Features and Benefits:
•RoHS compliant without exemption.
•Designed for indoor use.
•Insulated conductor type only.
•Operating temperature range from -5 °C to 50 °C.
Specifications:

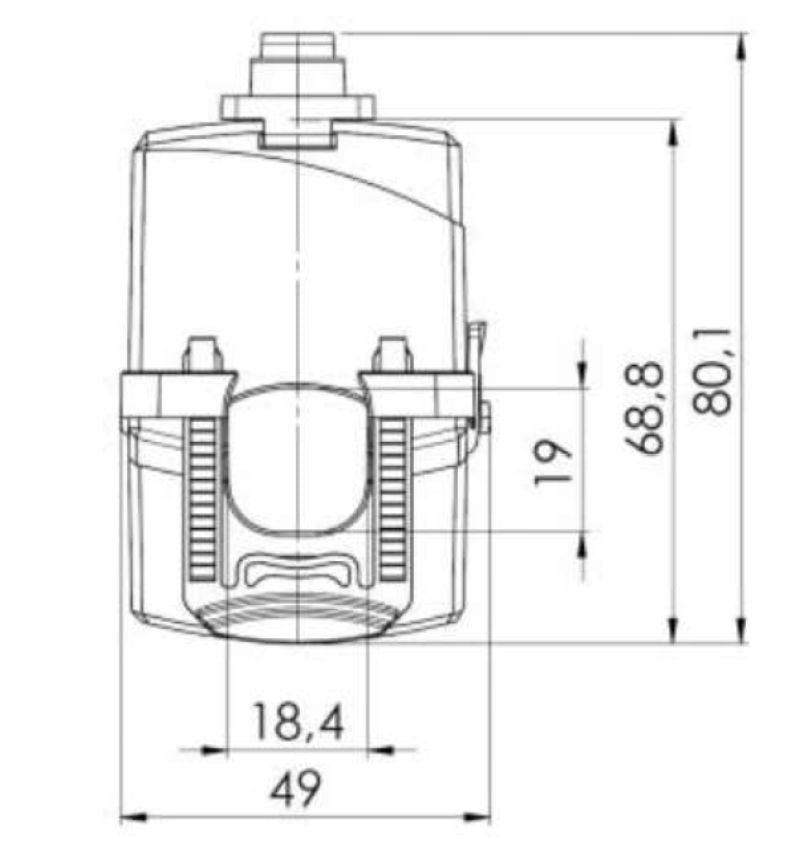

| Depth | 59 mm |
| Depth (inches) | 2.323 inch |
| Height | 80.1 mm |
| Height (inches) | 3.154 inch |
| Width | 49 mm |
| Width (inches) | 1.929 inch |
| Cable length | 2.5 m |
| Nominal frequency | 50 Hz |
| Protection degree | IP20 |
| Primary current | 125 A |
| Secondary current | 0...1 A |
| Load | 0.5 VA |
| Tolerance class | 1 |
