Description:
Discover the KCMA-18-125-1A-1,5VA-3 current transformer, specifically crafted for efficiency with a primary current rating of 125 A and a maximum secondary current of 1 A, supporting a load specification of 15 VA This model is built within a tolerance class of 3 and fully compliant with RoHS regulations, ensuring no exemptions Its split-core design makes it versatile for a wide range of applications, making it an essential choice for your electrical projects.
Features and Benefits:
•RoHS compliant without exemption.
•Designed for indoor use.
•Suitable for insulated conductors only.
Specifications:
| Manufacturer | MBS AG |
| Primary current | 125 A |
| Secondary current | 0...1 A |
| Load | 1.5 VA |
| Tolerance class | 3 |
| Operating temperature | -5 °C...50 °C |
| Cable length | 2.5 m |
| Nominal frequency | 50 Hz |
| Protection degree | IP20 |

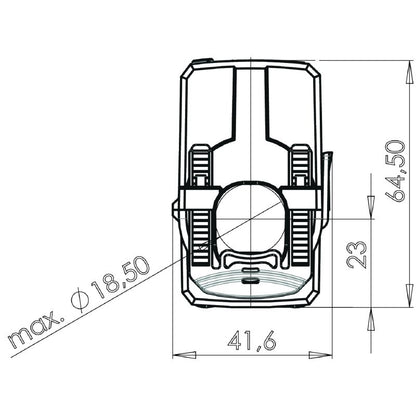

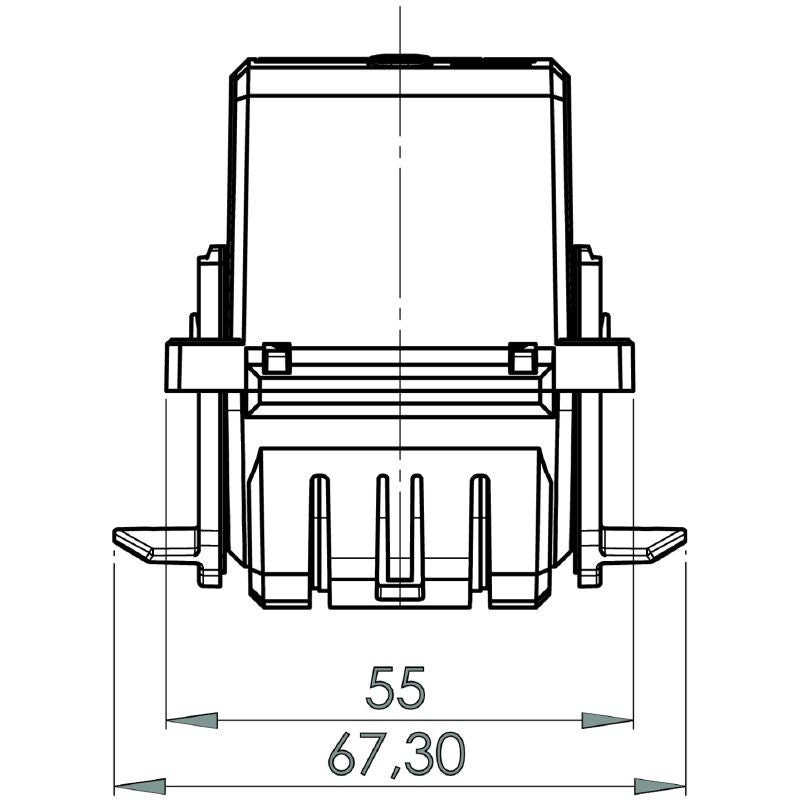

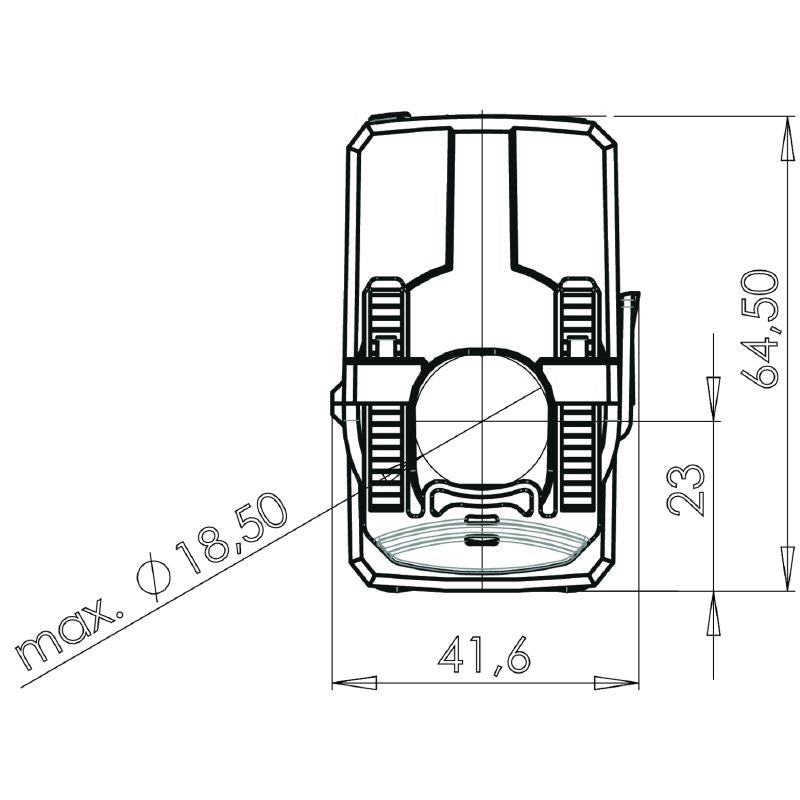

| Dimensions | {'Depth': '67.3 mm', 'Height': '64.5 mm', 'Width': '41.6 mm'} |
| General ordering data | {'Order No.': '2752980000', 'GTIN (EAN)': '4050118897005'} |
