Description:
Introducing the KCMA-28-200-1A-03VA-1, a precision-engineered split-core current transformer ideal for indoor applications With a primary current capacity of 200 A and a maximum secondary current of 1 A, this transformer ensures accurate measurements with a load rating of 03 VA It adheres to tolerance class 1 standards, guaranteeing reliable performance

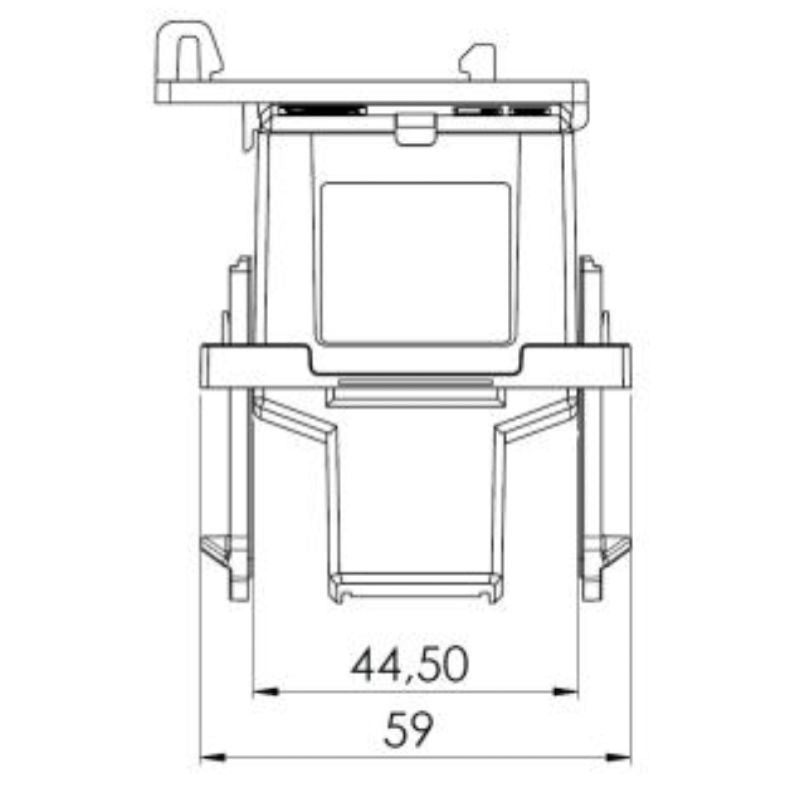

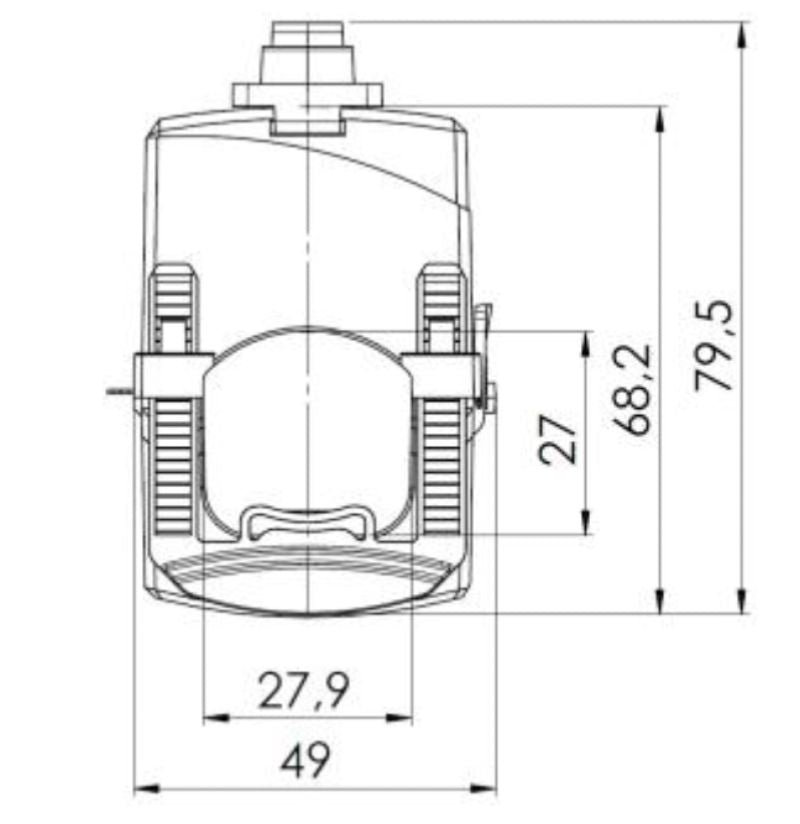

The transformer measures 795 mm in height, 49 mm in width, and 59 mm in depth, with a net weight of 256 g.
Designed to function optimally in temperatures ranging from -5 °C to 50 °C, it is also RoHS compliant and free from any SVHC content above 01 wt% Perfect for your electrical measurement needs, this current transformer combines efficiency with safety.
Features and Benefits:
•Split-core design for easy installation.
•RoHS compliant.
•Indoor use.
Specifications:
| Primary current | 200 A |
| Secondary current | 0...1 A |
| Load | 0.3 VA |
| Tolerance class | 1 |
| Cable length | 2.5 m |
| Nominal frequency | 50 Hz |
| Protection degree | IP20 |
| Operating temperature | -5 °C...50 °C |
| Type of conductor | Insulated conductor only |
| Round conductor | 27 mm |
| Depth | 59 mm |
| Height | 79.5 mm |
| Width | 49 mm |
