Description:
Introducing the KCMA-18-150-1A-1VA-1 split-core current transformer, specifically engineered for precise electrical current measurement With a primary current rating of 150 A and a secondary current capacity of 1 A, this device boasts a power rating of 1 VA and falls under tolerance class 1 Compliant with RoHS regulations, it ensures safety and environmental integrity

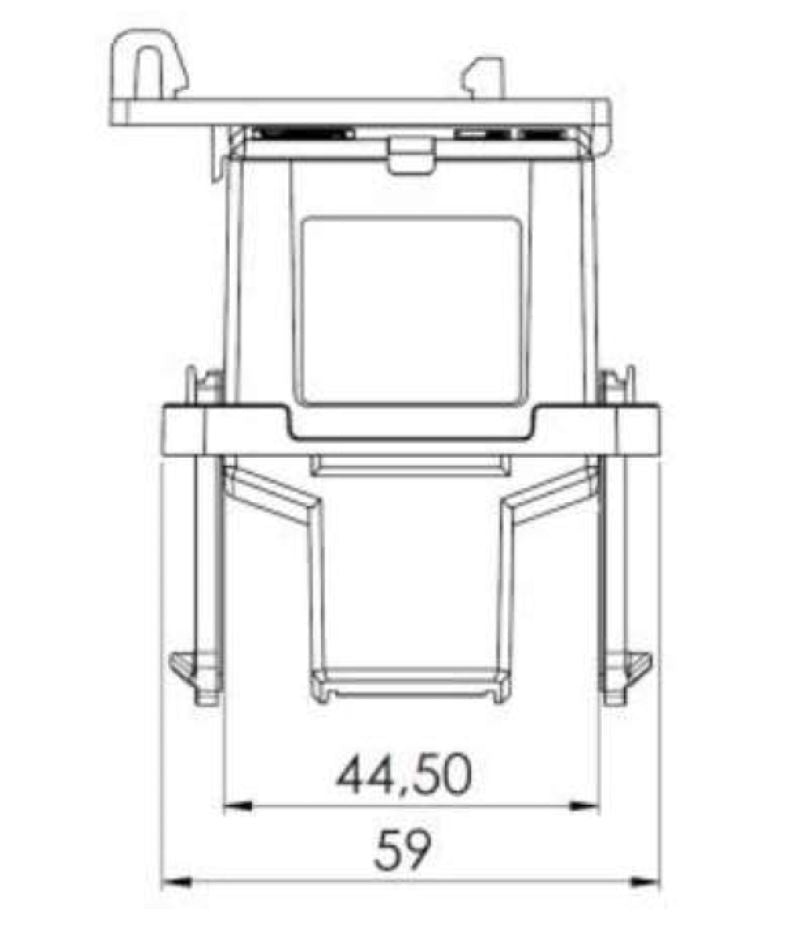

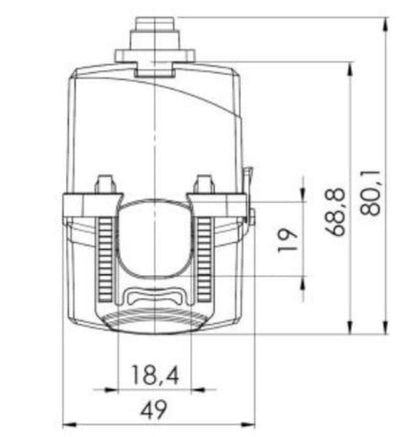

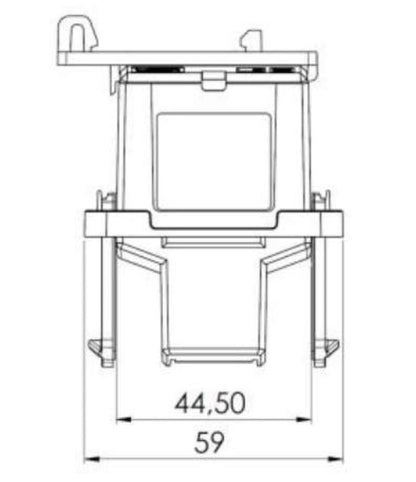

The transformer has compact dimensions of 59 mm deep, 80.
1 mm tall, and 49 mm wide, with a total weight of 329 g It functions effectively within a temperature range of -5 °C to 50 °C, making it suitable for various indoor applications Additionally, it comes with a 25 m cable for easy installation and connectivity.
Features and Benefits:
•Designed for split-core current sensing.
•RoHS compliant without exemption.
•Indoor installation suitability.
Specifications:
| Primary current | 150 A |
| Secondary current max. | 1 A |
| Load | 1 VA |
| Tolerance class | 1 |
| Depth | 59 mm |
| Height | 80.1 mm |
| Width | 49 mm |
| Operating temperature | -5 °C...50 °C |
| Cable length | 2.5 m |
| Nominal frequency | 50 Hz |
| Protection degree | IP20 |
