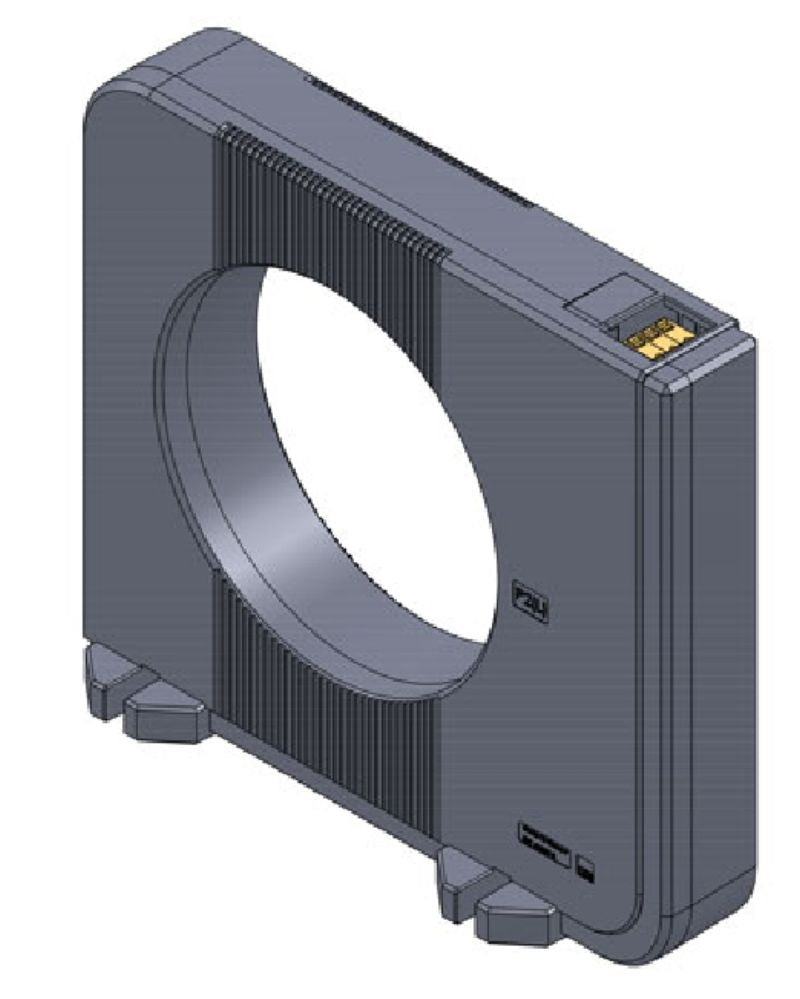

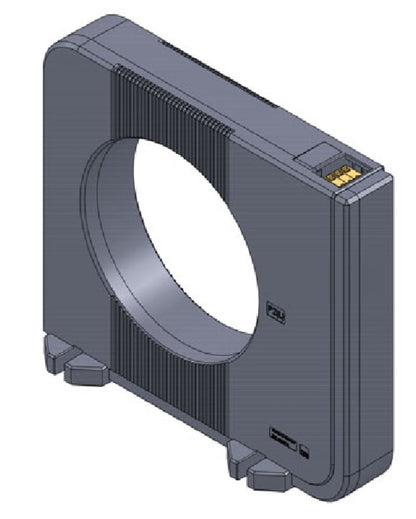

2603450000 - 25A Round Residual Current Transformer, 120mm Diameter
2603450000 - 25A Round Residual Current Transformer, 120mm Diameter
SKU: SKU: 2603450000 Download PDF
- 2603450000 - 25A Round Residual Current Transformer, 120mm Diameter
- 2603450000 - 25A Round Residual Current Transformer, 120mm Diameter
Couldn't load pickup availability
*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color
Description:
Introducing our specialized residual current transformer, perfect for applications requiring a primary current of 25 A This transformer is designed for round conductors, accommodating diameters of up to 12000 mm Featuring a closed design and compliant with RoHS standards, it adheres to strict environmental regulations Tailored for indoor use, this transformer is available exclusively in select countries, making it a reliable choice for your electrical needs.
Features and Benefits:
•Compliant with RoHS and REACH.

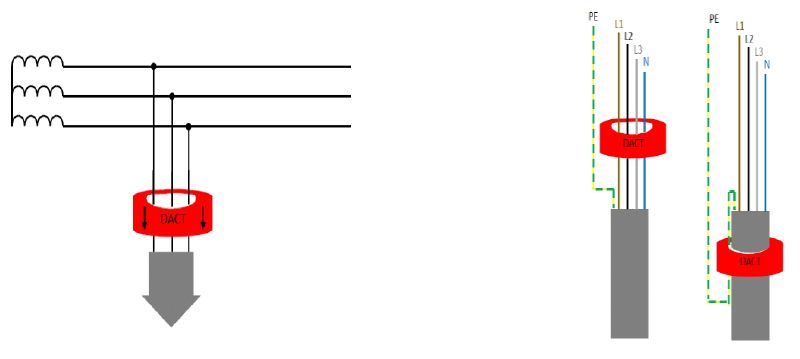

•Designed for insulated conductors only.
•Measurement accuracy at Class 1 as per IEC 6206-21.
•Protection degree rated at IP40.
•Galvanic isolation provided.
•Suitable for a frequency band of 30 Hz to 3 kHz.
•Indoor installations.
Specifications:

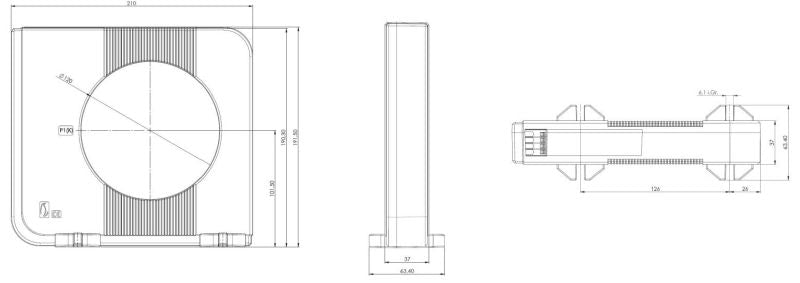

| Depth | 37 mm |
| Height | 191.5 mm |
| Width | 210 mm |
| Storage temperature | -25 °C to 70 °C |
| Operating temperature | -10 °C to 70 °C |
| Load | 0 VA |
| Secondary current | 0 to 0.04 A |
| Transmission ratio | 1:600 |
| Coil resistance | 8 Ω |
| Impulse withstand voltage | 8 kV |
| Rated voltage | 800 V |
| Input measurement range | 0.02 to 2 A / 0.25 to 25 A depending on terminal assignment |
