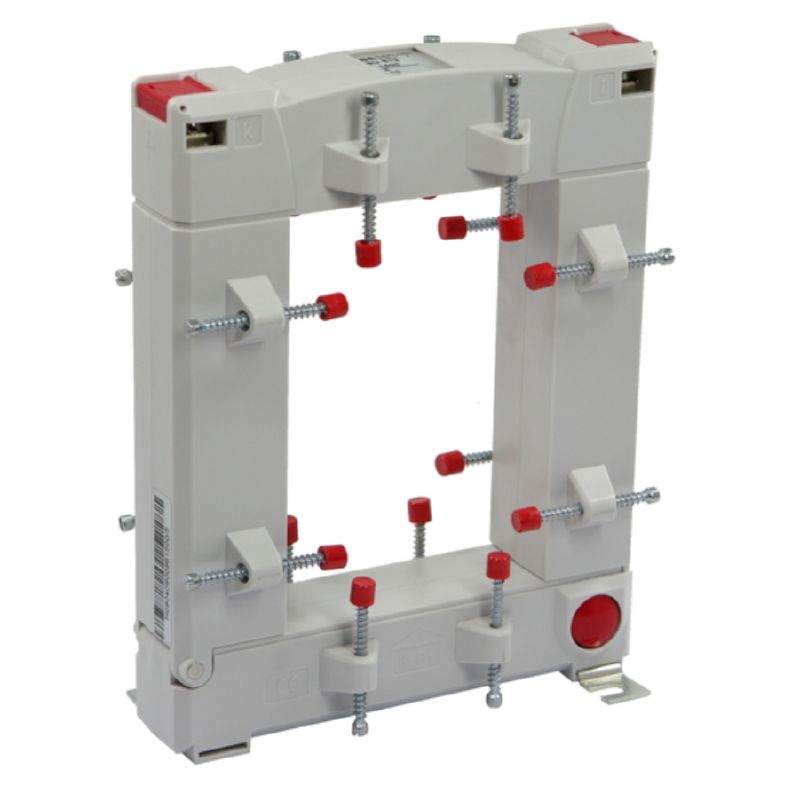

2753410000 - 600A Split-Core Current Transformer, ROHS Compliant, 2.5 VA
2753410000 - 600A Split-Core Current Transformer, ROHS Compliant, 2.5 VA
SKU: SKU: 2753410000 Download PDF
- 2753410000 - 600A Split-Core Current Transformer, ROHS Compliant, 2.5 VA
- 2753410000 - 600A Split-Core Current Transformer, ROHS Compliant, 2.5 VA
Couldn't load pickup availability
*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color
Description:
Introducing a versatile split-core current transformer, rated for a primary current of 600 A and a secondary current of up to 5 A, featuring a load capacity of 25 VA This unit meets ROHS standards and boasts a tolerance class of 05, ensuring reliable performance Designed specifically for indoor applications, it is optimized for use with insulated conductors only, making it a great choice for secure and efficient electrical monitoring.
Features and Benefits:
•Compliant with ROHS without exemption.
•Indoor installation.
•IP20 protection degree.
Specifications:
| Depth | 58 mm |
| Height | 198 mm |
| Width | 155 mm |
| Operating temperature | -5 °C...40 °C |
| Cable length | 0.5 m |
| Nominal frequency | 50 Hz |
| Insulation coordination | IEC 61869-1: 2007, IEC 61869-2: 2012 |
| Primary current | 600 A |
| Secondary current | 0...5 A |
| Load | 2.5 VA |
| Tolerance class | 0.5 |
