Description:

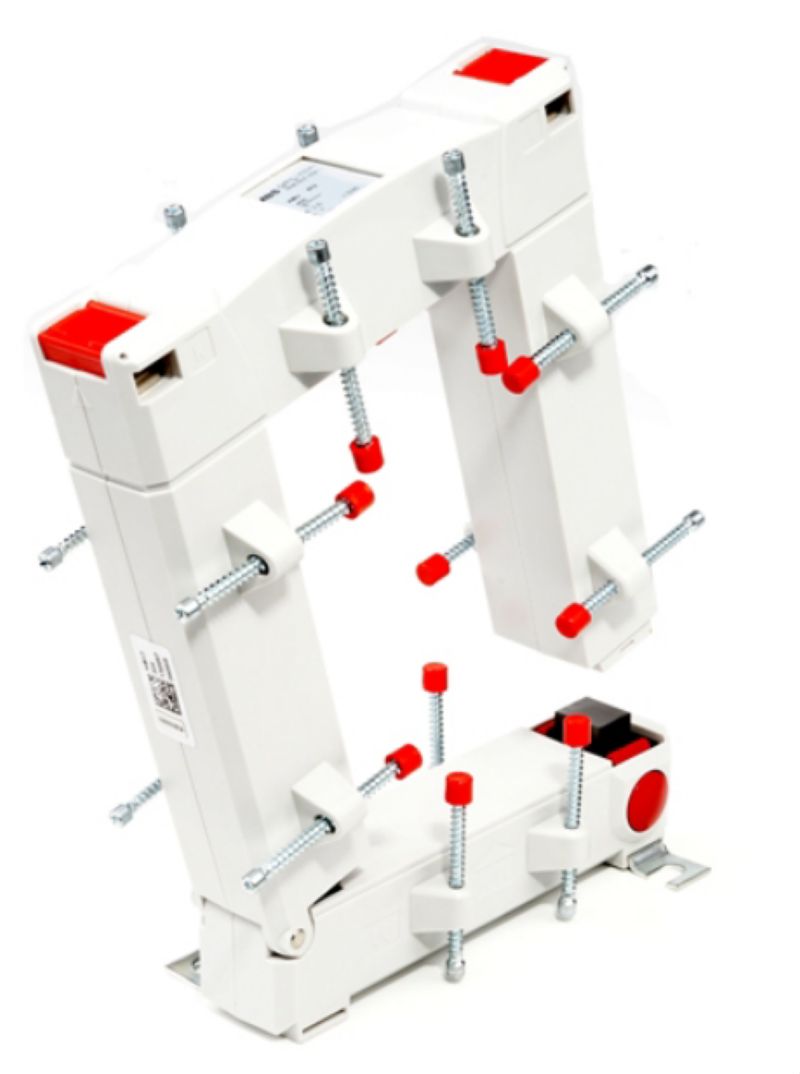

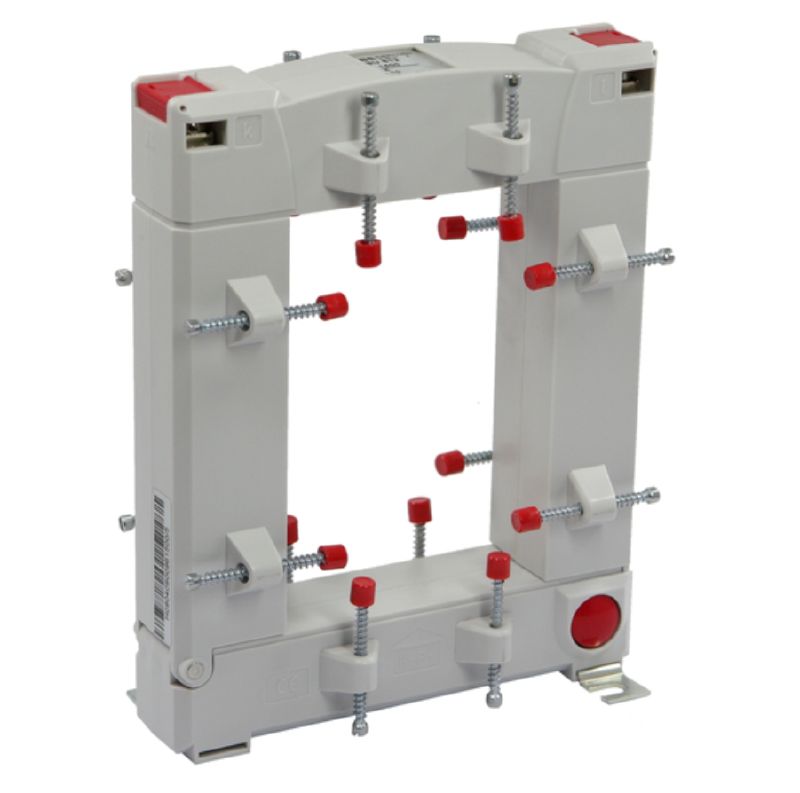

Presenting the KCMA-8-800-5A-25VA-05, a precision-engineered split-core current transformer tailored for reliable current measurement It boasts a primary current capacity of 800 A and a maximum secondary output of 5 A, paired with a load handling ability of 25 VA With a tolerance class rating of 05, this device also meets RoHS compliance standards Designed specifically for indoor applications, it offers a protection degree of IP20, ensuring durability and safety in its operational environment.
Features and Benefits:
•Compliant without exemption to RoHS standards.
•Compact split-core design for easy installation.
•Suitable for indoor applications.
Specifications:
| Primary current | 800 A |
| Secondary current | 0...5 A |
| Load | 2.5 VA |
| Tolerance class | 0.5 |

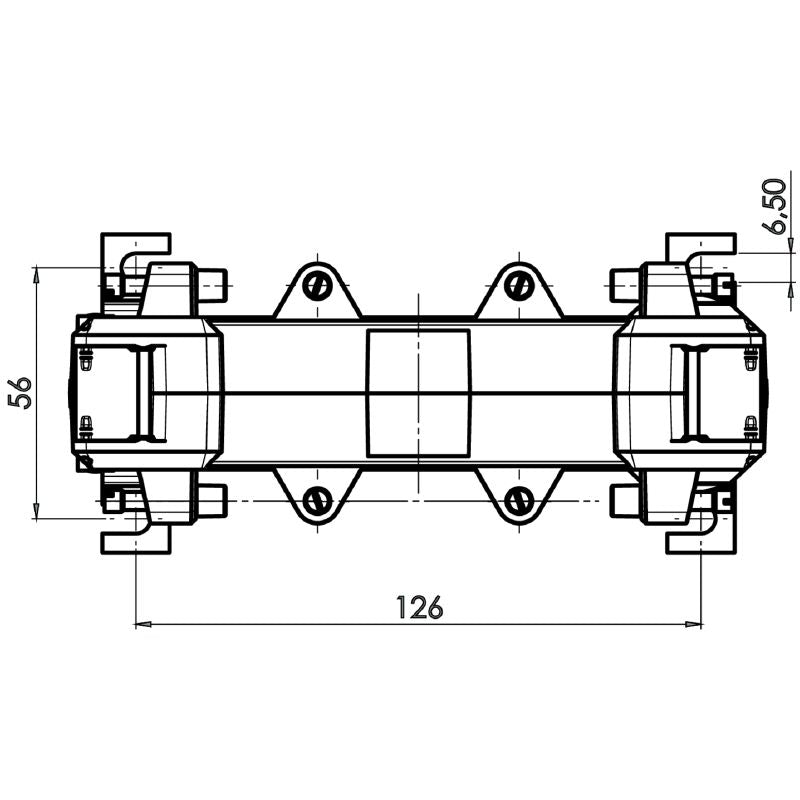

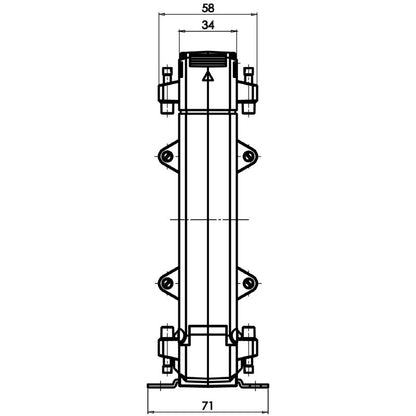

| Dimensions (Depth) | 58 mm |

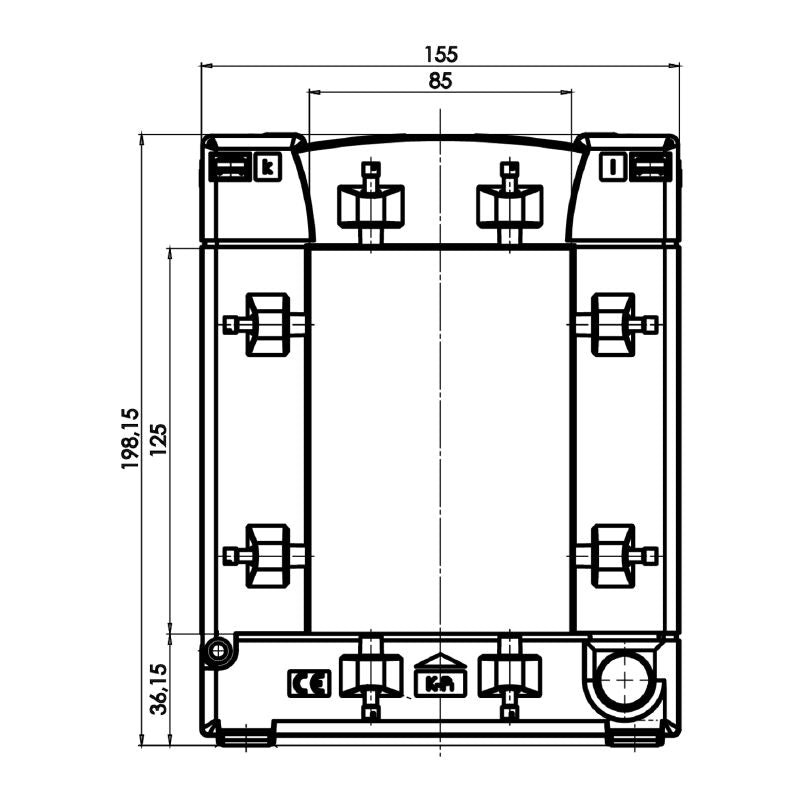

| Dimensions (Height) | 198 mm |
| Dimensions (Width) | 155 mm |
| Cable length | 0.5 m |
| Nominal frequency | 50 Hz |
| Operating temperature | -5 °C to 40 °C |
| Protection degree | IP20 |
| Insulation coordination | IEC 61869-1: 2007; IEC 61869-2: 2012 |
