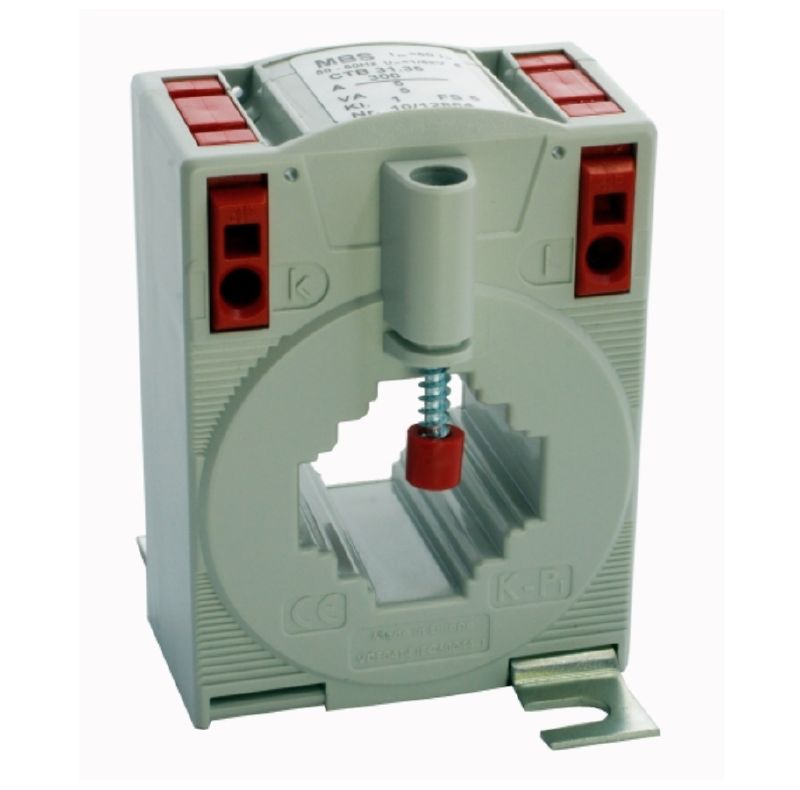

1482070000 - Closed Current Transformer 500A, 5A, 0.5 Accuracy
1482070000 - Closed Current Transformer 500A, 5A, 0.5 Accuracy
SKU: SKU: 1482070000 Download PDF
- 1482070000 - Closed Current Transformer 500A, 5A, 0.5 Accuracy
- 1482070000 - Closed Current Transformer 500A, 5A, 0.5 Accuracy
Couldn't load pickup availability
Description:
Introducing the CMA-31-500-5A-5VA-05, a state-of-the-art closed current transformer, expertly engineered to accommodate a primary current of 500 A With a maximum secondary current of 5 A and a load capacity of 5 VA, this transformer promises efficient performance Its tolerance class of 05 guarantees precise and dependable measurements, making it an essential tool for reliable electrical applications.
Features and Benefits:
•Compliant with RoHS without exemption.
•Suitable for indoor use.
•Insulated conductor type only.
•Installation on various rail sizes including 20x20 mm, 25x12 mm, and 30x10 mm.
Specifications:

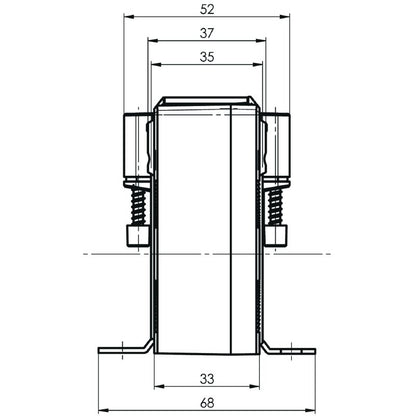

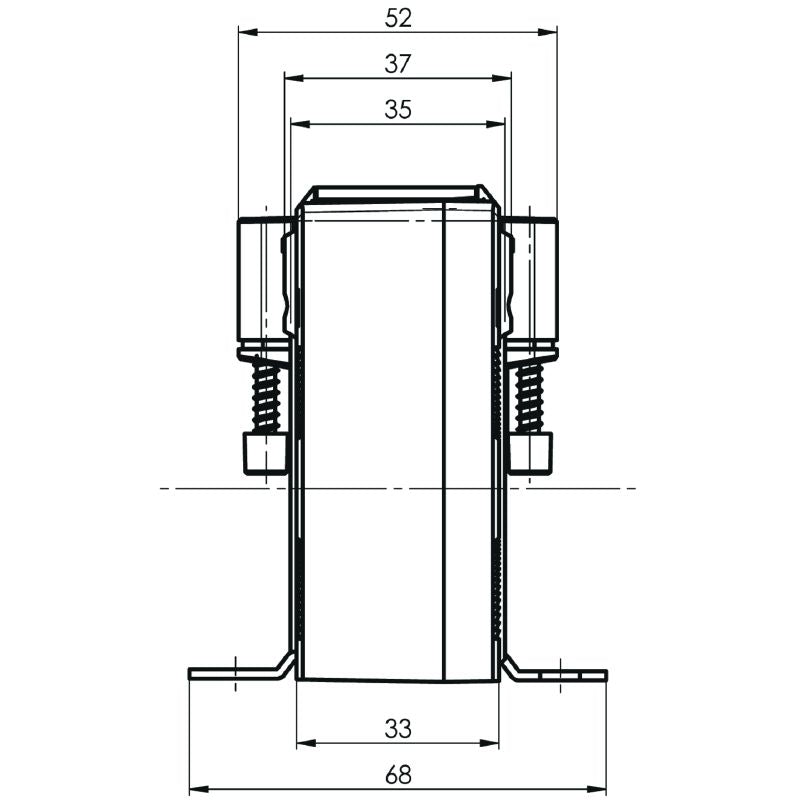

| Depth | 52 mm |
| Height | 80.9 mm |
| Width | 60 mm |
| Storage temperature | -25 °C to 70 °C |
| Operating temperature | -5 °C to 50 °C |
| Load | 5 VA |
| Primary current | 500 A |
| Secondary current | 0...5 A |
| Tolerance class | 0.5 |
| Insulation class | E |
| Nominal frequency | 50 Hz |
| Protection degree | IP20 |
| Thermal rated continuous current I thermal | 1.2 x I rated |
| Insulation coordination Standard | IEC 61869-1: 2007, IEC 61869-2: 2012 |
| GTIN (EAN) | 4050118291100 |
| Order No. | 1482070000 |
| Manufacturer | MBS AG |
| ETIM classification | EC002048 |
| ECLASS version | 27-21-09-02 |
