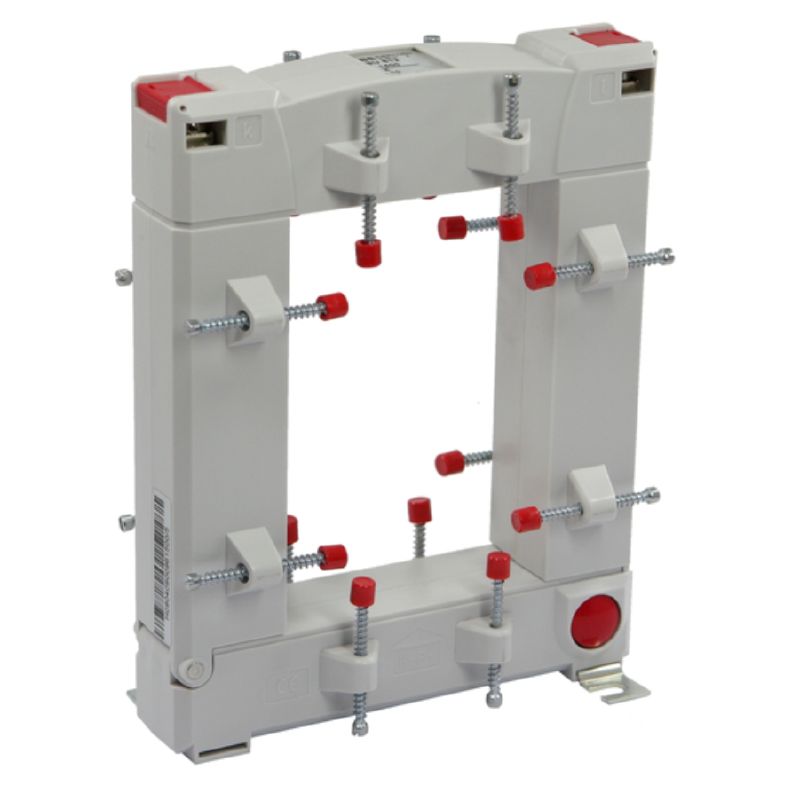

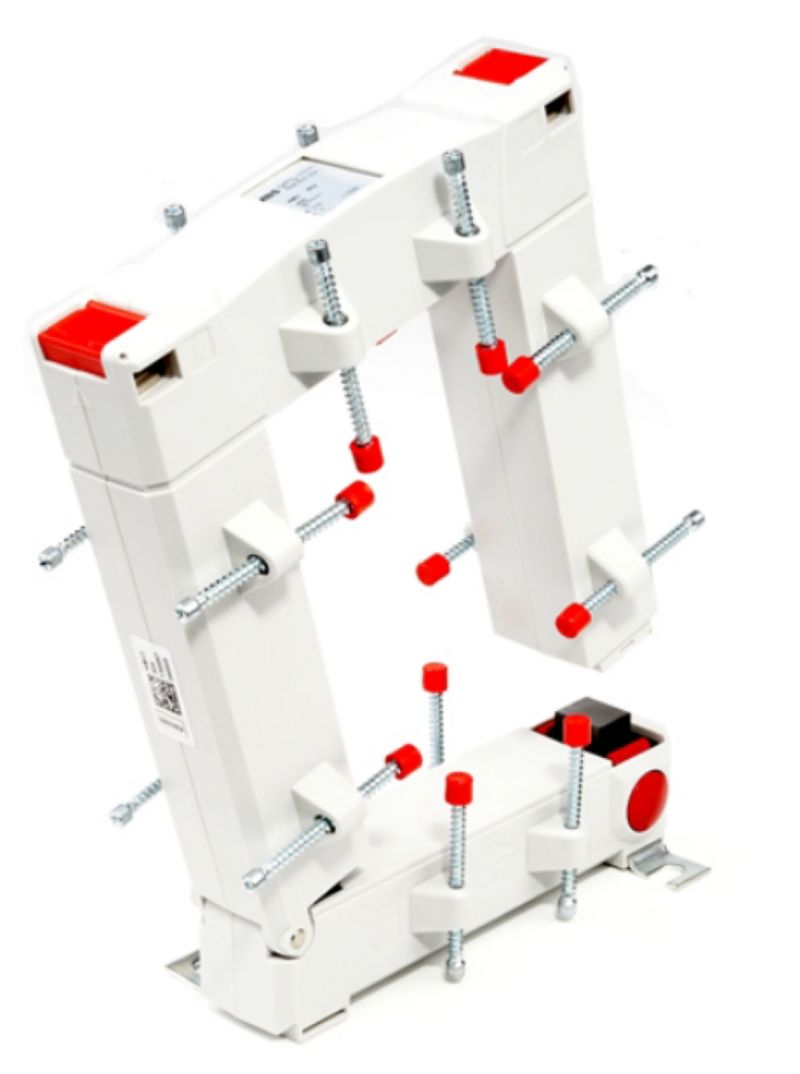

2728110000 - 750A Split-Core Current Transformer, 5A, 2VA
2728110000 - 750A Split-Core Current Transformer, 5A, 2VA
SKU: SKU: 2728110000 Download PDF
- 2728110000 - 750A Split-Core Current Transformer, 5A, 2VA
- 2728110000 - 750A Split-Core Current Transformer, 5A, 2VA
Couldn't load pickup availability
*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color
Description:
Introducing the KCMA-8-750-5A-2VA1 split-core current transformer, an essential tool for precise measurement and monitoring Capable of handling a primary current of 750 A and a maximum secondary current of 5 A, this device is designed with a load rating of 2 VA With its tolerance class of 1, you can trust its accuracy Furthermore, it complies with RoHS environmental standards, ensuring it meets safety regulations for eco-conscious users.
Features and Benefits:
•Indoor use only.
•Compliant with RoHS standards without exemption.
•Insulation class E.
•IP20 protection degree.
•Nominal frequency of 50 Hz.
Specifications:
| Primary current: | 750 A |
| Secondary current max.: | 5 A |
| Load: | 2 VA |
| Tolerance class: | 1 |

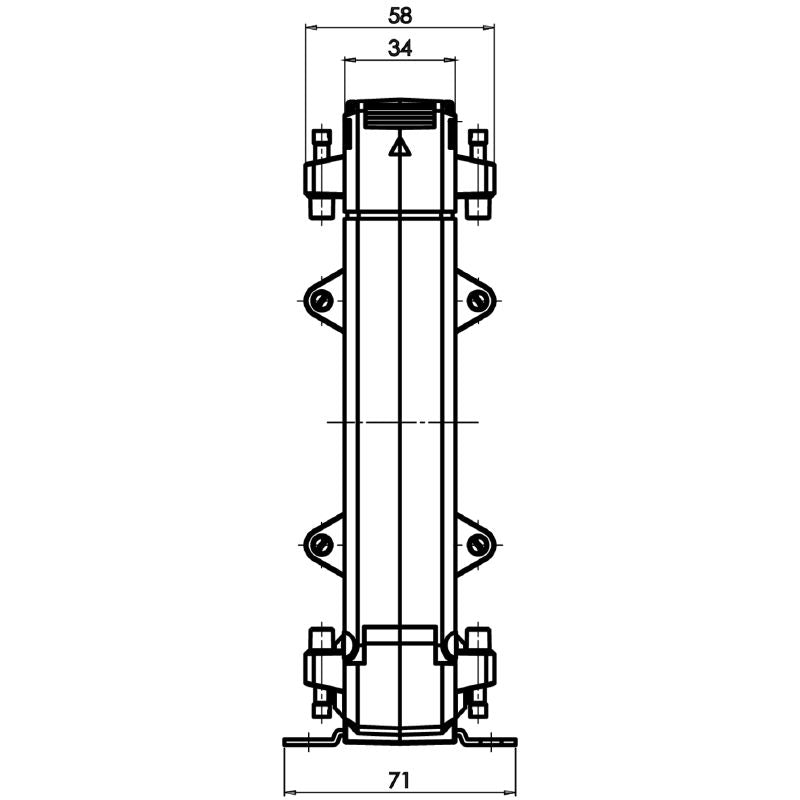

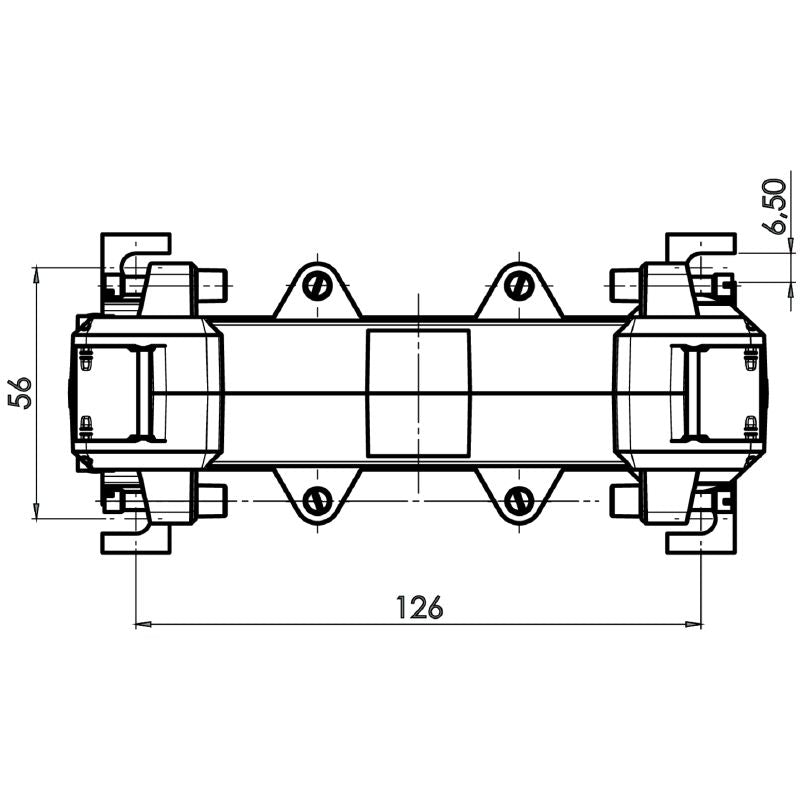

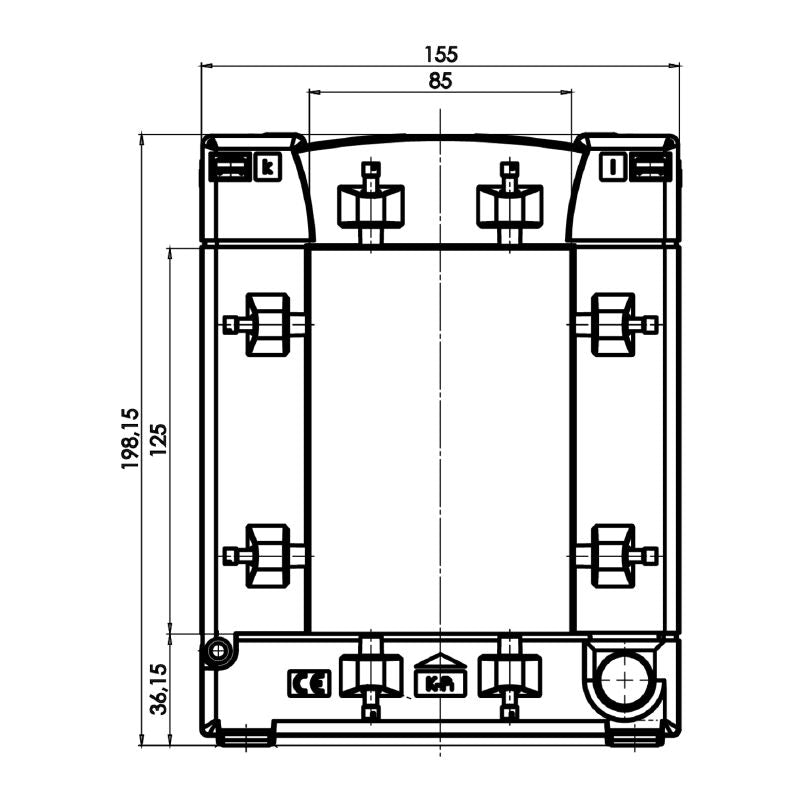

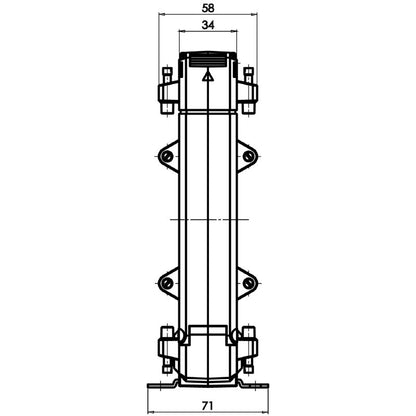

| Depth: | 58 mm |
| Height: | 198 mm |
| Width: | 155 mm |
| Insulation coordination Standard: | EN 60044/1 |
| Thermal rated continuous current I thermal: | 1.2 x I rated |
