2753040000 - 200A Split-Core Current Transformer, 5A, 1.5VA, Indoor Use
2753040000 - 200A Split-Core Current Transformer, 5A, 1.5VA, Indoor Use
SKU: SKU: 2753040000 Download PDF
- 2753040000 - 200A Split-Core Current Transformer, 5A, 1.5VA, Indoor Use
- 2753040000 - 200A Split-Core Current Transformer, 5A, 1.5VA, Indoor Use
Couldn't load pickup availability
*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color
Description:
Optimize your electrical measurements with this split-core current transformer, engineered for dependable performance It supports a primary current of 200 A and a maximum secondary current of 5 A, making it versatile for various applications With a load capacity of 15 VA and a tolerance class of 1, this transformer is perfect for accurate readings Designed for indoor use, it functions efficiently within a temperature range from -5 °C to 50 °C.
It also adheres to RoHS standards, containing no SVHC substances exceeding 01 wt%.
Features and Benefits:
•Primary current of 200 A.
•Secondary current capacity of up to 5 A.
•Load rating of 1.5 VA.
•Designed for indoor use.
•RoHS compliant.
Specifications:

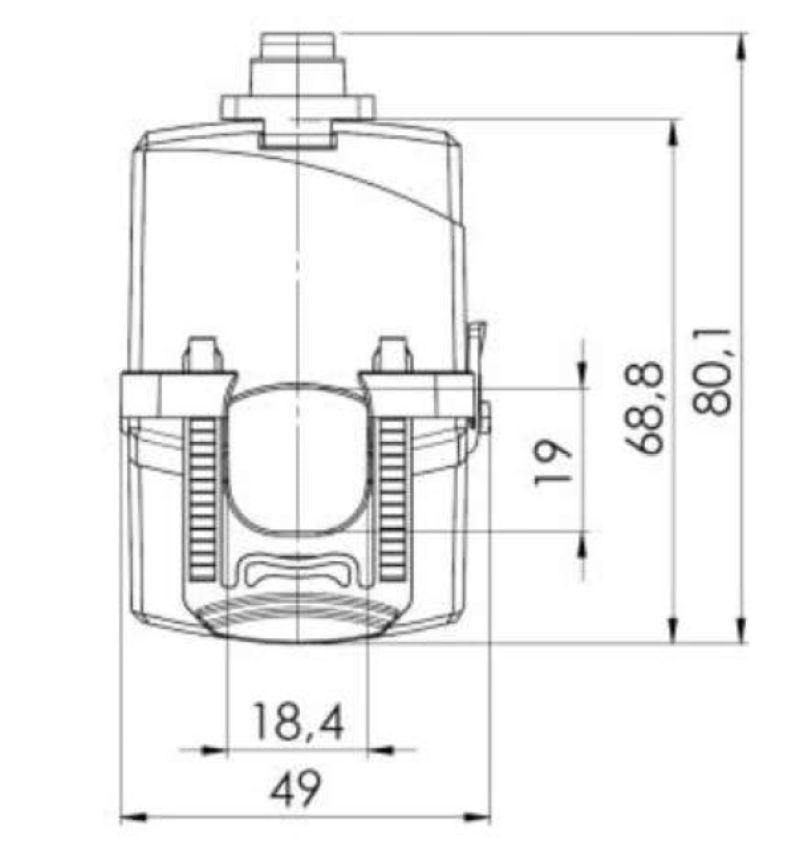

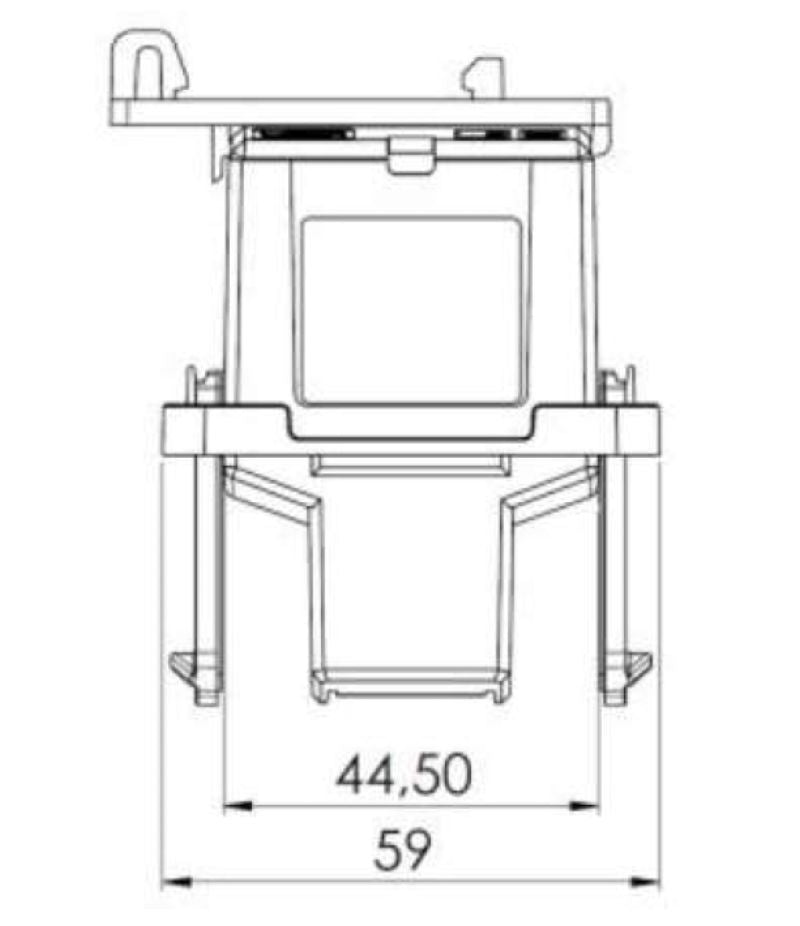

| Physical Dimensions | {'Depth': '59 mm', 'Height': '80.1 mm', 'Width': '49 mm', 'Weight': '151 g'} |
| Electrical | {'Tolerance class': '1', 'Load': '1.5 VA', 'Primary current': '200 A', 'Secondary current': '0...5 A'} |
| Temperature | {'Operating temperature': '-5 °C to 50 °C'} |
| Protection | {'Protection degree': 'IP20'} |
| Installation | {'Type of conductor': 'Insulated conductor only', 'Round conductor': '18.5 mm'} |
| Compliance | {'RoHS Compliance Status': 'Compliant without exemption'} |
