Description:

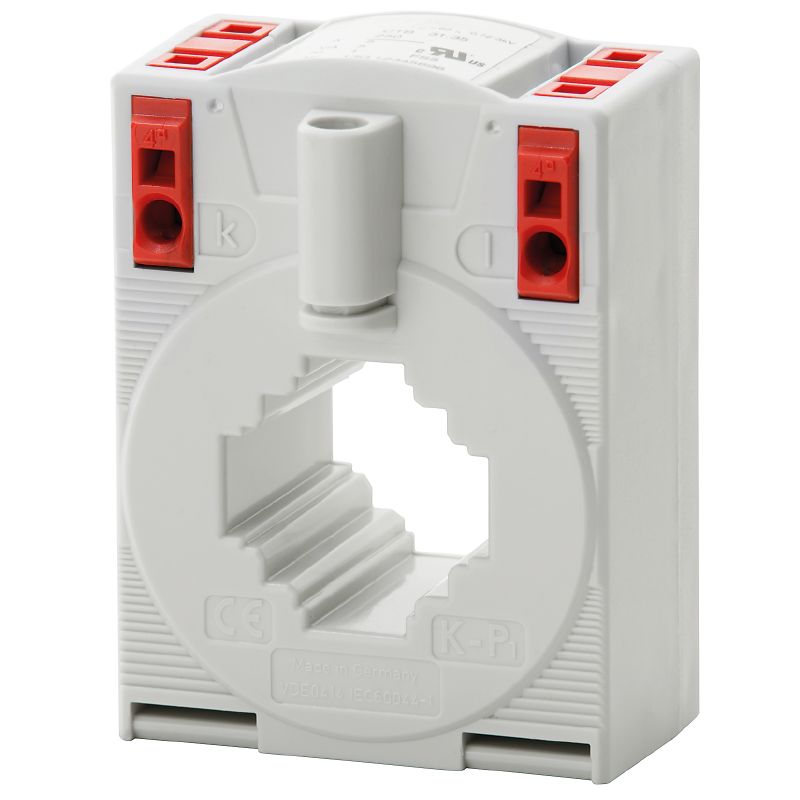

Introducing the CMA-31-75-5A-2,5VA-1, a reliable closed current transformer with a primary current rating of 75 A It provides a maximum secondary current of 5 A and boasts a load capacity of 25 VA This transformer meets the precision standards of tolerance class 1 and is fully compliant with RoHS regulations, making it a great choice for environmentally conscious applications Perfectly suited for use in indoor settings, this product is designed for versatility and efficiency.
Features and Benefits:
•RoHS compliant without exemption.
•Indoor use.
•Insulated conductor only.
Specifications:
| Primary current | 75 A |
| Secondary current | 0...5 A |
| Load | 2.5 VA |
| Tolerance class | 1 |
| Insulation class | E |
| Nominal frequency | 50 Hz |
| Protection degree | IP20 |
| Storage temperature | -25 °C...70 °C |
| Operating temperature | -5 °C...50 °C |

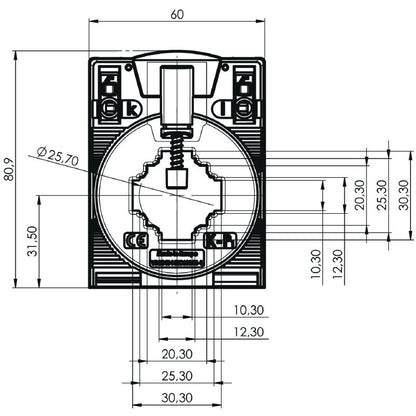

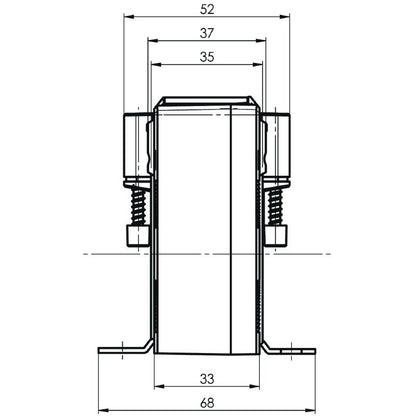

| Depth | 52 mm |
| Height | 80.9 mm |
| Width | 60 mm |
| Net weight | 295 g |
| Conductor dimensions | Round conductor 25.7 mm, Rail dimensions 20 x 20 mm, 25 x 12 mm, 30 x 10 mm |
| Insulation coordination standard | IEC 61869-1: 2007, IEC 61869-2: 2012 |
