2421020000 - Closed Current Transformer, 200A, 5A, Indoor Use
2421020000 - Closed Current Transformer, 200A, 5A, Indoor Use
SKU: SKU: 2421020000 Download PDF
- 2421020000 - Closed Current Transformer, 200A, 5A, Indoor Use
- 2421020000 - Closed Current Transformer, 200A, 5A, Indoor Use
Couldn't load pickup availability
*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color
Description:
Introducing the CMA-31-200-5A-2,5VA-0,5 closed current transformer, specifically designed for indoor use This reliable transformer can support a primary current of up to 200 A with a maximum secondary current of 5 A, efficiently managing a load of 25 VA Additionally, it meets RoHS compliance requirements, ensuring it adheres to environmental safety standards Ideal for various applications, this transformer combines functionality with eco-friendly design.
Features and Benefits:
•Compliant with RoHS standards.
•Closed current transformer design.
•Suitable for indoor installation.
•Indoor use.
Specifications:

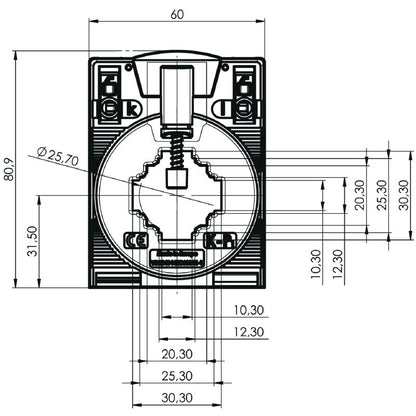

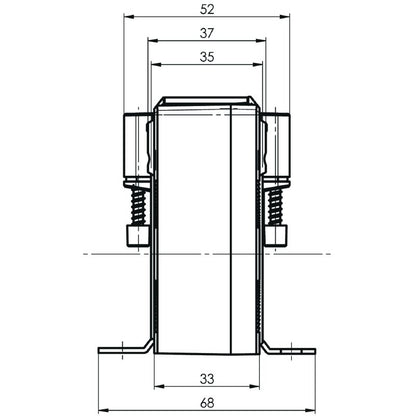

| Dimensions (Depth x Height x Width): | 52 mm x 80.9 mm x 60 mm |
| Operating temperature: | -5 °C to 50 °C |
| Storage temperature: | -25 °C to 70 °C |
| Load: | 2.5 VA |
| Primary current: | 200 A |
| Secondary current: | 0 to 5 A |
| Tolerance class: | 0.5 |
| Insulation class: | E |
| Nominal frequency: | 50 Hz |
| Protection degree: | IP20 |
| Insulation coordination Standard: | IEC 61869-1: 2007, IEC 61869-2: 2012 |
