Description:
Introducing the CMA-31-750-5A-5VA-1, a reliable closed current transformer designed for indoor applications This transformer supports a primary current of up to 750 A and offers a secondary current maximum of 5 A, operating under a load of 5 VA Built to withstand a temperature range of -5 °C to 50 °C, it meets RoHS standards and ensures safety in its usage With a tolerance class of 1 and an insulated conductor type, this transformer guarantees precision and reliability for your electrical needs.
Features and Benefits:
•Closed current transformer.
•RoHS compliant.
•Designed for indoor use.
Specifications:
| Primary current | 750 A |
| Secondary current | 0...5 A |
| Load | 5 VA |
| Tolerance class | 1 |
| Storage temperature | -25 °C to 70 °C |
| Operating temperature | -5 °C to 50 °C |
| Insulation class | E |
| Nominal frequency | 50 Hz |
| Thermal rated continuous current | 1.2 x I rated |
| Insulation coordination | IEC 61869-1: 2007, IEC 61869-2: 2012 |

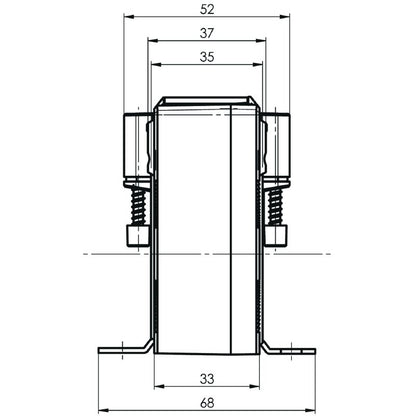

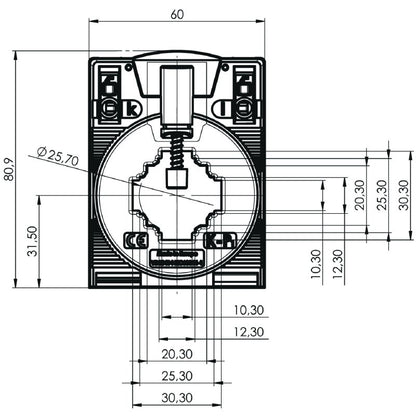

| Dimensions | Depth: 52 mm, Height: 80.9 mm, Width: 60 mm |
| Dimensions of live conductors | 25.7 mm round conductor |
| Rail dimensions | 20 x 20 mm, 25 x 12 mm, 30 x 10 mm |
