2420750000 - Split-Core Current Transformer 250A, 1A, 4VA, Tolerance Class 3
2420750000 - Split-Core Current Transformer 250A, 1A, 4VA, Tolerance Class 3
SKU: SKU: 2420750000 Download PDF
- 2420750000 - Split-Core Current Transformer 250A, 1A, 4VA, Tolerance Class 3
- 2420750000 - Split-Core Current Transformer 250A, 1A, 4VA, Tolerance Class 3
Couldn't load pickup availability
*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color
Description:
Introducing the KCMA-18-250-1A-4VA-3 split-core current transformer, engineered for precision in measuring primary currents up to 250 A and secondary currents at a maximum of 1 A With a load capacity of 4 VA, this transformer is rated within tolerance class 3, guaranteeing reliable and accurate performance It meets RoHS compliance standards, making it an excellent choice for indoor applications.
Features and Benefits:
•Designed for indoor use.
•Complies with RoHS standards.
•Lightweight, with a net weight of 1 g.
Specifications:

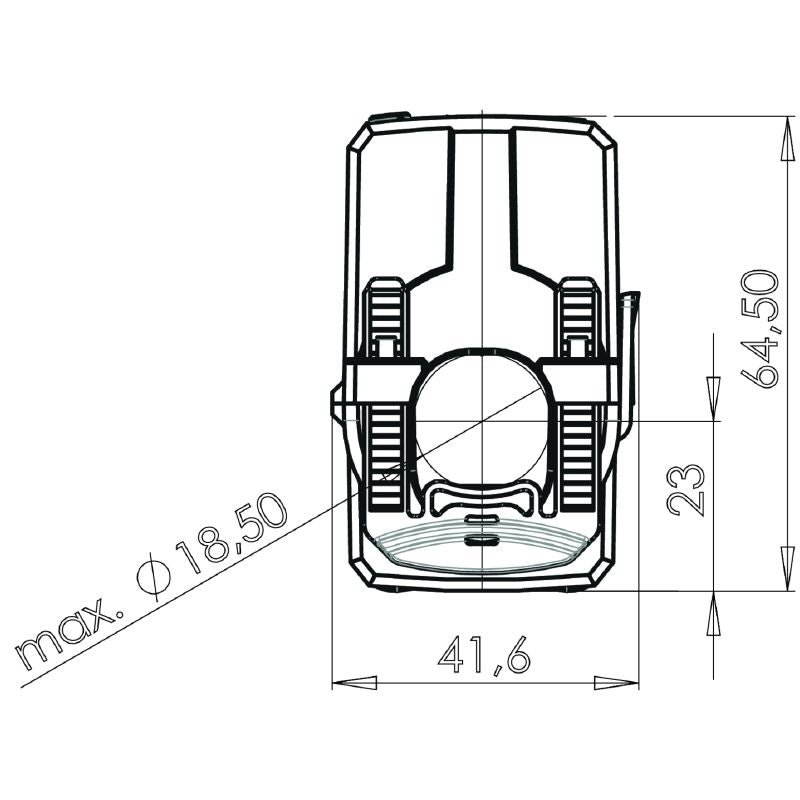

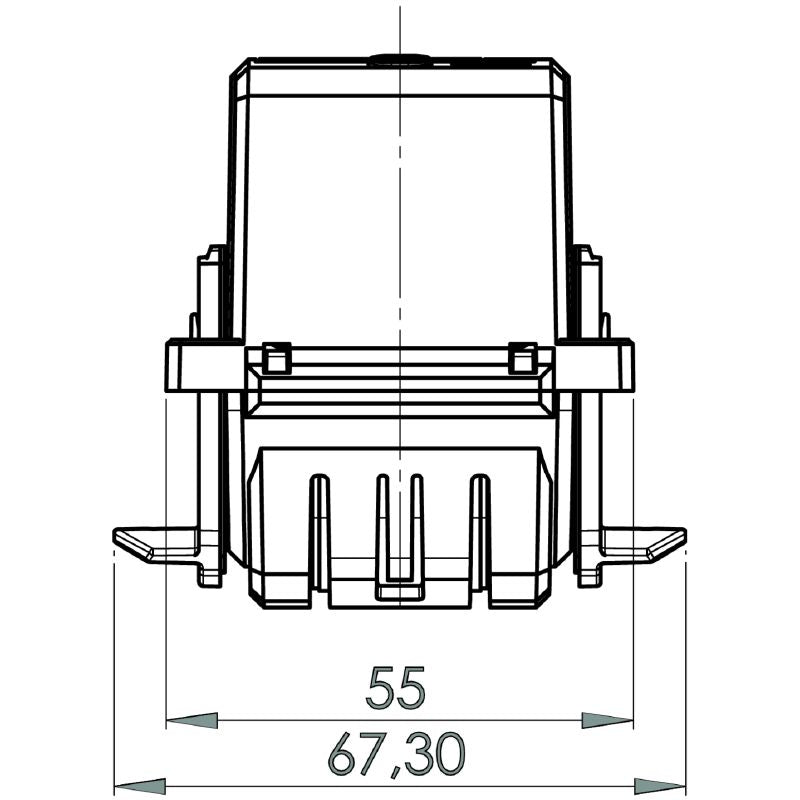

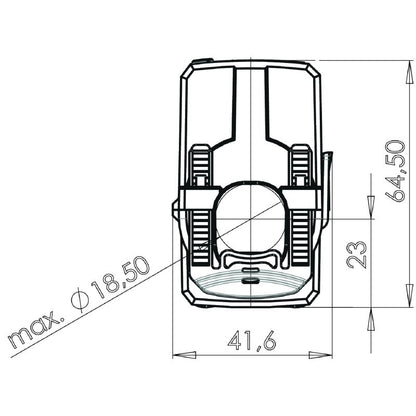

| Depth | 68 mm |
| Height | 64.5 mm |
| Width | 41.6 mm |
| Storage temperature | -25 °C to 70 °C |
| Operating temperature | -5 °C to 50 °C |
| Load | 4 VA |
| Primary current | 250 A |
| Secondary current | 0...1 A |
| Tolerance class | 3 |
| Insulation class | E |
| Nominal frequency | 50 Hz |
| Protection degree | IP20 |
| Thermal rated continuous current I thermal | 1.2 x I rated |
| Insulation coordination | IEC 61869-1: 2007, IEC 61869-2: 2012 |
