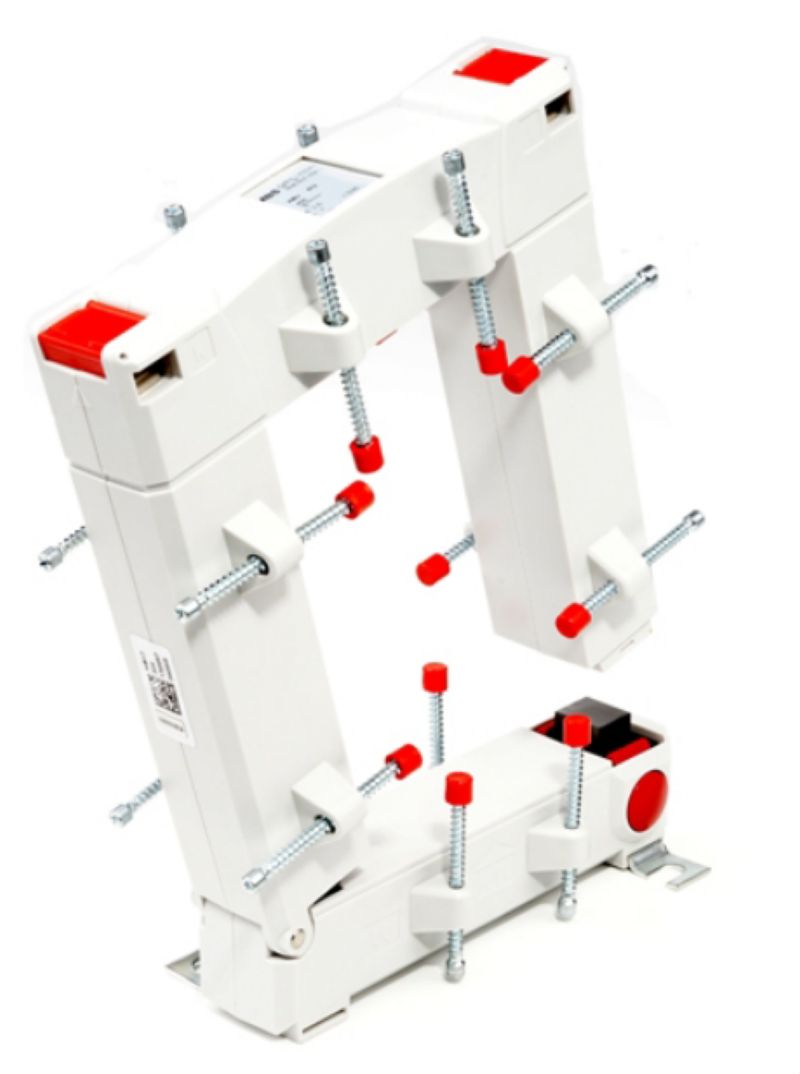

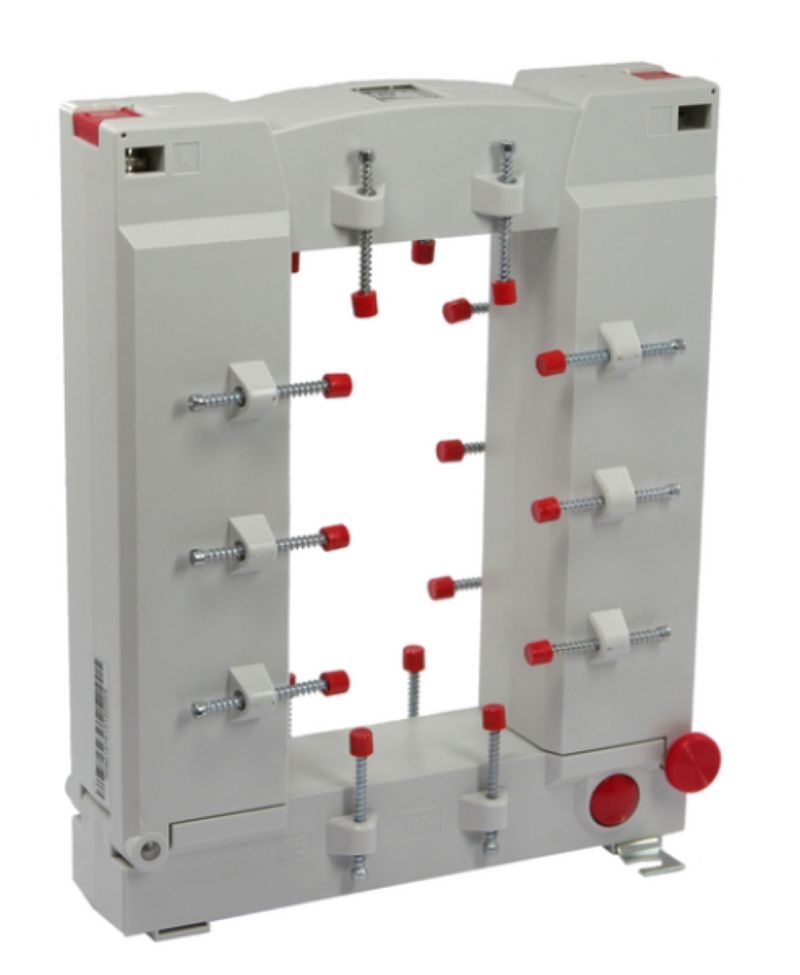

2728190000 - 4000A Split-Core Current Transformer for Precise Measurement
2728190000 - 4000A Split-Core Current Transformer for Precise Measurement
SKU: SKU: 2728190000 Download PDF
- 2728190000 - 4000A Split-Core Current Transformer for Precise Measurement
- 2728190000 - 4000A Split-Core Current Transformer for Precise Measurement
Couldn't load pickup availability
*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color
Description:
Discover the KCMA-8-4000-5A-15VA1 current transformer, which offers impressive capabilities with a primary current rating of 4000 A and a secondary current output of 5 A Engineered with a load capacity of 15 VA and classified under tolerance class 1, this transformer is ideal for precise current measurement applications in indoor settings It meets ROHS standards and requires only insulated conductors for operation.
Additionally, this model is fully compliant with no exemptions and is free of any substances of very high concern in concentrations exceeding 01 wt%.
Features and Benefits:
•Designed for use in indoor environments.
•ROHS compliant without exemption.
•Precision measurement with tolerance class 1.

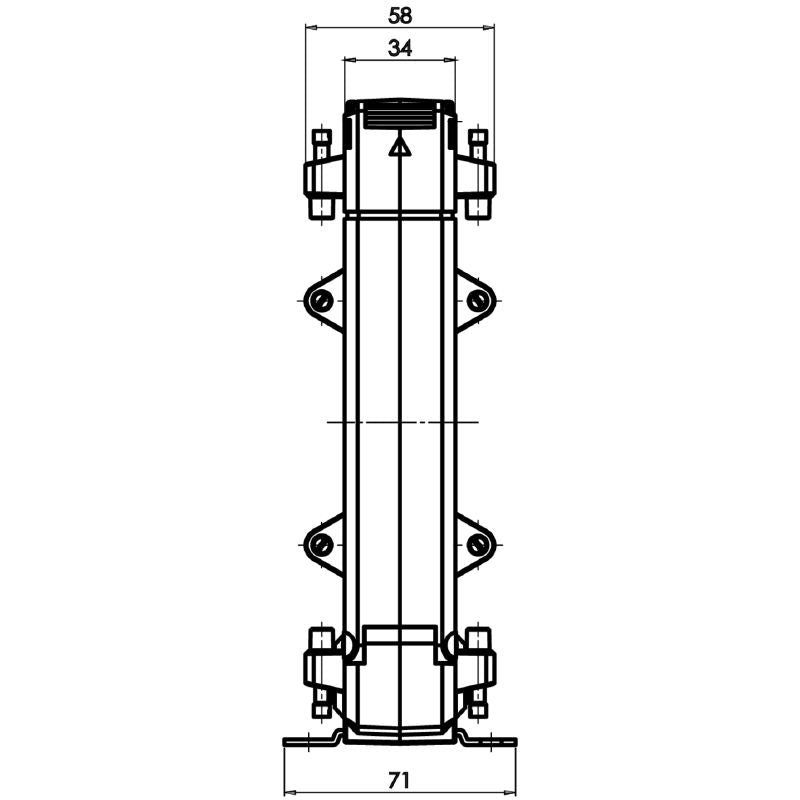

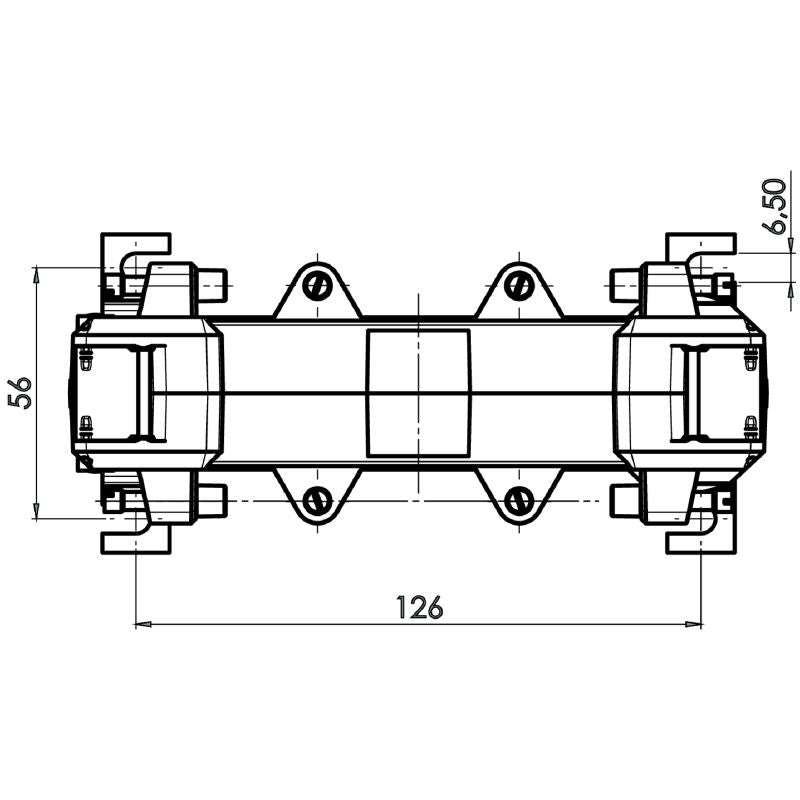

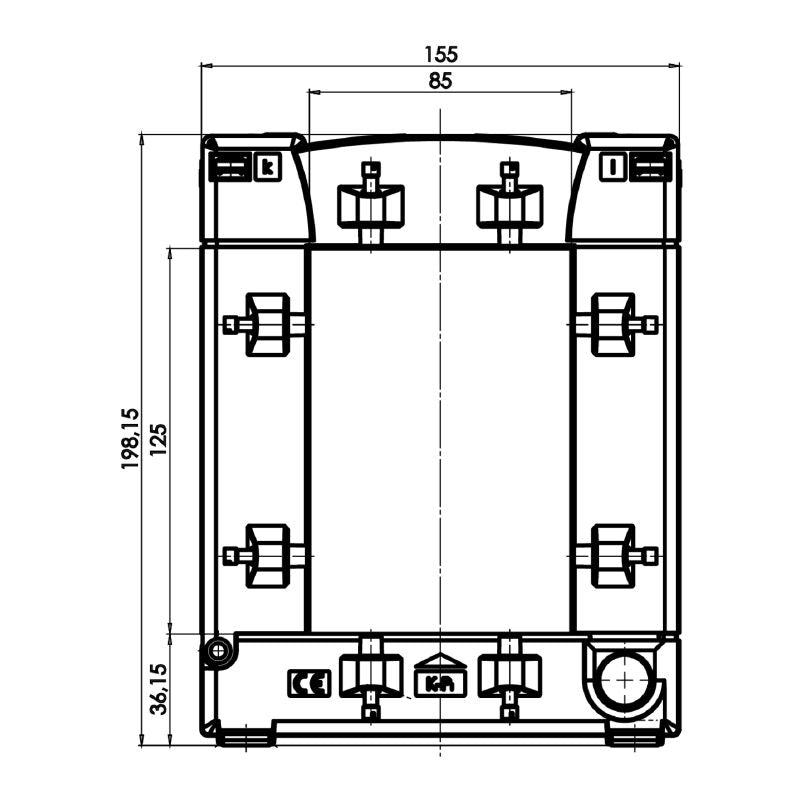

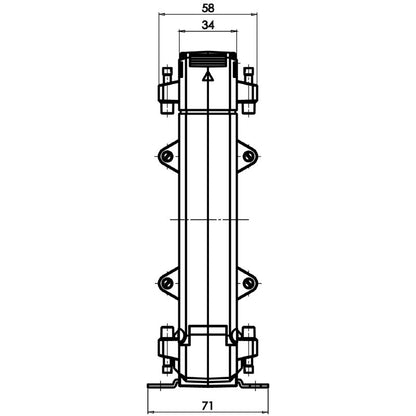

Specifications:
| Primary current | 4000 A |
| Secondary current | 0...5 A |
| Load | 15 VA |
| Depth | 79 mm |
| Height | 243 mm |
| Width | 195 mm |
| Net weight | 3,692.48 g |
| Insulation class | E |
| Nominal frequency | 50 Hz |
| Protection degree | IP20 |
| Thermal rated continuous current I thermal | 1.2 x I rated |
| Insulation coordination Standard | EN 60044/1 |
| Tolerance class | 1 |
