2500870000 - Precision Energy Meter for 1-3 Phase, 5000A, CE/RoHS Certified

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

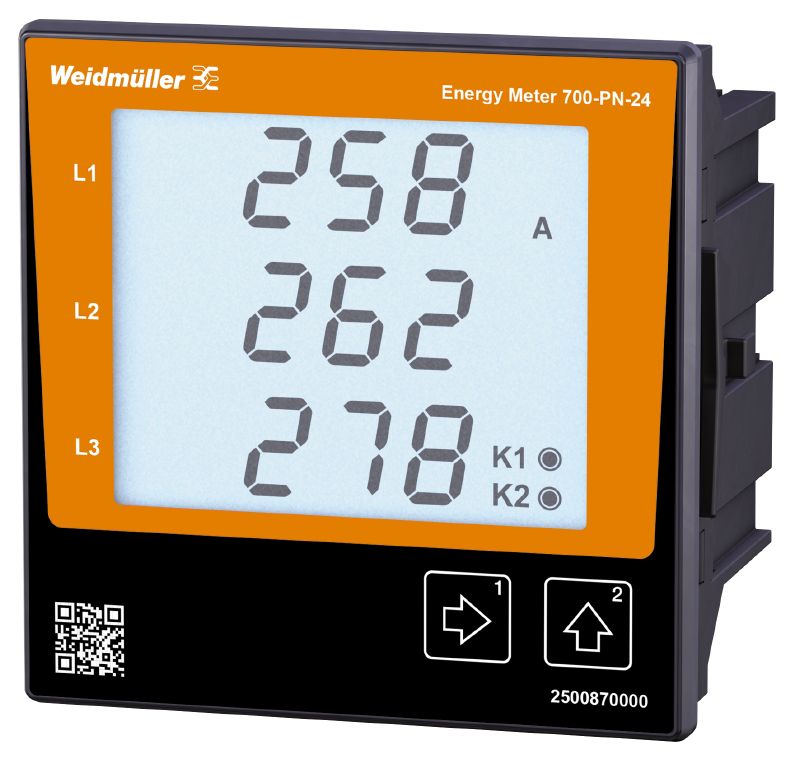

Introducing the ENERGY METER 700-PN-24, your reliable solution for measuring power in both 1-phase and 3-phase mains systems Crafted with a sturdy plastic exterior, this meter complies with both CE and RoHS standards, ensuring safety and quality Equipped with 4 + 2 current-measuring channels, it offers a maximum current capacity of 5000 A, with a rated current of 1 / 5 A Enjoy precise measurements with an accuracy of 0.

2% for current and voltage readings The meter can accommodate L-L and L-N voltage levels of up to 480 V and 277 V, respectively Designed for a wide range of environments, it operates efficiently in temperatures from -10 °C to 55 °C and can handle humidity levels from 0 to 75% RH Make the ENERGY METER 700-PN-24 a part of your monitoring toolkit for accurate power assessment.

Features and Benefits:

•Power measurement/display for 1- and 3-phase mains.

•Memory for minimum and maximum values.

•Integrated logic for data processing.

•LCD display monitoring.

•Frontpanel mounting option.

•Operating-hours counter.

•Compliant with IEC standards and regulations.

Specifications:
