Description:

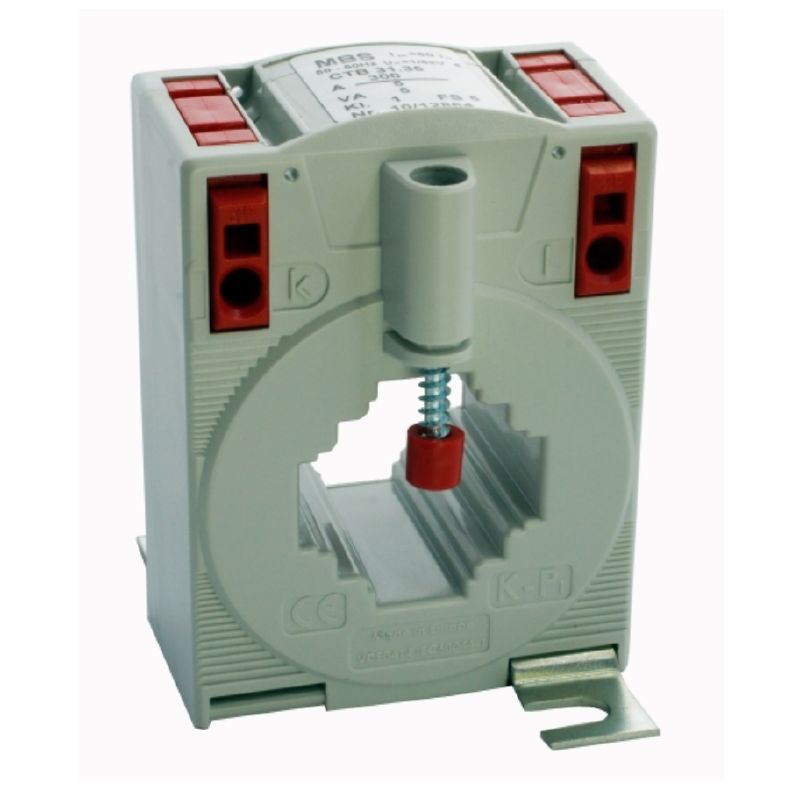

Introducing a closed current transformer engineered for accurate primary and secondary current measurements It can handle a primary current of 150 A and delivers a maximum secondary current of 5 A, making it a reliable choice for various applications With a load capacity of 25 VA and a precision tolerance class of 05, this transformer ensures high performance Plus, it meets RoHS standards, confirming its compliance with environmental regulations.
Features and Benefits:
•Operational for indoor use.
•RoHS compliant.
•Insulated conductor type only.
Specifications:

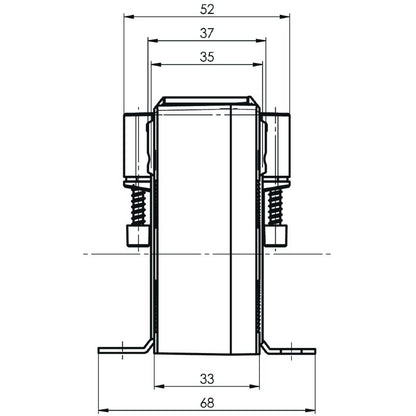

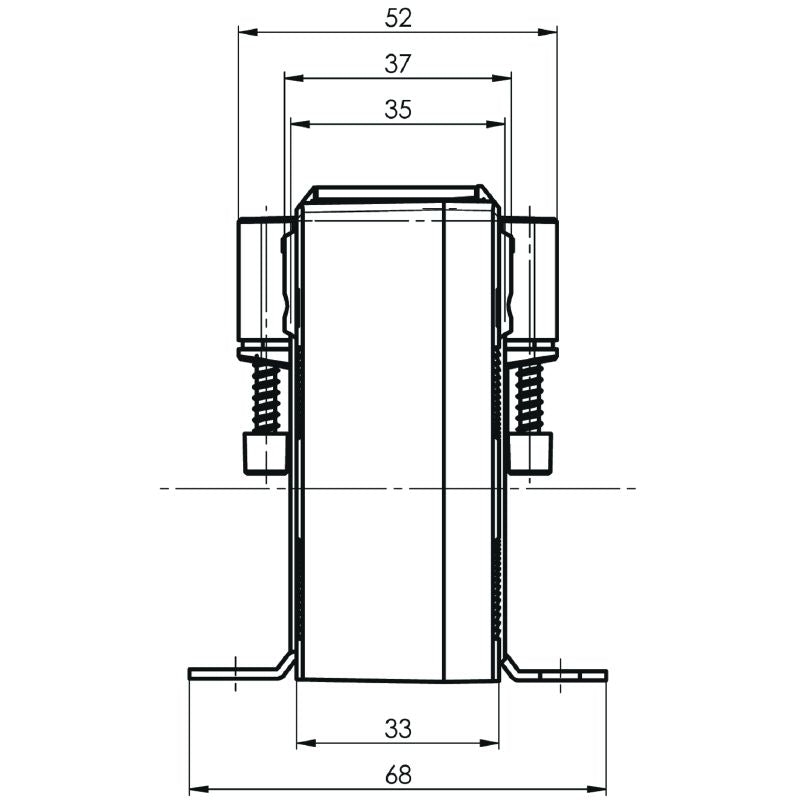

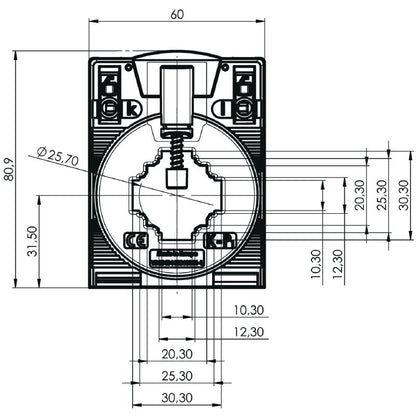

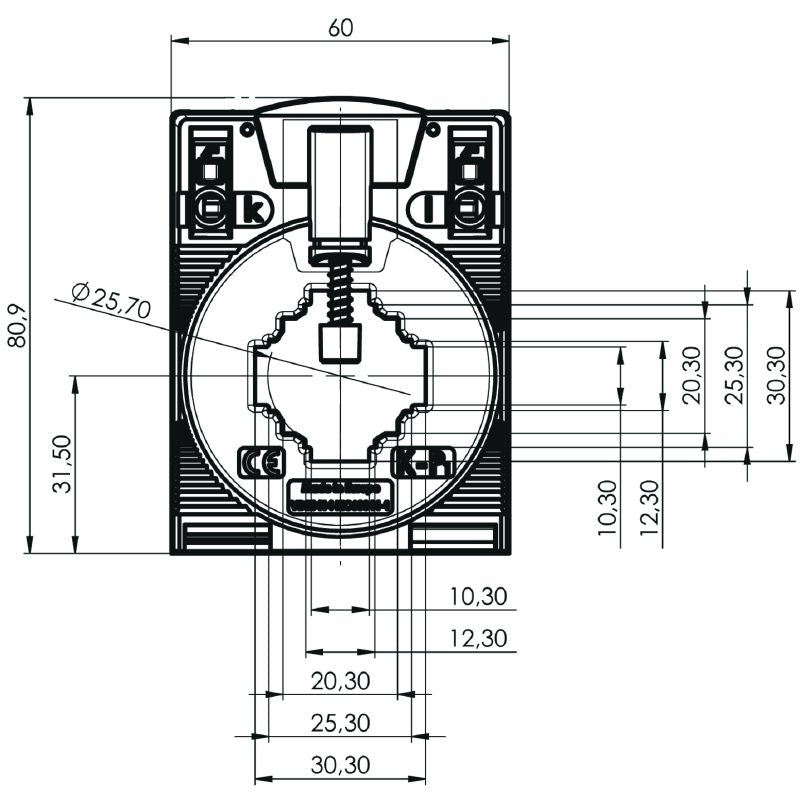

| Depth | 52 mm |
| Height | 80.9 mm |
| Width | 60 mm |
| Storage temperature | -25 °C to 70 °C |
| Operating temperature | -5 °C to 50 °C |
| Load | 2.5 VA |
| Primary current | 150 A |
| Secondary current | 0...5 A |
| Tolerance class | 0.5 |
| Insulation class | E |
| Nominal frequency | 50 Hz |
| Protection degree | IP20 |
| Thermal rated continuous current I thermal | 1.2 x I rated |
| Insulation coordination | IEC 61869-1: 2007, IEC 61869-2: 2012 |
