1481980000 - 600A Split-Core Current Transformer for Indoor Use
1481980000 - 600A Split-Core Current Transformer for Indoor Use
SKU: SKU: 1481980000 Download PDF
- 1481980000 - 600A Split-Core Current Transformer for Indoor Use
- 1481980000 - 600A Split-Core Current Transformer for Indoor Use
Couldn't load pickup availability
*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color
Description:
Introducing the KCMA-32-600-1A-5VA-1 split-core current transformer, engineered for precision with a primary current rating of 600 A and a maximum secondary output of 1 A, boasting a load capacity of 5 VA This transformer adheres to tolerance class 1 standards and meets RoHS compliance, ensuring safety and reliability for your indoor applications It operates efficiently in temperatures from -5 °C to 50 °C and can be stored safely in environments ranging from -25 °C to 70 °C.
Featuring insulated conductors, this unit holds an insulation class of E, making it a robust choice for your electrical needs.
Features and Benefits:
•Split-core design for easy installation.
•Compliant with RoHS without exemption.
•Suitable for indoor applications.
Specifications:
| Primary current | 600 A |
| Secondary current | 0...1 A |
| Load | 5 VA |
| Tolerance class | 1 |
| Cable length | 0.5 m |
| Insulation coordination | IEC 61869-1: 2007, IEC 61869-2: 2012 |
| Protection degree | IP20 |
| Nominal frequency | 50 Hz |

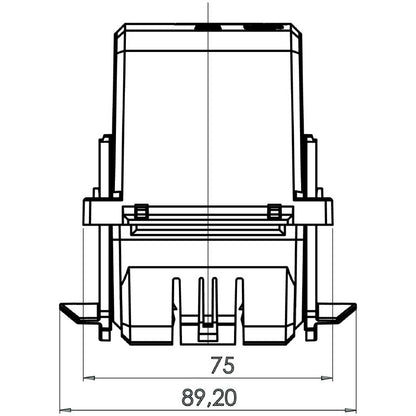

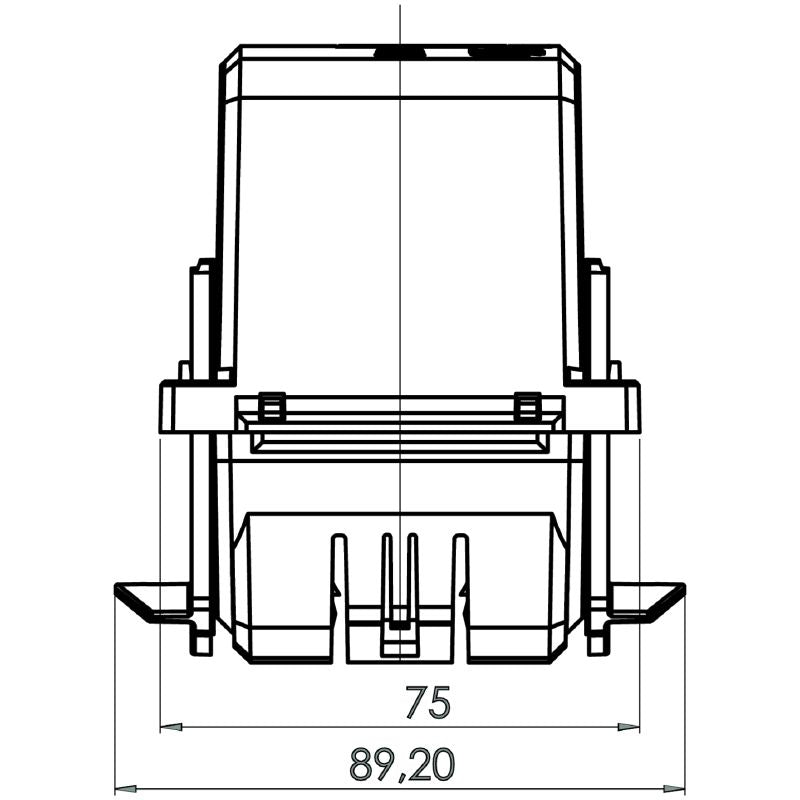

| Depth | 90 mm |

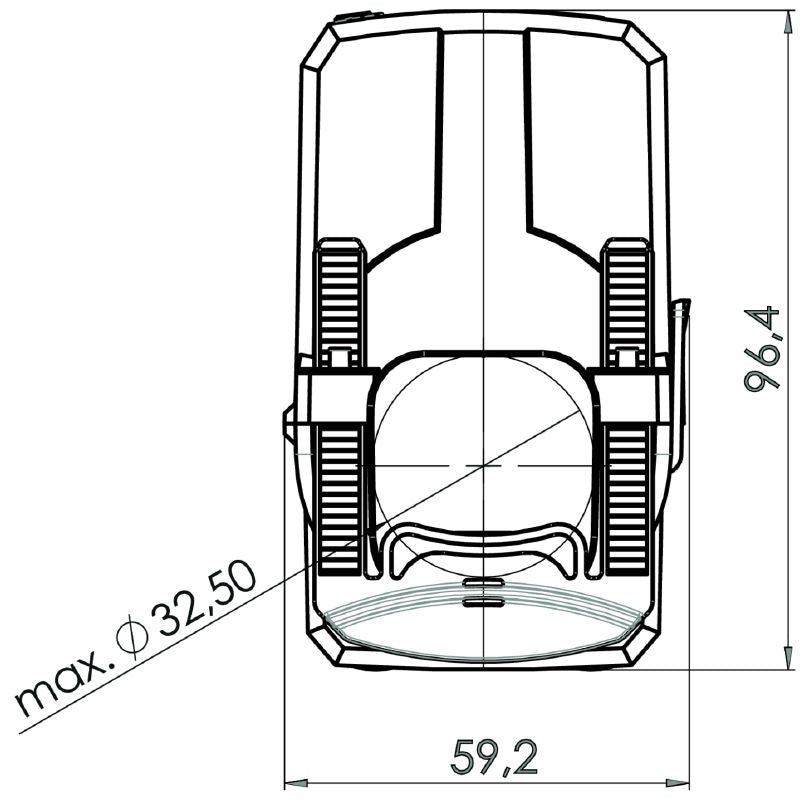

| Height | 96.4 mm |
| Width | 59.2 mm |
| Net weight | 500 g |
