Description:
Introducing the KCMA-44-1000-5A-5VA-1, a precision-engineered split-core current transformer ideal for accurate monitoring and measurement This transformer supports a primary current capacity of 1000 A and can handle a secondary current of up to 5 A, delivering a load rating of 5 VA With a tolerance class of 1, it meets high-performance standards, ensuring reliable operation Fully compliant with RoHS regulations, this unit is optimized for indoor use and is built with specific insulation classes and operational temperatures tailored for dependable performance.
Features and Benefits:
•RoHS compliant without exemption.
•Designed for indoor use.
•Insulation class E.
•Protection degree IP20.
•Nominal frequency 50 Hz.
Specifications:
| Primary current | 1000 A |
| Secondary current | 0...5 A |
| Load | 5 VA |
| Tolerance class | 1 |
| Cable length | 0.5 m |
| Storage temperature | -25 °C to 70 °C |
| Operating temperature | -5 °C to 50 °C |

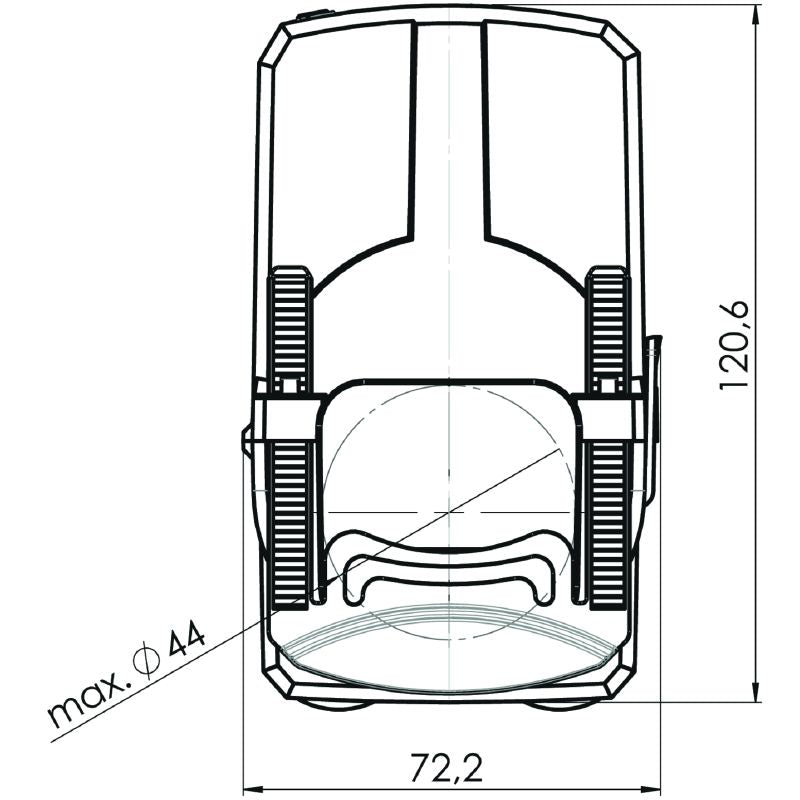

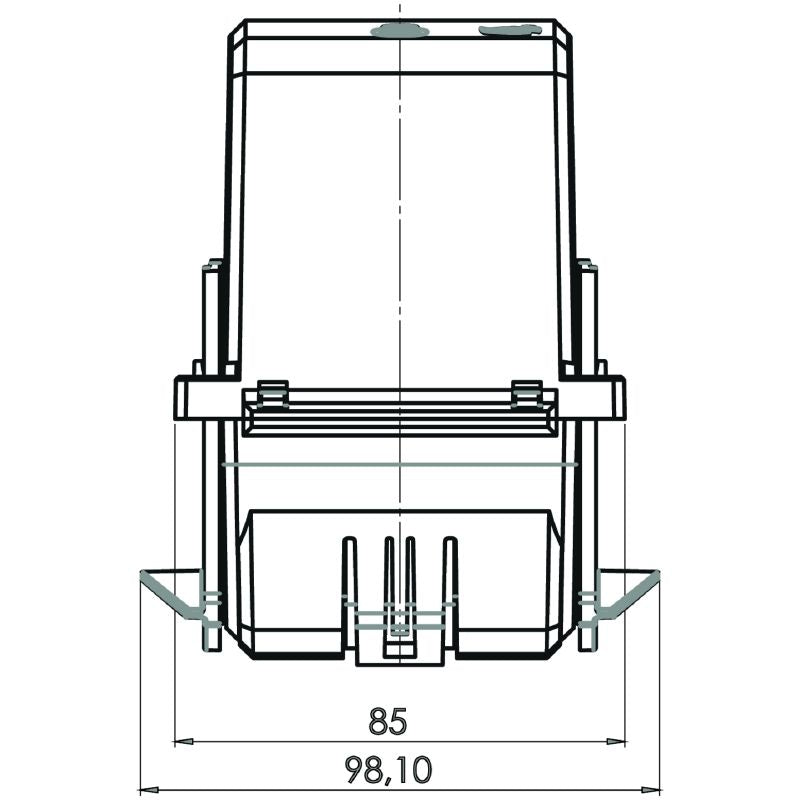

| Depth | 98 mm |
| Height | 120.6 mm |
| Width | 72.2 mm |
| Insulation coordination | IEC 61869-1: 2007, IEC 61869-2: 2012 |
| ETIM classification | EC002048 |
