Description:
Introducing the KCMA-18-150-5A-1VA-1 split-core current transformer, ideal for indoor use This model is rated for a primary current of 150 A, delivering a secondary output of 5 A with a load capacity of 1 VA It meets RoHS compliance standards without exemptions, ensuring safe and eco-friendly operation

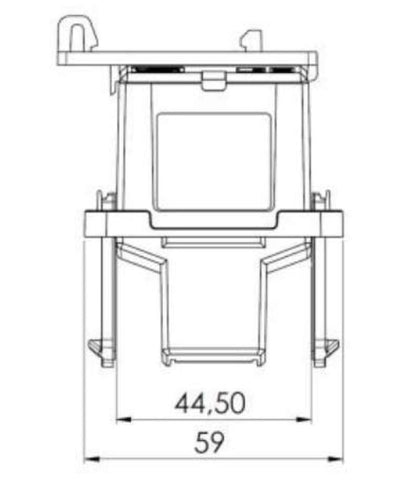

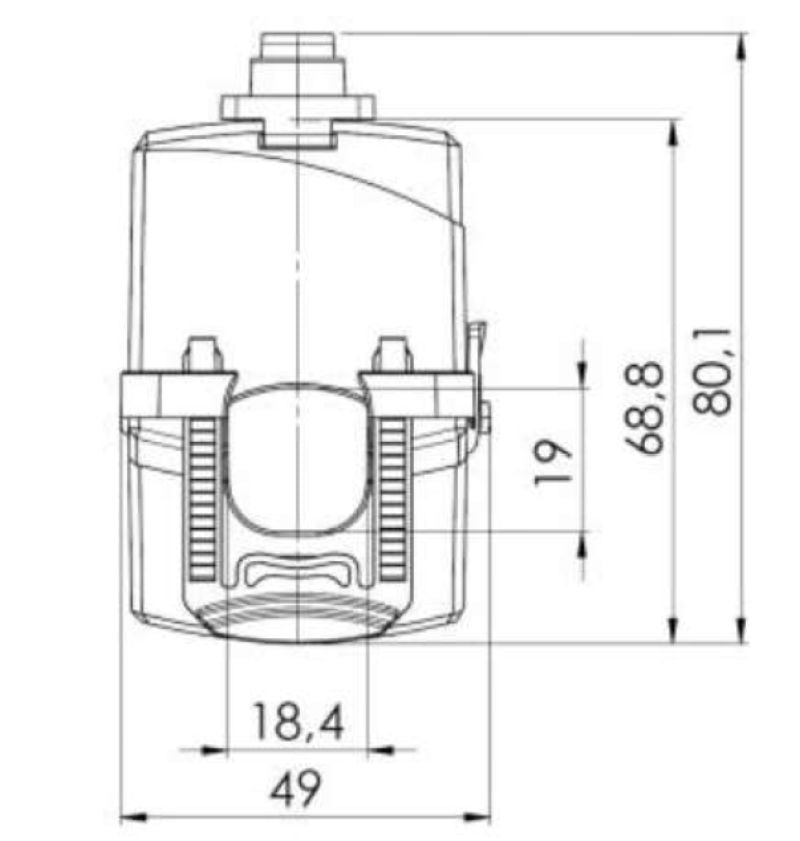

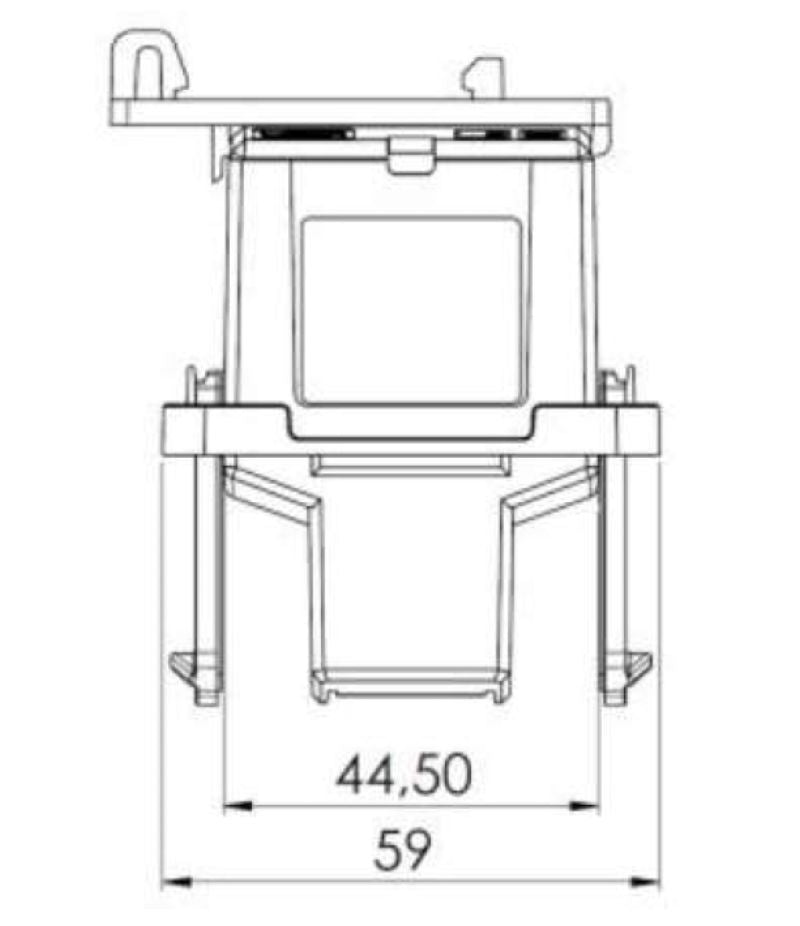

With compact dimensions of 59 mm deep, 801 mm tall, and 49 mm wide, this transformer has a lightweight build, weighing just 293 g.
It operates efficiently in various environments, functioning at temperatures ranging from -5 °C to 50 °C The included insulated conductor accommodates round conductors with a diameter of 185 mm, promoting safe use while remaining within thermal continuous current limits.
Features and Benefits:
•RoHS compliant without exemption.
•Suitable for indoor use.
•Designed for insulated round conductors.
•Complies with multiple ETIM and ECLASS classifications.
Specifications:
| Primary current | 150 A |
| Secondary current | 0...5 A |
| Load | 1 VA |
| Tolerance class | 1 |
| Cable length | 0.5 m |
| Nominal frequency | 50 Hz |
| Protection degree | IP20 |
| Operating temperature | -5 °C to 50 °C |
| Manufacturer | MBS AG |
