Description:

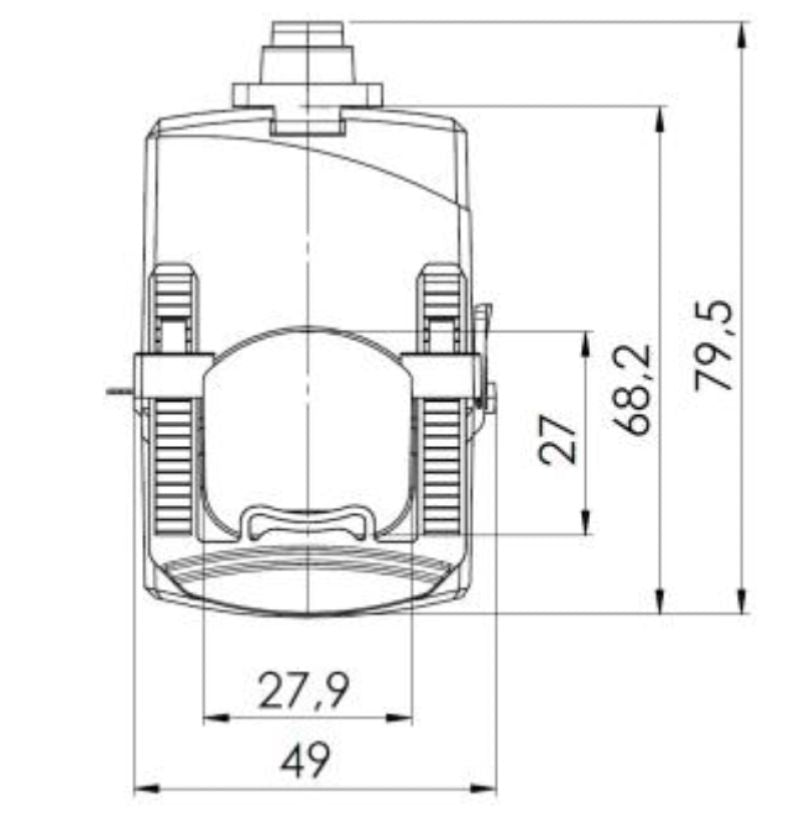

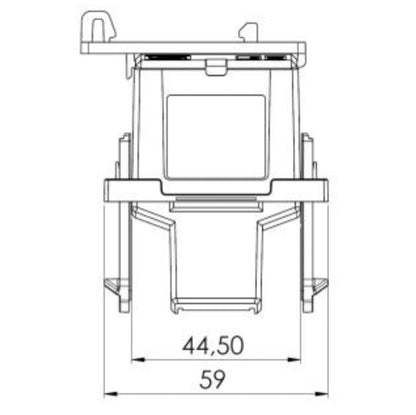

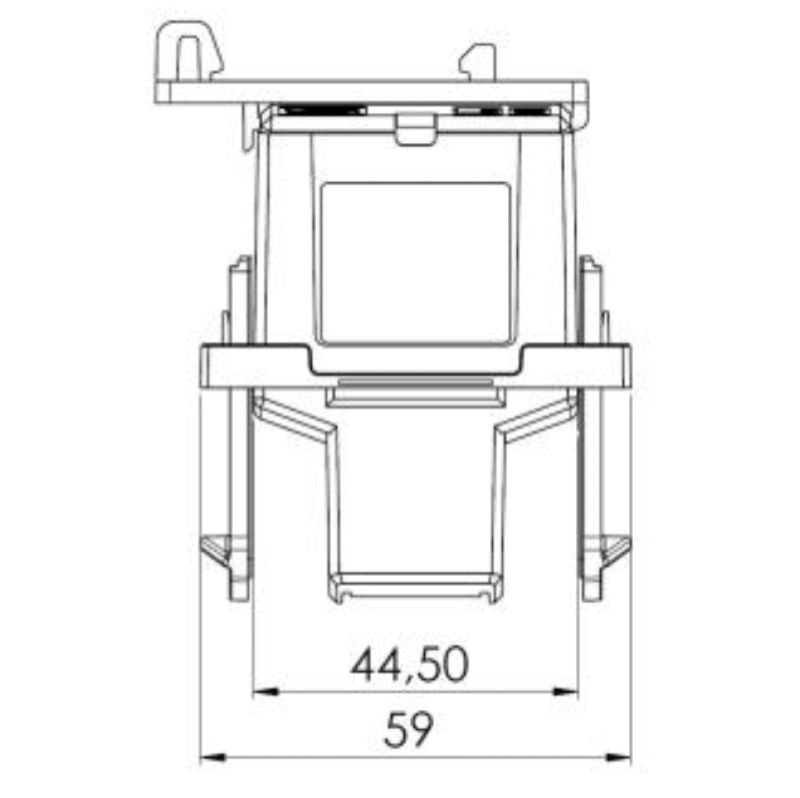

Introducing the split-core current transformer, expertly engineered to manage a primary current of up to 500 A This unit supports a maximum secondary current of 5 A and boasts a load capacity of 3 VA, making it a reliable choice for various applications Compliant with RoHS standards, it assures safety and environmental consideration With a tolerance class of 1, this device is built for precision It is intended for indoor environments and is compactly designed with dimensions of 59 mm in depth, 79.
5 mm in height, and 49 mm in width, tipping the scales at 66616 g.
Features and Benefits:
•RoHS compliant without any exemptions.
•Designed for indoor installation.
•Insulated conductor type only.
•Operating temperature range of -5 °C to 50 °C.
•Protection degree of IP20.
Specifications:
| Primary current | 500 A |
| Secondary current | 0...5 A |
| Load | 3 VA |
| Tolerance class | 1 |
| Cable length | 0.5 m |
| Nominal frequency | 50 Hz |
| Caliber | Insulated conductor only |
| Depth | 59 mm |
| Height | 79.5 mm |
| Width | 49 mm |
| Depth (inches) | 2.323 inch |
| Height (inches) | 3.13 inch |
| Width (inches) | 1.929 inch |
| Net weight | 666.16 g |
