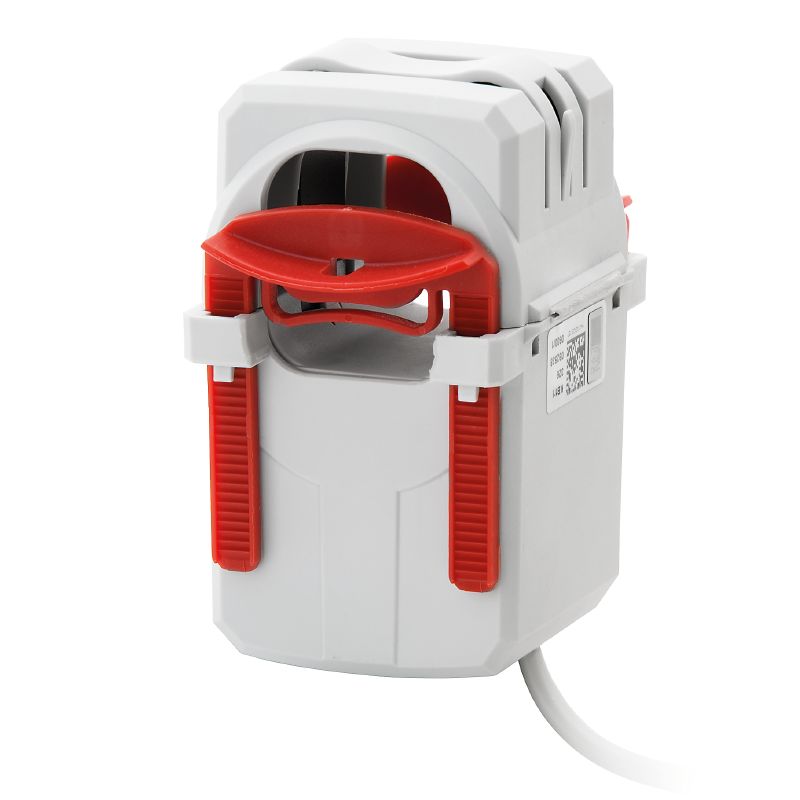

2420740000 - 500A Split-Core Current Transformer, 5VA, Indoor Use

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

This split-core current transformer is engineered to handle primary currents of up to 500 A, with a maximum secondary current of 5 A and a load capacity of 5 VA It adheres to a tolerance class of 1 and meets all RoHS standards, ensuring safe indoor usage Designed with an insulation class E, it operates at a nominal frequency of 50 Hz The transformer features an IP20 protection degree and complies with IEC standards 61869-1: 2007 and 61869-2: 2012, making it a reliable choice for various applications.

Features and Benefits:

•Suitable for indoor use.

•Compliant with RoHS without exemptions.

•Handles primary current up to 500 A.

•Load capacity of 5 VA.

•Insulation class E.

Specifications:
