2556040000 - 40A Closed Current Transformer, 0.3 VA with RoHS Compliance
2556040000 - 40A Closed Current Transformer, 0.3 VA with RoHS Compliance
SKU: SKU: 2556040000 Download PDF
- 2556040000 - 40A Closed Current Transformer, 0.3 VA with RoHS Compliance
- 2556040000 - 40A Closed Current Transformer, 0.3 VA with RoHS Compliance
Couldn't load pickup availability
*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color
Description:
Discover the efficiency of this closed current transformer, engineered to support a primary current of 40 A with a maximum secondary current of 1 A It effectively manages a load of 03 VA and falls under tolerance class 1, ensuring reliable performance Adhering to RoHS standards, this transformer is built to operate efficiently across a range of temperatures, making it versatile for diverse operational environments.
Features and Benefits:
•RoHS compliant.
•Suitable for indoor installation.
•Constructed with insulated conductors.
Specifications:

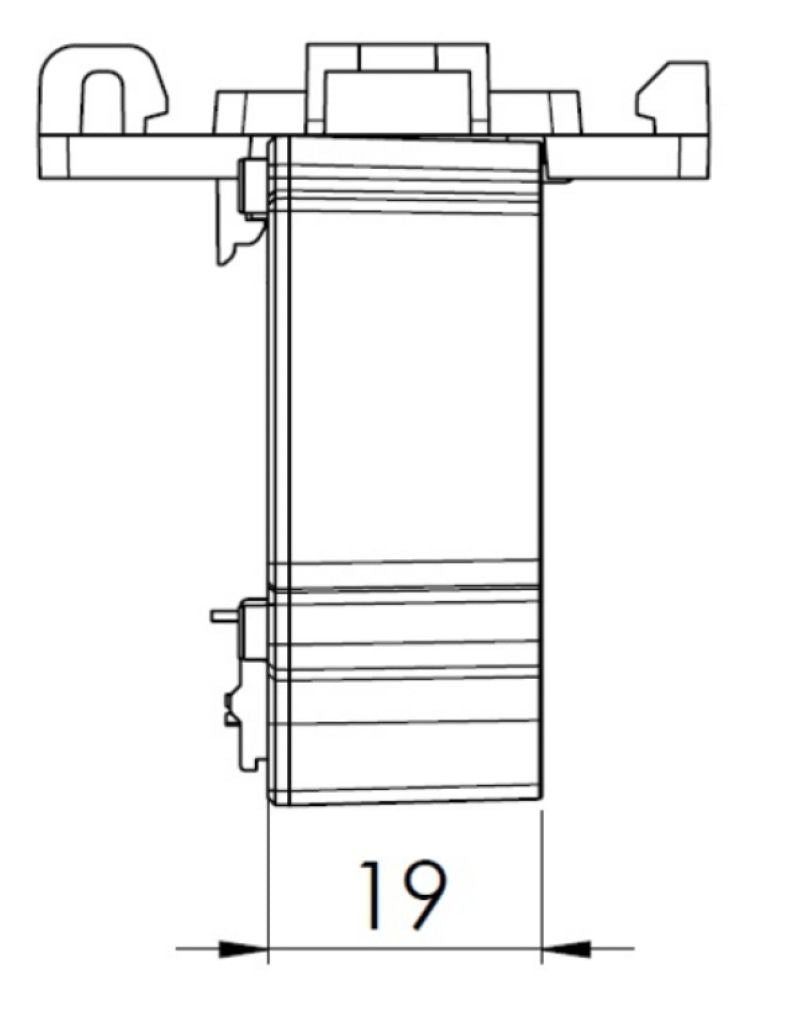

| Depth | 19 mm |

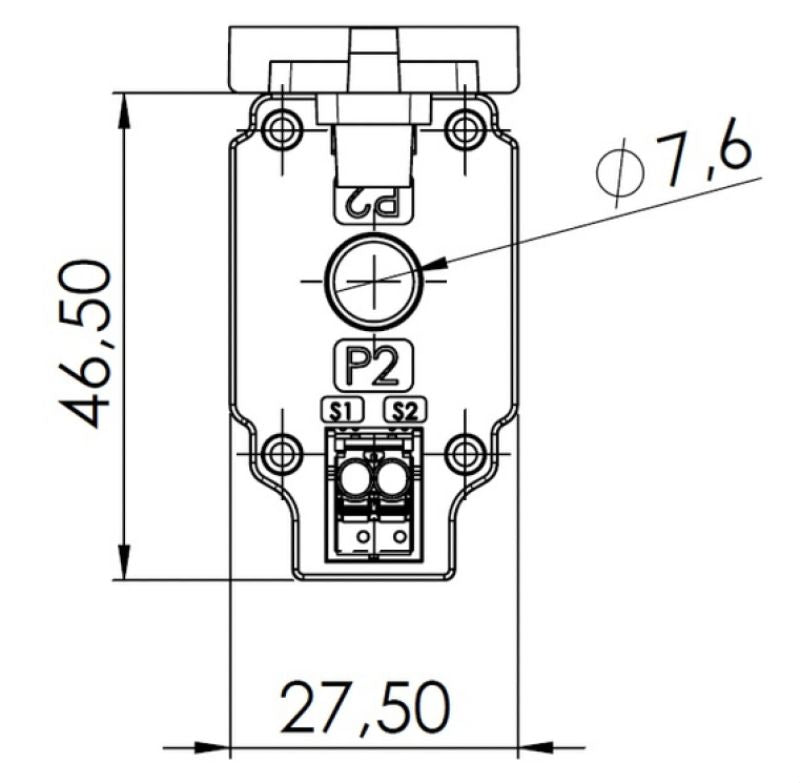

| Height | 46.5 mm |
| Width | 27.5 mm |
| Storage temperature | -25 °C to 70 °C |
| Operating temperature | -5 °C to 50 °C |
| Load | 0.3 VA |
| Primary current | 40 A |
| Secondary current | 0...1 A |
| Insulation class | E |
| Nominal frequency | 50 Hz |
| Insulation coordination | IEC 61869-1: 2007, IEC 61869-2: 2012 |
| Tolerance class | 1 |
