Description:

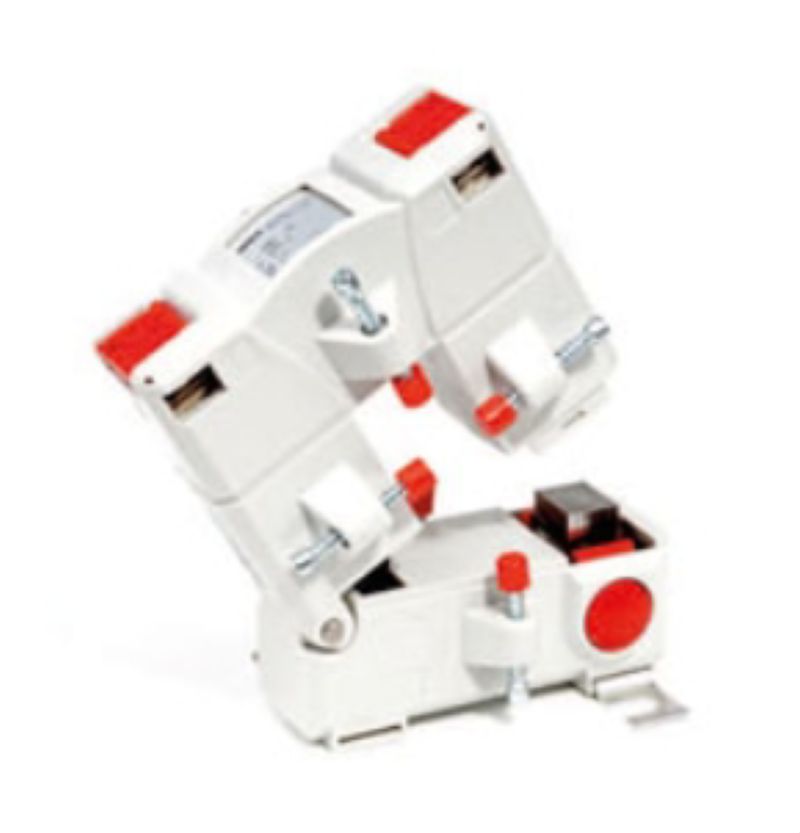

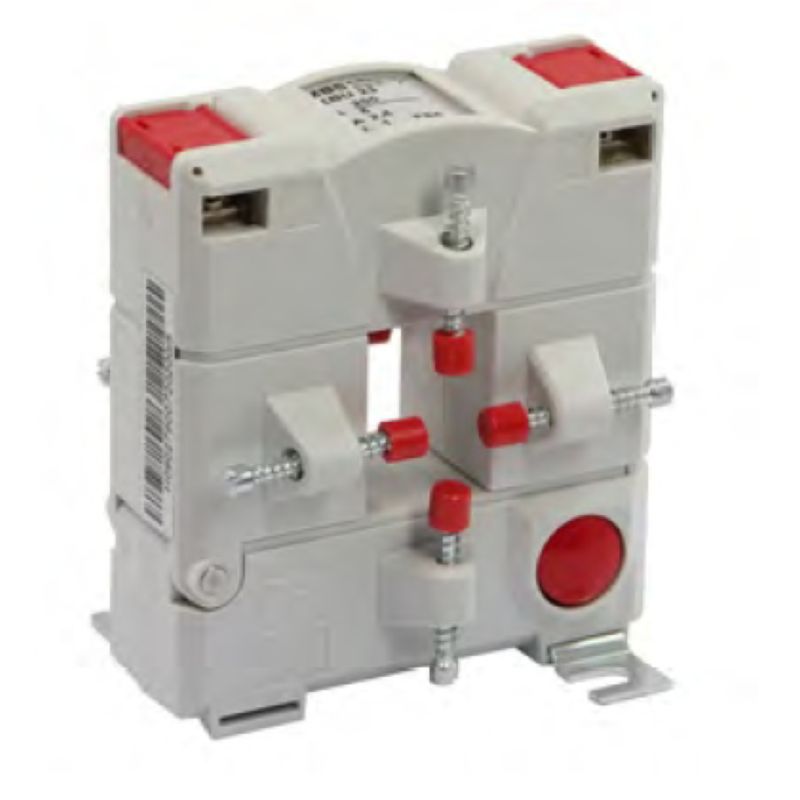

Introducing the KCMA-RCM-23D, an advanced split-core residual current transformer (RCM) engineered for accurate measurement capabilities This device supports a primary current of 18 A and can easily accommodate a round conductor measuring 20 mm in diameter Compliant with RoHS standards, it is free from any SVHC substances exceeding 01 wt%, ensuring safety and reliability Specifically designed for indoor applications, this transformer efficiently measures residual current within a frequency range of 30 to 1000 Hz.
Additionally, it boasts a primary conductor temperature threshold of 70 °C, making it a dependable choice for various electrical monitoring needs.
Features and Benefits:
•Suitable for indoor installation.
•Compliant with RoHS and does not contain SVHC above limits.
•Operates in a frequency range of 30-1000 Hz.
Specifications:
| Operating Temperature | -5 °C...45 °C |

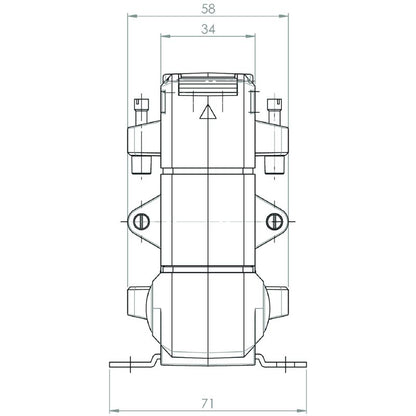

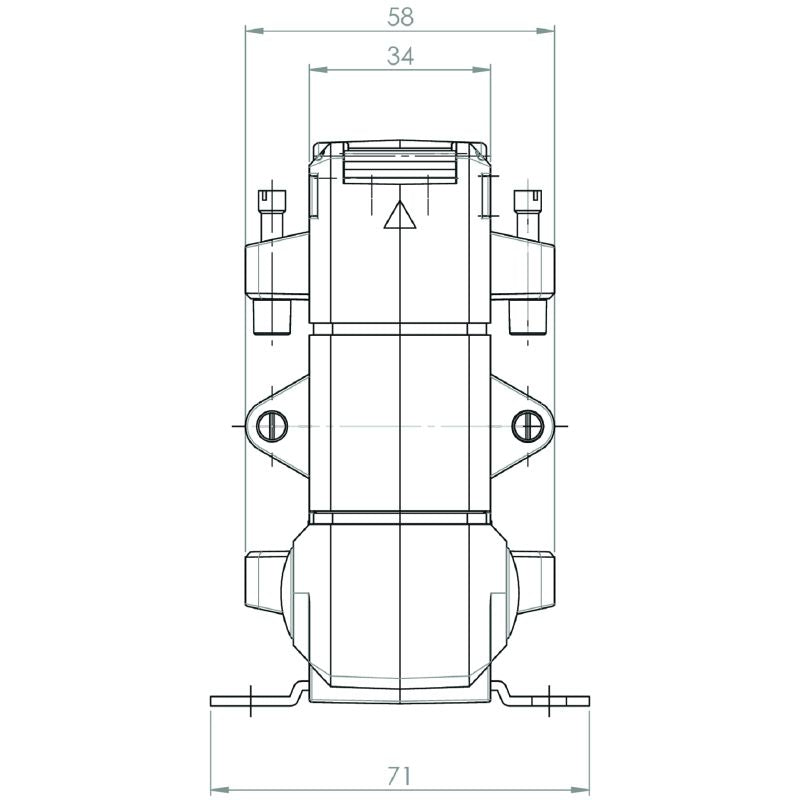

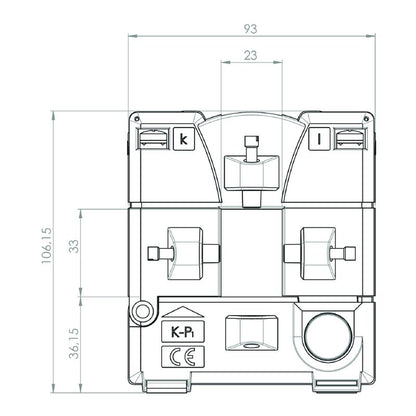

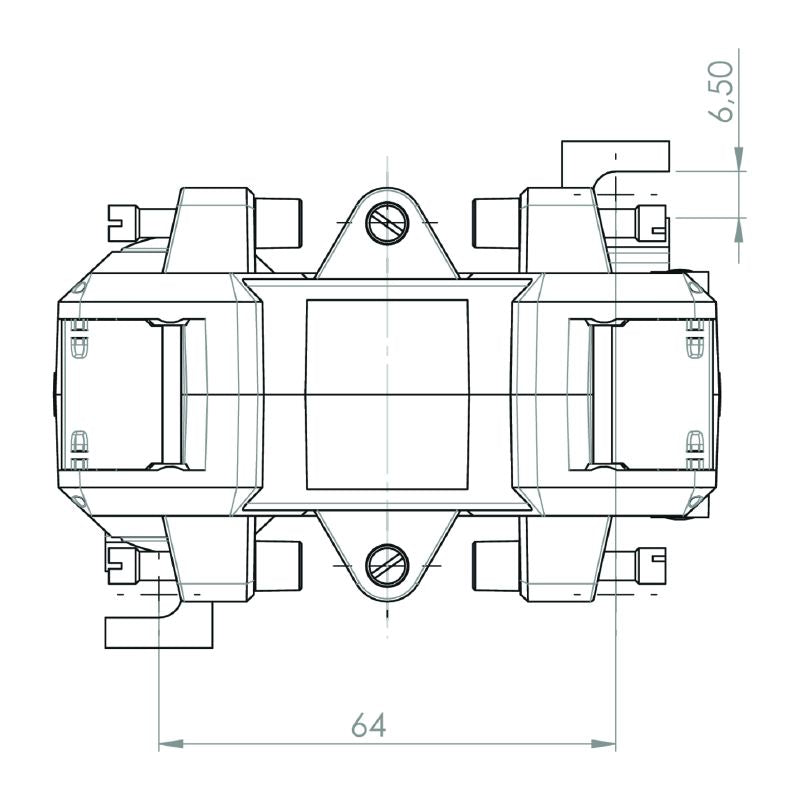

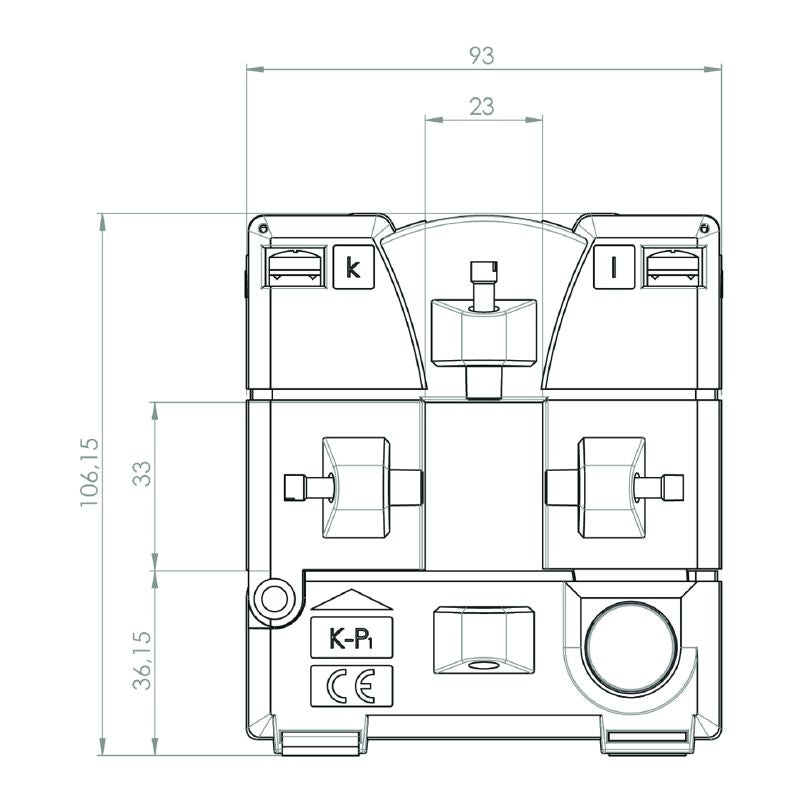

| Dimensions | {'Depth': '106 mm (4.173 inch)', 'Width': '58 mm (2.283 inch)', 'Length': '93 mm (3.661 inch)'} |
| Primary Current | 18 A |
| Secondary Current | 0...0.04 A |
| Transmission Ratio | 1:600 |
| Insulation Class | E |
| Protection Degree | IP20 |
| Nominal Frequency | 50 Hz |
| Thermal Rated Continuous Current | 60 x I |
| Insulation Coordination | Standard EN 60044/1 |
| Tolerance Class | 1 |
| Type of Conductor | Insulated conductor only |
| Round Conductor | 20 mm |
| Rail | 20 x 30 mm |
