2753210000 - 800A Split-Core Transformer, 67mm x 96mm, Class 0.5
2753210000 - 800A Split-Core Transformer, 67mm x 96mm, Class 0.5
SKU: SKU: 2753210000 Download PDF
- 2753210000 - 800A Split-Core Transformer, 67mm x 96mm, Class 0.5
- 2753210000 - 800A Split-Core Transformer, 67mm x 96mm, Class 0.5
Couldn't load pickup availability
*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color
Description:

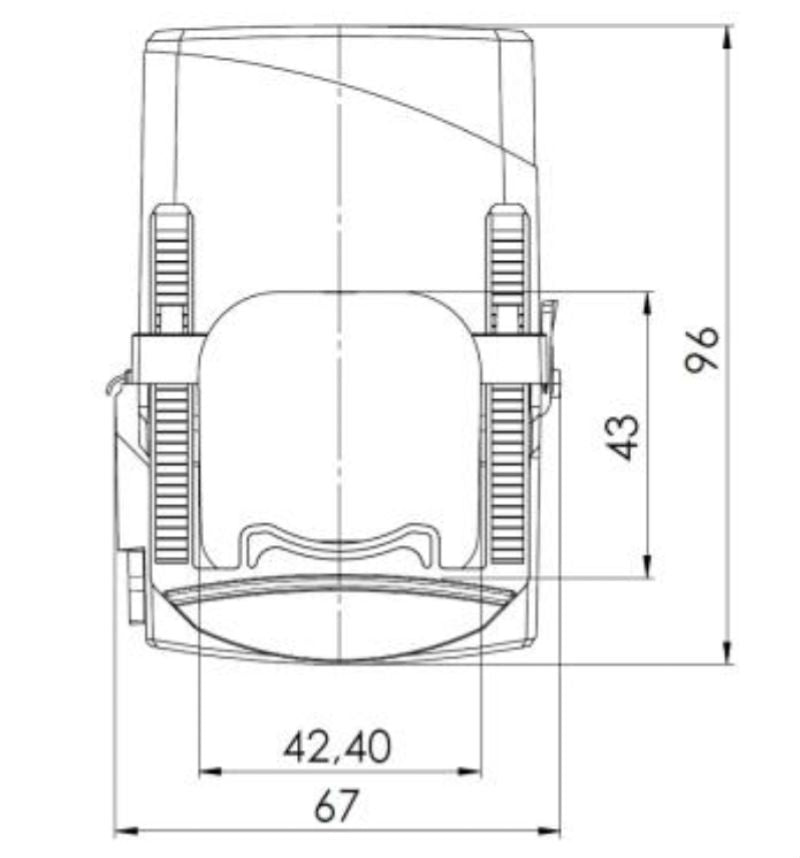

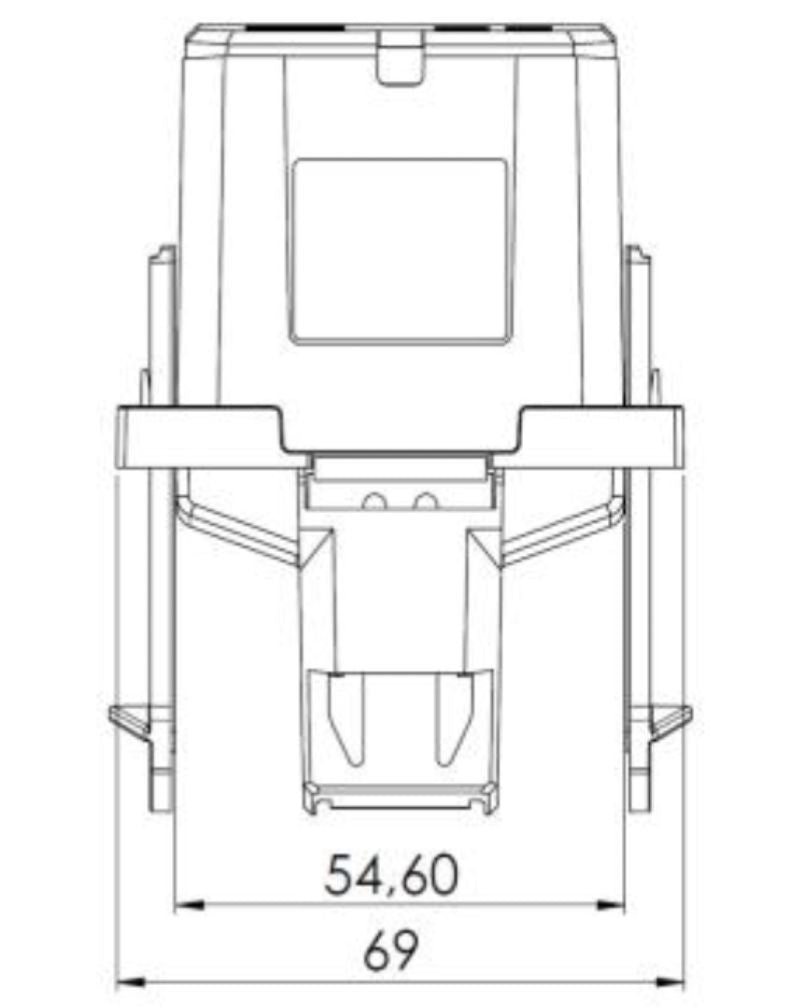

Introducing a precision-engineered split-core current transformer, ideal for accurate current measurements With a primary current capacity of 800 A and a secondary current peak of 1 A, this transformer operates under a load of 25 VA and is rated within tolerance class 05 It is compliant with RoHS standards, making it suitable for indoor applications Compact in design, it measures 67 mm in width, 96 mm in height, and 69 mm in depth, weighing in at 540 g.
Features and Benefits:
•RoHS compliant.
•Designed for indoor use.
•Precision tolerance class 0.5.
•Current measurement in electrical systems.
Specifications:
| Primary current | 800 A |
| Secondary current | 0...1 A |
| Load | 2.5 VA |
| Tolerance class | 0.5 |
| Depth | 69 mm |
| Height | 96 mm |
| Width | 67 mm |
| Net weight | 540 g |
| Operating temperature | -5 °C to 50 °C |
| Protection degree | IP20 |
| Cable length | 0.5 m |
| Installation location | Indoor use |
