Description:

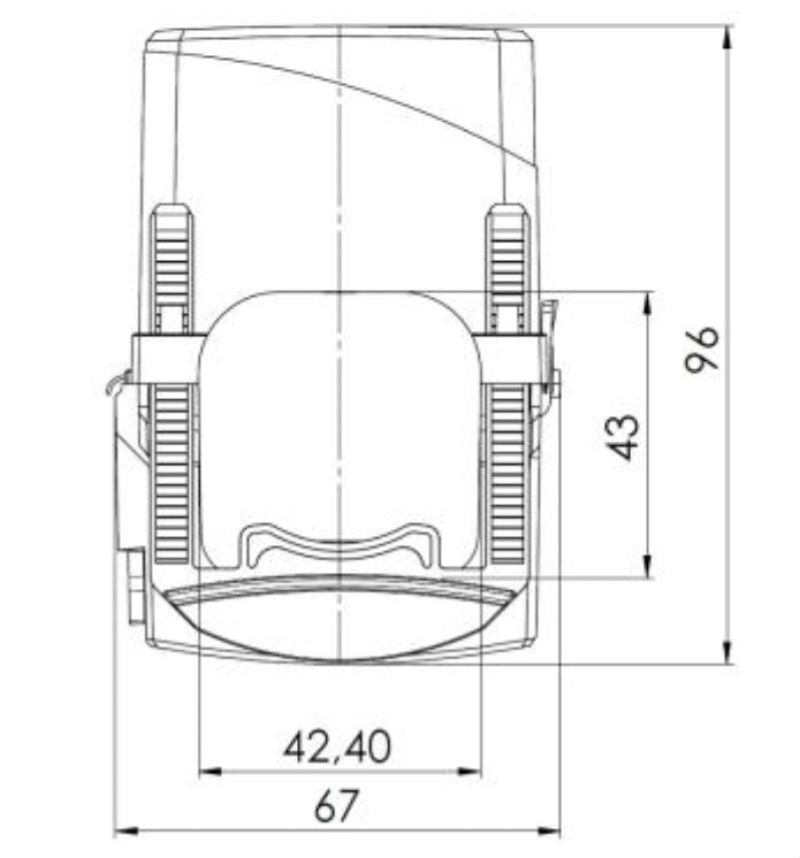

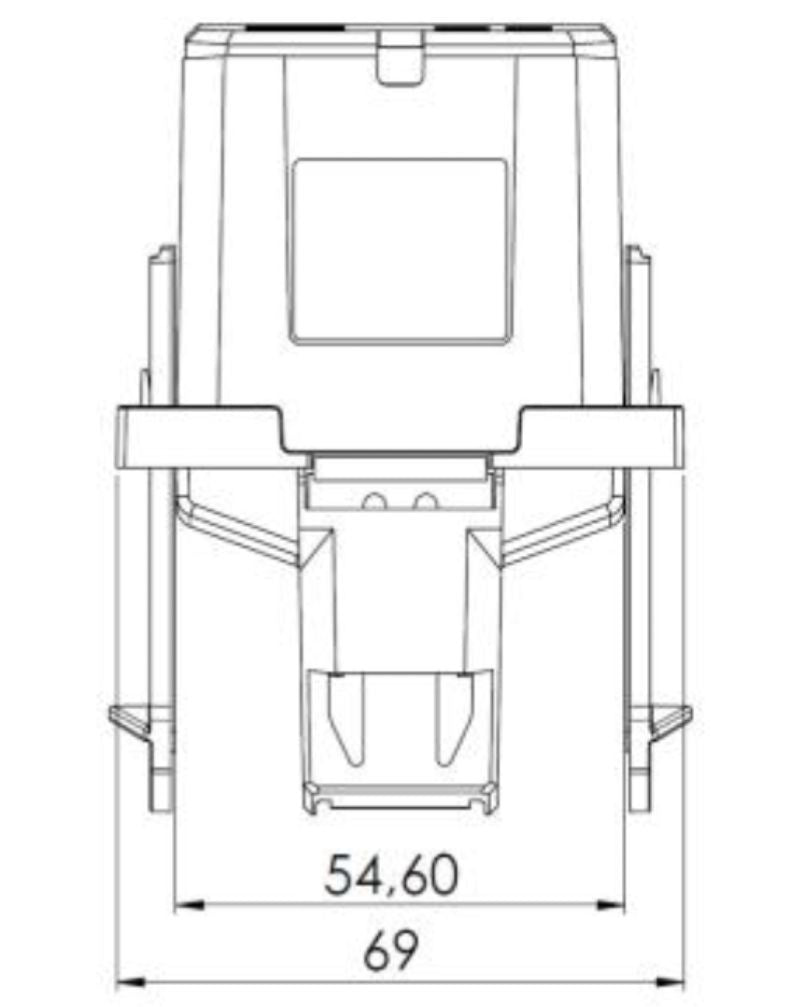

Introducing a reliable split-core current transformer, specifically engineered for indoor applications This model accommodates a primary current of 1000 A, with a maximum secondary output of 5 A and a load capacity reaching 25 VA Complying with RoHS standards, it ensures safety and environmental responsibility The compact dimensions include a depth of 69 mm, height of 96 mm, and width of 67 mm (approximately 2.
717 inches, 378 inches, and 2638 inches, respectively) Weighing in at 540 g, this transformer operates efficiently in a temperature range from -5 °C to 50 °C and offers an IP20 protection level, making it a robust choice for your current measurement needs.
Features and Benefits:
•Indoor use only.
•RoHS compliant.
•Easy installation with insulated conductors.
•Split-core design allows for easy retrofitting.
Specifications:
| Primary current | 1000 A |
| Secondary current max. | 5 A |
| Load | 2.5 VA |
| Tolerance class | 0.5 |
| Depth | 69 mm |
| Height | 96 mm |
| Width | 67 mm |
| Operating temperature | -5 °C...50 °C |
| Protection degree | IP20 |
| Cable length | 0.5 m |
| Manufacturer | MBS AG |
| Environmental Product Compliance | Compliant without exemption |
| REACH SVHC | No SVHC above 0.1 wt% |
