Description:

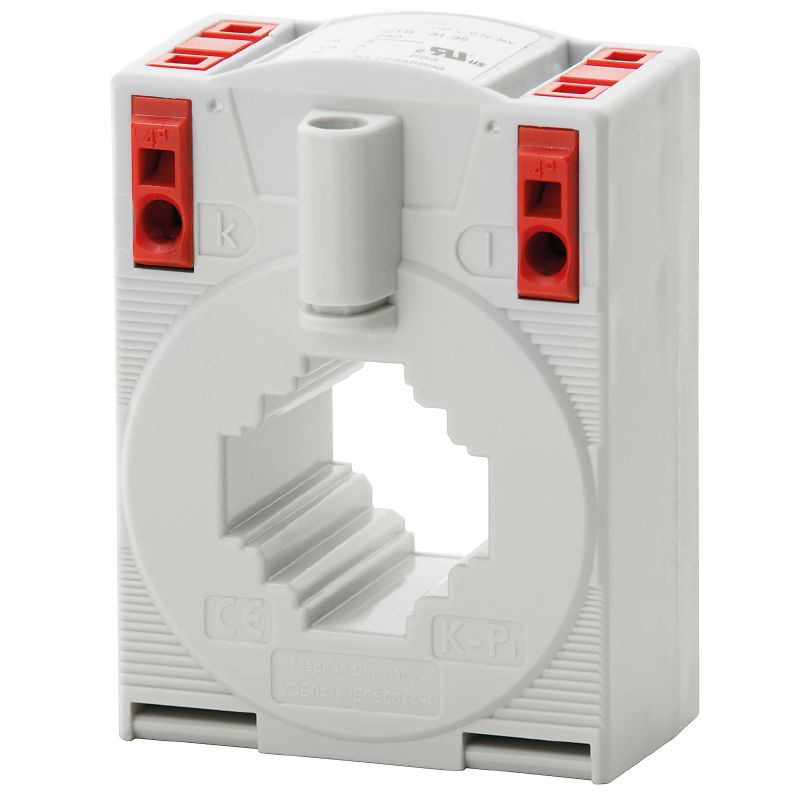

Introducing the CMA-31-100-5A-2,5VA-1, a compact closed current transformer ideal for indoor applications This device offers a primary current capacity of 100 A and supports a secondary current of up to 5 A, with a load rating of 25 VA It boasts a tolerance class of 1 and meets RoHS standards, ensuring safety and compliance Designed to function effectively in environments with temperatures from -5 °C to 50 °C, it can also be stored safely at temperatures ranging from -25 °C to 70 °C, making it a reliable choice for a variety of settings.
Features and Benefits:
•Compliant with RoHS regulations.
•Suitable for indoor use.
•Operates within a temperature range of -5 °C to 50 °C.
•Closed current transformer structure.
•Insulation class E.
Specifications:
| Primary current: | 100 A |
| Secondary current: | 0...5 A |
| Load: | 2.5 VA |

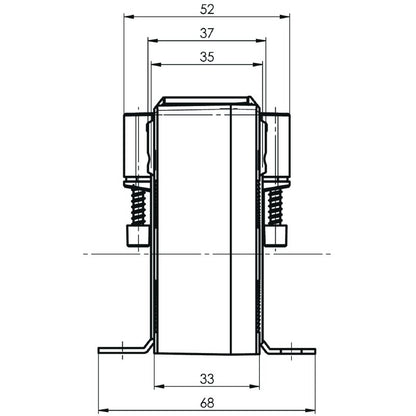

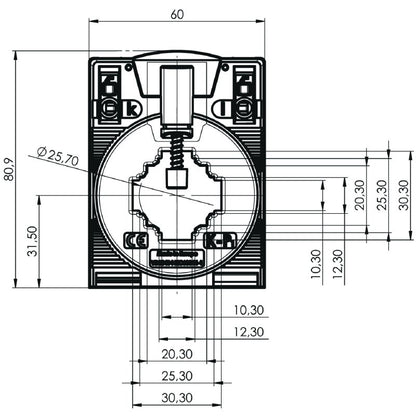

| Depth: | 52 mm |
| Height: | 80.9 mm |
| Width: | 60 mm |
| Insulation coordination: | IEC 61869-1: 2007, IEC 61869-2: 2012 |
| Nominal frequency: | 50 Hz |
| Tolerance class: | 1 |
| Thermal rated continuous current I thermal: | 1.2 x I rated |
| Type of conductor: | Insulated conductor only |
| Round conductor: | 25.7 mm |
| Rail: | 20 x 20 mm, 25 x 12 mm, 30 x 10 mm |
